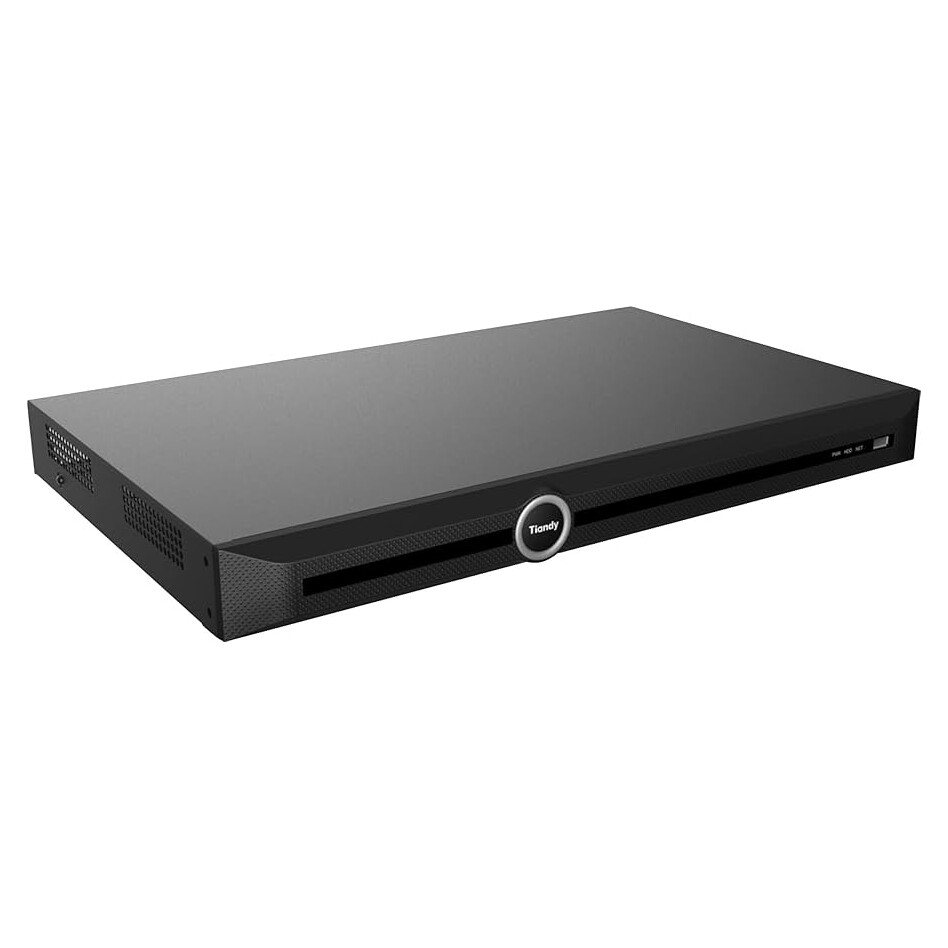

Tiandy 20-Channel 8MP (4K) Lite NVR | 2 SATA Bays | Alarm I/O | TC-R3220
₹11,328.00₹14,727.00 inc.GST (-23%)
Tiandy 20-Channel 4K Network Video Recorder
- 📹 Massive 20-Channel Input: Manage and record up to 20 individual IP cameras from a single, centralized recording hub.
- 🎯 8MP 4K Recording: High-performance architecture supports ultra-HD cameras up to 8 Megapixels for maximum forensic clarity.
- 💾 Dual SATA HDD Bays: Features 2 hard drive slots, significantly expanding your video retention history.
- ⚡ 160Mbps High Bandwidth: Robust data processing capabilities ensure smooth, lossless recording across the entire network.
- 🔔 Alarm I/O Integration: Includes 4 Alarm Inputs and 1 Alarm Output to seamlessly connect to external sirens and building alarm panels.
- 🤝 Warranty: 2-Year Manufacturer Warranty backed by BuyCCTVs remote IT assistance.
Product details
🛡️ TIANDY 20-CHANNEL 8MP LITE NVR
20 IP Channels • 2 SATA Bays • Physical Alarm I/O
High-Capacity Network Recording with Expanded Storage
When your surveillance needs expand to cover mid-to-large scale facilities, you require a recorder with serious capacity and connectivity. The Tiandy 20-Channel 8MP Lite NVR (TC-R3220) offers the perfect bridge to high-density monitoring. This robust network video recorder acts as the central brain for up to 20 individual IP cameras. It does not compromise on quality for quantity, fully supporting Ultra-HD resolutions up to 8 Megapixels (4K). This guarantees that whether you are monitoring a sprawling parking lot or dozens of interior office hallways, every frame is captured with the highest possible pixel density for unquestionable forensic identification.
Recording 20 high-definition streams simultaneously consumes significant storage space, which is why the TC-R3220 is upgraded with Dual SATA HDD Bays. By supporting two independent hard drives, you can double your retention history compared to standard 1-bay models, meeting strict corporate compliance rules for video archiving. The backbone of this performance is a massive 160Mbps incoming bandwidth, functioning as a high-speed data highway. Furthermore, this NVR features dedicated Alarm I/O ports (4 In / 1 Out), allowing integrators to link the digital surveillance grid to the building’s physical security hardware.
🔔 Physical Alarm Integration
Move beyond simple push notifications. The built-in 4 Alarm Inputs and 1 Alarm Output allow you to physically connect the NVR to your environment. Wire a magnetic door contact to the input to instantly trigger a specific camera to record. Wire the output to an external siren to sound a blaring alarm the moment your AI cameras detect a perimeter breach.
🖥️ Advanced Decoding Matrix
The internal graphics engine is built for heavy lifting. It can decode and playback 2 channels at 8MP, 8 channels at 1080p, or 16 channels at 720p simultaneously on your local monitor. Connect a large TV via the HDMI port and a secondary PC monitor via VGA to maintain total, real-time command over your 20-camera matrix.
🤝 Why Choose BuyCCTVs.com?
We are your dedicated security partners. Purchasing from BuyCCTVs.com guarantees you receive authentic, top-tier Tiandy hardware. We go beyond the box—our expert technical team provides dedicated post-sales remote assistance, ensuring your network IPs are configured correctly, your Alarm I/O rules are fully integrated, and your system is perfectly bound to your mobile apps for worldwide remote viewing.
🛡️ Warranty & Support
Your investment is protected by a 2-Year Manufacturer Warranty.
Support Structure: We provide comprehensive remote guidance for configuration and app troubleshooting. Note: Local technicians are required for physical installation. BuyCCTVs services the product; onsite labor depends on location (charges apply). If a defect occurs, send the product to our service center, and we will aggressively follow up with the brand for ASAP repair or replacement.
📊 Technical Specifications
- ✅ Model: TC-R3220 (Lite-K Series)
- ✅ Camera Input: 20 IP Channels
- ✅ Max Recording: Up to 8MP (4K)
- ✅ Bandwidth: 160Mbps In / 64Mbps Out
- ✅ Decoding: 2×8MP / 8×1080p / 16×720p
- ✅ Video Output: 1x HDMI, 1x VGA (Simultaneous)
- ✅ Storage: 2x SATA HDD Bays
- ✅ Alarm Interface: 4-Ch Input / 1-Ch Output
