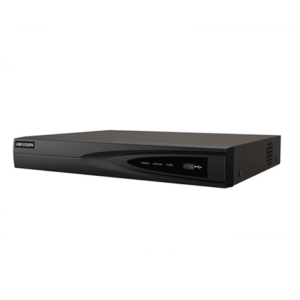

Hikvision 4ch Acusense NVR DS-7604NXI-K1

Product details

Intelligent Analytics

• AI by Device Facial recognition, perimeter protection, motion detection 2.0
• AI by Camera Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition

• Face Attributes N/A
• Facial Detection and Analytics Face picture comparison, human face capture, face picture search
• Face Picture Library Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB);Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance 1-ch, 4 MP;1-ch, 8 MP
• Face Picture Comparison 2-ch

Motion Detection 2.0

• By Device All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
• By Camera All channels

Perimeter Protection

• By Device 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• By Camera All channels

Video and Audio

• IP Video Input 4-ch
• Incoming Bandwidth 40 Mbps
• Outgoing Bandwidth 80 Mbps
• HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode HDMI1/VGA simultaneous output
• CVBS Output N/A
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format 265/H.265+/H.264+/H.264
• Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback 4-ch
• Decoding Capability

AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

• Stream Type Video, Video & Audio
• Audio Compression 711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Remote Connection 128
• API ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA 1 SATA interface
• Capacity Up to 10 TB capacity for each HDD
• USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out 4/1;N/A;N/A (4/1 is optional)

General

• GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply 12 VDC, 1.5 A
• Consumption ≤ 10 W (without HDD)
• Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity 10% to 90%
• Dimension (W × D × H) 320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
• Weight ≤1 kg (without HDD, 2.2 lb.)

Certification

• CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS;CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA
