Product details
CP PLUS SECURITY & CONNECTIVITY

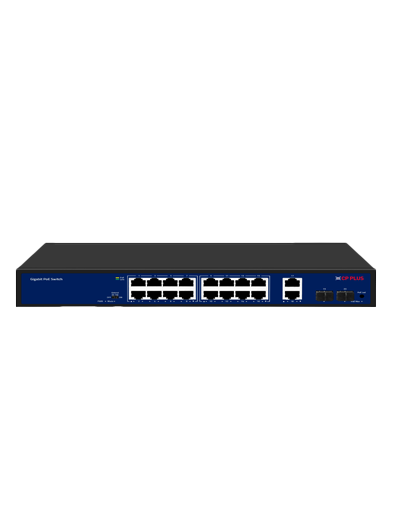

CP-DNW-GPU16G2F2-20 — 16 Port Gigabit Unmanaged PoE Switch with 2 Gigabit Uplink & 2 SFP Ports
Official-model specifications organised for clear product selection and project planning.
Product overview
The CP-DNW-GPU16G2F2-20 is a CP PLUS 16 Port Gigabit Unmanaged PoE Switch with 2 Gigabit Uplink & 2 SFP Ports. This page combines the current official model data with practical buying guidance, making it easier to compare the required performance, interfaces and installation needs.
Feature 1
16 × RJ-45 10/100/1000 Mbps (PoE) Ports, 2 × RJ-45 Gigabit (Uplink) Ports, 2 × Gigabit SFP Uplink Ports.
Feature 2
Extended transmission mode up to 250m at 10 Mbps (Ports 9–16).
Feature 3
Networking standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x.
Feature 4
PoE Power Budget: 200W (Max 30W per port).
Feature 5
Switching Capacity: 40 Gbps (Full-duplex).
Feature 6
Easy and safe installation: plug-and-play, desktop design.
Technical specifications
| Model | CP-DNW-GPU16G2F2-20 |
|---|---|
| Network Port | 20 Ports |
| PoE Ports | 16, 10/100/1000Mbps, RJ45 ports, Max. 30W Output of Single PoE Port |
| Uplink Ports | 2, 1000Mbps RJ45 ports & 2 Gigabit SFP ports |
| Network Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE802.3x |
| Power Indicator | Light on: Powering / Light off: No Power |
| Mode Indicator | Light off: Normal mode / Flash: Extend mode |
| 1-20 Indicator (Link & Data) | Green light off: Link is disconnected / Green light on: Link is connected / Green light flash: Data Transmitting |
| 1-16 Indicator (PoE) | Yellow light off: PoE not powering / Yellow light on: PoE powering |
| PoE Max Indicator | Light off: Indicates PoE power usage is less than 90% / Light flash: Indicates PoE power usage 90%≤P≤95% / Light on: Indicates PoE power usage 95% |
| PoE Led Button | It is used to switch whether the 1-16 indicator lights indicate the Link/Data status or the PoE / status, Default indicates Link/Data status |
| Extend Switch | OFF: All ports can communicate with each other, the transmission rate is 10/100/1000Mbps / adaptive, and the watchdog function is turned off / ON: 9-16 ports can extend the transmission distance of the network cable to Max. 250 meters, / the transmission rate becomes 10Mbps, and the watchdog function is turned on |
| Switch Capacity | 40Gbps Full duplex |
| Packet Forwarding Rate | 29.76Mpps |
| Packet Buffer | 3Mb |
| Forwarding Mode | Store-and-forward |
| MAC Address Table | 8K |
| Watchdog | Support |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| PoE Power Supply | 1/2(+), 3/6(-) |
| Transmission Distance | 0-100m/1000Mbps or Port 9-16 Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| PoE Feature | All ports support MDI/MDIX |
| Power Source | Built-in Power Supply / Input: 110-240V AC, 50/60Hz |
| PoE Power Budget | 200W |
| ESD | Air discharge: 8KV / Contact discharge: 6KV |
| Surge Protection | Common mode/RJ45 port: 4KV / Differential mode/RJ45 port: 2KV / Common mode/Power board: 4KV / Differential mode/Power board: 2KV |
| Operating Temperature | -10°C ~50°C |
| Operating Humidity | 10%-95%, Non-condensing |
| Storage Temperature | -40°C~70°C |
| Dimensions | 320mm x 207mm x 44mm |
| Weight | 1780g |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, / FCC and RoHS, TEC/ MTCTE |
Buying and installation guidance
Plan the total PoE budget, per-port requirement, uplink capacity and cable distance before ordering. Use standards-compliant Cat5e/Cat6 cabling, allow ventilation and confirm whether managed functions or SFP modules are required.
Frequently asked questions
Is this the exact CP-DNW-GPU16G2F2-20 model?
Yes. The SKU, specifications and images on this page were matched against the current CP PLUS official model page.
What should be checked before purchase?
Confirm the required features, power arrangement, installation environment and compatibility with the rest of the system. Model suffixes can represent important hardware differences.
Are accessories included?
Only items explicitly stated by the manufacturer or order description are included. Storage, cables, power supplies, mounts, SFP modules and other accessories may be sold separately.
Technical reference: CP PLUS official CP-DNW-GPU16G2F2-20 page. Verify critical project specifications before purchase.
Additional information
| Brand | CP PLUS |
|---|---|
| Model Number | CP-DNW-GPU16G2F2-20 |
