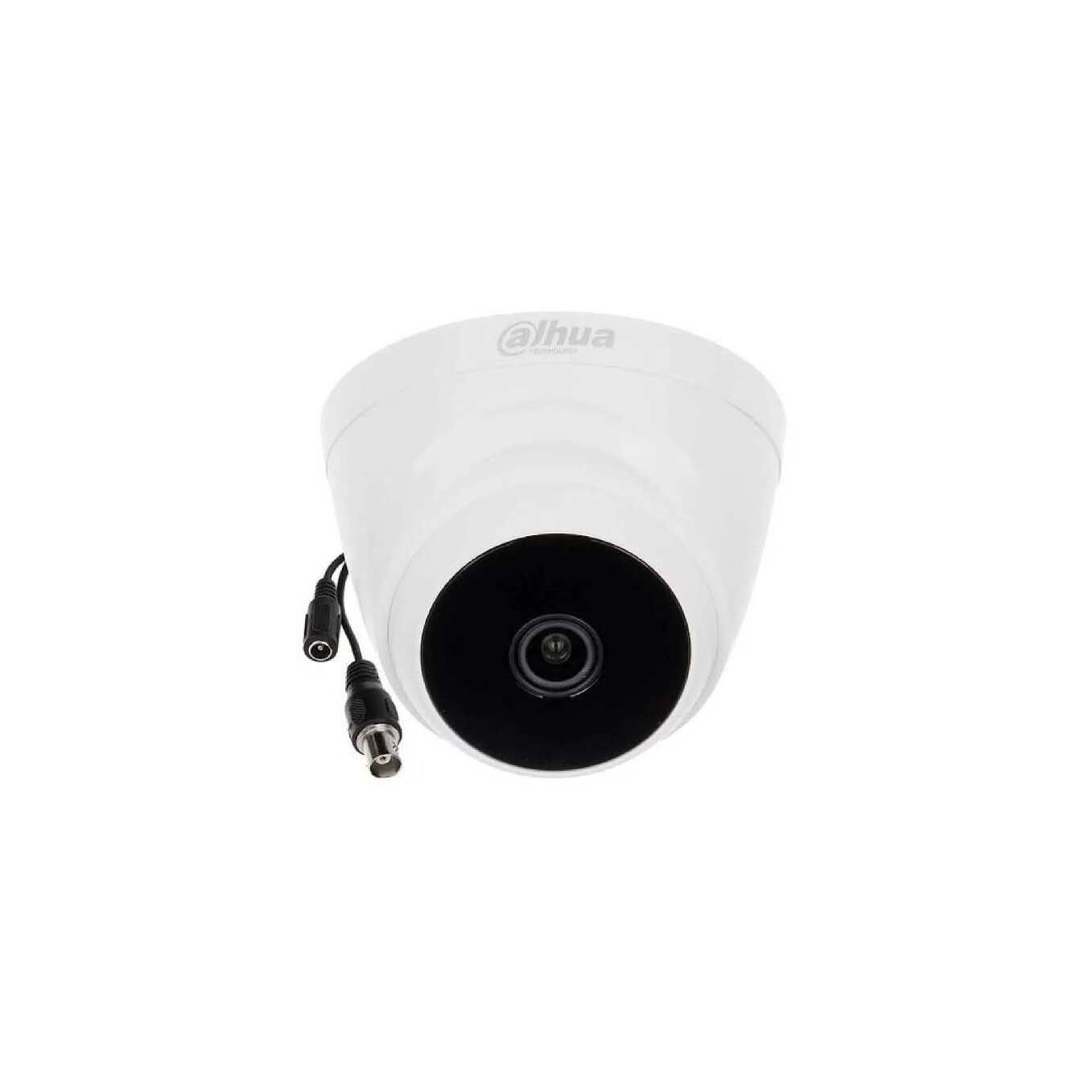

Dahua 1MP Dome DH-HAC-T1A11P HD Camera
₹796.50₹810.00 inc.GST (-2%)
DH-HAC-T1A11P
1MP HDCVI IR Eyeball Camera
> Max. 25/30fps@720P
> HD and SD output switchable
> 2.8mm fixed lens (3.6mm optional)
> Max. IR length 20 m, Smart IR
> 12 VDC
Product details
| Camera | |||||||||||||
| Pixel | 1 MP | ||||||||||||
| Image Sensor | 1/2.7″ CMOS | ||||||||||||
| Max. Resolution | 1280(H)×720(V), 1MP | ||||||||||||
| Scanning System | Progressive | ||||||||||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s | ||||||||||||
| NTSC: 1/30 s–1/100,000 s | |||||||||||||
| Min. Illumination | 0.04Lux/F2.4, 30IRE, 0Lux IR on | ||||||||||||
| S/N Ratio | >65 dB | ||||||||||||
| Illumination Distance | 20 m (65.62 ft) | ||||||||||||
| Illuminator On/Off Control | Auto/Manual | ||||||||||||
| Illuminator Number | IR light | ||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||||||||||
| Tilt: 0°–78° | |||||||||||||
| Rotation: 0°–360° | |||||||||||||
| Lens | |||||||||||||
| Lens Type | Fixed-focal | ||||||||||||
| Lens Mount | Board-in | ||||||||||||
| Focal Length | 2.8mm(3.6mm optional) | ||||||||||||
| Max. Aperture | F2.4 | ||||||||||||
| Field of View | H: 93°(57.6°) V: 48°(32°) | ||||||||||||
| Iris Control | Fixed | ||||||||||||
| Close Focus Distance | 800mm 31.50” | ||||||||||||
| DORI Distance | Lens | Detect | Observe | ||||||||||
| 2.8 mm | 51m(167ft) | 20m(66ft) | |||||||||||
| 3.6 mm | 51m(167ft) | 20m(66ft) | |||||||||||
| Recognize | Identify | ||||||||||||
| 10m(33ft) | 5m(17ft) | ||||||||||||
| 10m(33ft) | 5m(17ft) | ||||||||||||
| Video | |||||||||||||
| Video Frame Rate | 25/30fps@720P | ||||||||||||
| Resolution | 720P (1280×720) | ||||||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||||||
| BLC | BLC; HLC; DWDR | ||||||||||||
| WDR | DWDR | ||||||||||||
| White Balance | Auto / Manual | ||||||||||||
| Gain Control | Auto/Manual | ||||||||||||
| Noise Reduction | 2D NR | ||||||||||||
| Smart Illumination | Auto / Manual | ||||||||||||
| Mirror | Yes | ||||||||||||
| Privacy Masking | Off/On (8 areas, rectangle) | ||||||||||||
| Certification | |||||||||||||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||||||||||||
| Port | |||||||||||||
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | ||||||||||||
| Power | |||||||||||||
| Power Supply | 12 VDC ± 30% | ||||||||||||
| Power Consumption | Max. 2.3 W (12 VDC, IR on) | ||||||||||||
| Environment | |||||||||||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) | ||||||||||||
| Operating Humidity | <95% (RH), non-condensing | ||||||||||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||
| Protection | NA | ||||||||||||
| Structure | |||||||||||||
| Casing | Plastic | ||||||||||||
| Product Dimensions | 85mm×85mm×69mm(3.35″×3.35″×2.72″) | ||||||||||||
| Packaging Dimensions | 164 mm × 79 mm × 90 mm (6.46″ × 3.11″ × 3.54″) | ||||||||||||
| Net Weight | 0.09kg (0.20lb) | ||||||||||||
| Gross Weight | 0.13kg (0.27lb) | ||||||||||||
| Installation | Wall mount; ceiling mount; horizontal pole mount | ||||||||||||
