Hikvision DS-1LH1SCAM593C 180M 1+3 Full Copper Cable

3,840.004,200.00 inc.GST (-9%)

In stock

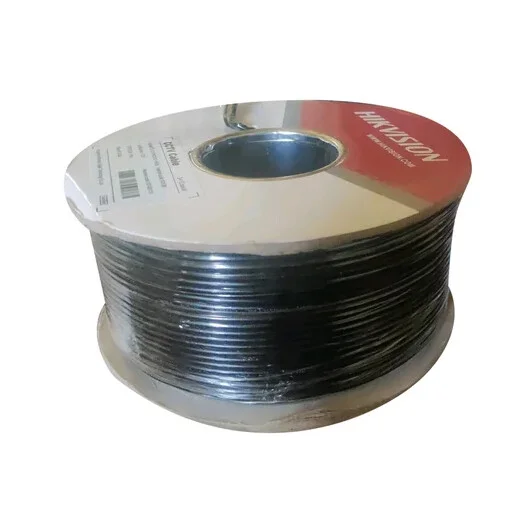

180 m Mini RG59 Coaxial Cable with Power Cable

  • 180 m reliable coaxial cable with power cables
  • Excellent transmission performance using solid copper
  • Power cable conductor material is bare copper
  • Full diameter and full length
  • High shielding performance via high braiding density

The Hikvision DS-1LH1SCA3C-090B 180M 1+3 Full Copper Cable is a high-quality cable designed for video surveillance installations. It features full copper construction for optimal signal transmission and a length of 180 meters. This cable is compatible with Hikvision and other brand cameras  provides reliable connectivity for your security system.

Coaxial Cable

  • Conductor Material Bare Copper
  • Conductor Wire Gauge 26AWG
  • Conductor Diameter 0.41 ± 0.01mm
  • Insulation Material Foam PE
  • Insulation Diameter 2.0 ± 0.1mm
  • Tape Material Aluminum foil
  • Tape Lapping bonded
  • Braid Materia Copper Clad Aluminum Magnesium
  • Braiding Standard 5*16*0.12±0.008mm
  • Braiding Density 80%
  • Impedance 75 ohms
  • Jacket Material PVC
  • Jacket Average Thickness ≥0.45mm

Power Cable

  • Conductor Material Bare Copper
  • Conductor Diameter0.41 ± 0.01mm;11*(0.16 ±0.01)mm
  • Insulation Material PVC(Red, Black,Yellow);Foam PE; PVC(Red, Black)
  • Insulation Diameter 1.2 ± 0.1mm;2.0 ± 0.1mm
  • Jacket Material PVC
  • Jacket Average Thickness ≥0.45mm

Siamese Cable General

  • Length 180m;
  • Diameter 3.5×7.0±0.3mm;3.5×7.2±0.3mm
  • Color Black
  • Operating Temperature-15~70ºC
  • Storage Temperature-15~70ºC
  • Dimensions ( L X W X H ) 210mm * 210mm * 103mm;260mm * 260mm * 120mm
