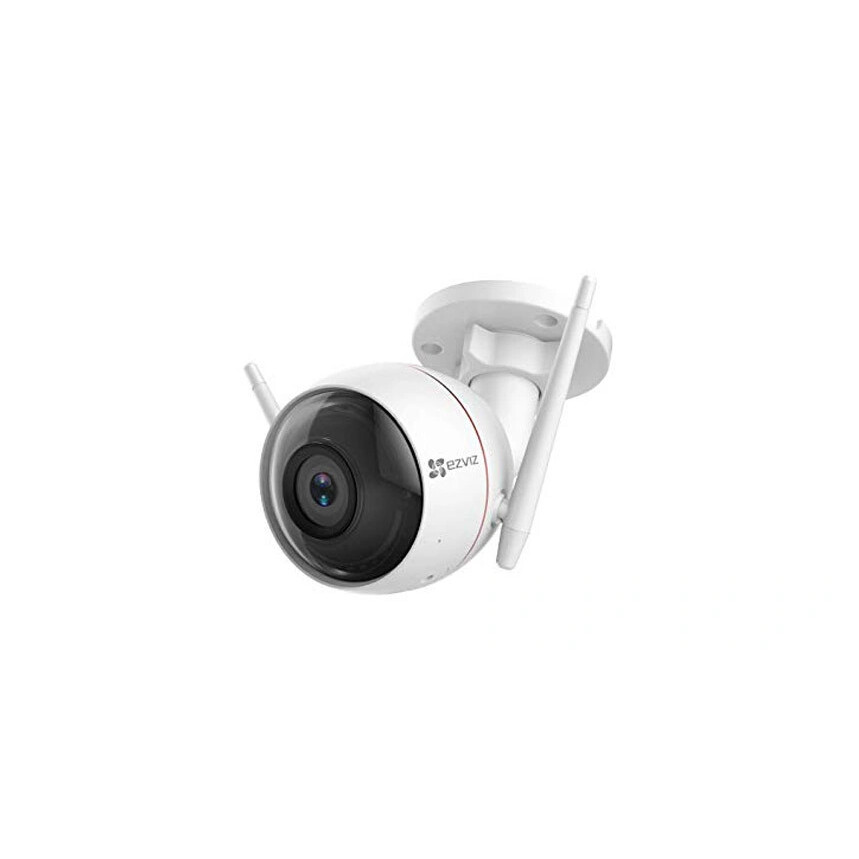

EZVIZ C3WN 2MP Outdoor Wi-Fi Wireless CCTV Camera

The EZVIZ C3WN Outdoor Wi-Fi Camera offers robust security features with high-definition video quality, ensuring your home or business is always protected. With its advanced motion detection, weatherproof design, and enhanced night vision, the C3WN is designed to provide reliable and comprehensive surveillance in any environment.

Key Features

• High-Resolution Imaging: The 1/2.9″ Progressive Scan CMOS sensor delivers crisp 1080p Full HD video, capturing every detail with clarity.
• Wide Viewing Angle: Choose between a 2.8mm lens with a 110° diagonal view or a 4mm lens with a 94° diagonal view for flexible monitoring options.
• Day & Night Monitoring: The IR-cut filter and powerful night vision capabilities allow the camera to see up to 30 meters (98.43 ft) in complete darkness.
• Smart Motion Detection: Receive instant alerts on your smartphone whenever motion is detected, ensuring you are always aware of any activity around your property.
• Weatherproof Design: With an IP66 rating, the C3WN is built to withstand harsh weather conditions, making it ideal for outdoor use.
• Secure Storage Options: Store footage locally with a microSD card (up to 256GB) or use EZVIZ Cloud for additional backup and remote access.
• Flexible Connectivity: Supports both wired (RJ45 Ethernet) and wireless (Wi-Fi) connections for easy installation and setup.
• Advanced Compression: H.264 video compression reduces bandwidth usage and storage requirements while maintaining high video quality.

Specifications

• Model: CS-CV310-A0-1C2WFR
• Image Sensor: 1/2.9″ Progressive Scan CMOS
• Minimum Illumination: 0.02 lux @(F2.0, AGC ON), 0 lux with IR
• Shutter Speed: Self-adaptive shutter
• Lens: 2.8mm @ F1.8, view angle: 95° (Horizontal), 110° (Diagonal) or 4mm @ F2.0, view angle: 81° (Horizontal), 94° (Diagonal)
• Lens Mount: M12
• Day & Night: IR-cut filter
• DNR: 3D DNR
• WDR: Digital WDR
• Video Compression: H.264 (Main profile)
• Video Bit Rate: Ultra-HD, HD, Standard. Adaptive bit rate
• Max. Resolution: 1920 x 1080
• Frame Rate: Max: 30fps; Self-Adaptive during network transmission
• Storage: Micro SD card (Max. 256GB)
• Wired Network: RJ45 × 1 (10M/100M Adaptive Ethernet Port)
• Smart Alarm: Motion detection
• Wi-Fi Pairing: AP pairing
• Protocol: EZVIZ Cloud proprietary protocol
• General Features: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
• Max. Bitrate: 2Mbps
• Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: Supports 20MHz
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
• Power Supply: DC 12V/1A
• Power Consumption: Max. 6W
• IP Grade: IP66
• IR Range: Max. 30 meters (98.43ft)
• Product Dimensions: 72mm x 72mm x 150mm (2.83 x 2.83 x 5.91”)
• Packaging Dimensions: 252mm x 110mm x 92mm (9.92 x 4.33 x 3.62”)
• Weight: 288g (0.63lbs)

Installation

Professional Installation Services: For optimal setup and performance, professional installation services are available at an additional cost.

In the Box

• EZVIZ C3WN Camera
• Quick Start Guide

The EZVIZ C3WN Outdoor Wi-Fi Camera combines advanced technology with user-friendly features, making it an ideal choice for securing your property with ease and reliability.
