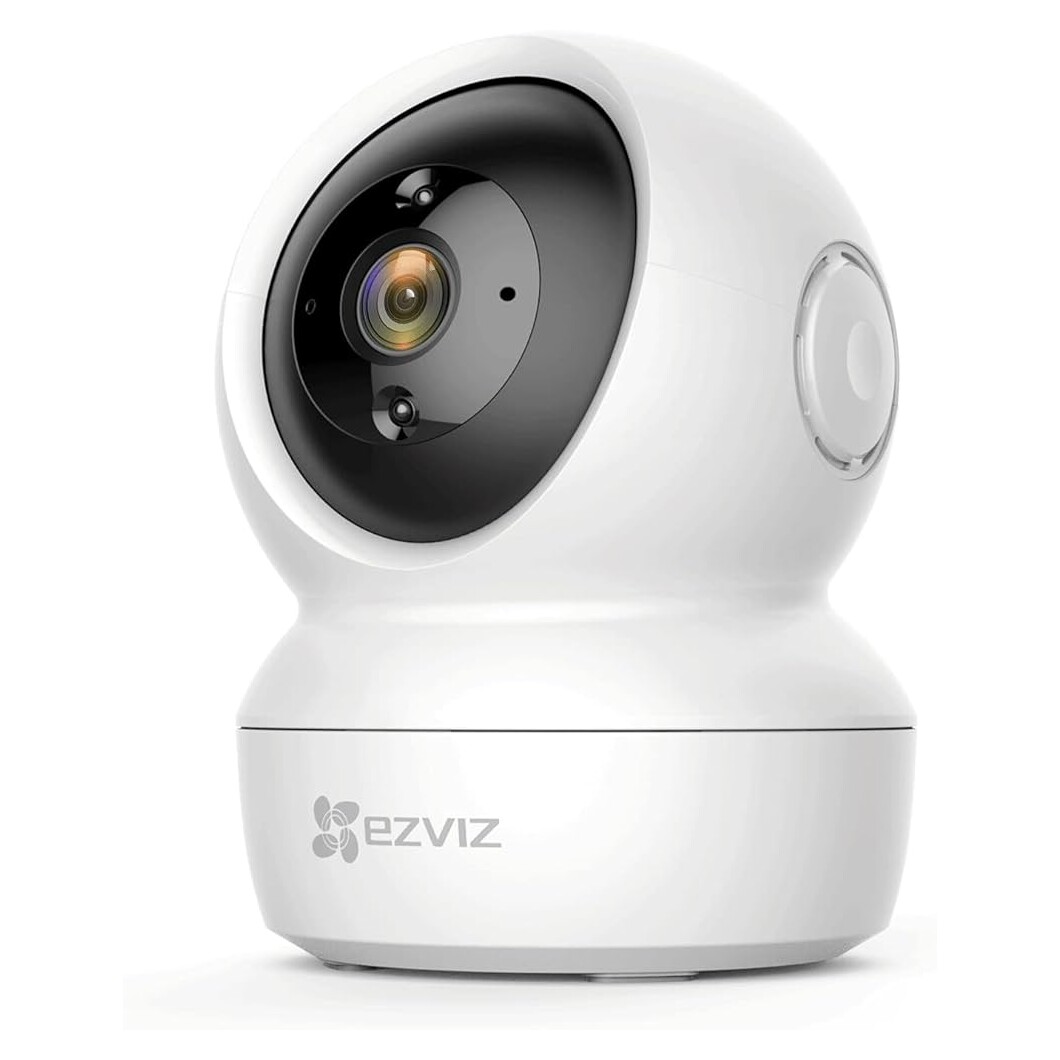

EZVIZ C6N 2MP Indoor Wi-Fi 360° Pan & Tilt Wireless CCTV Camera

The EZVIZ C6N 2MP Indoor Wi-Fi Pan & Tilt Camera offers comprehensive surveillance for your home or office. With its high-definition 2MP resolution, 360° visual coverage, smart IR night vision, and two-way communication, it ensures you never miss any important details. This camera is designed for easy installation and operation, with support for 2.4GHz Wi-Fi and up to 256GB of microSD card storage. Enjoy peace of mind with a 3-year warranty and optional professional installation services.

Key Features

High Definition Video

• 2MP – 1080p Resolution: Capture clear and detailed images with 2MP high-definition resolution.
• 360° Visual Coverage: The motorized pan and tilt functionality provide full 360° coverage, eliminating blind spots.

Smart IR Night Vision

• Smart IR (up to 10m / 33ft): Infrared LEDs provide clear night vision up to 10 meters, ensuring round-the-clock surveillance.

Two-Way Talk

• Built-In Speaker and Microphone: Enable real-time two-way communication with anyone in the camera’s vicinity.

Easy Installation and Setup

• Supports 2.4GHz Wi-Fi: Seamlessly connect the camera to your Wi-Fi network for easy setup and operation.
• MicroSD Card Support: Store your footage locally with support for microSD cards up to 256GB.

Warranty and Support

• 3-Year Warranty: Enjoy a comprehensive 3-year warranty on your EZVIZ C6N camera.
• Professional Installation Services: Optional professional installation services are available to ensure optimal setup and performance (price not included in this package).

Model Parameters

• Model: CS-C6N-A0-1C2WFR

Camera Specifications

• Image Sensor: 1/4″ Progressive Scan CMOS
• Shutter Speed: Self-adaptive shutter
• Lens: 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
• Lens Mount: M12
• Day & Night: IR-cut filter with auto-switching
• DNR: 3D DNR
• WDR: Digital WDR

Compression Specifications

• Video Compression: H.264
• Video Bit Rate: Full HD, HD, Standard. Adaptive bit rate

Image Specifications

• Max. Resolution: 1920 × 1080
• Frame Rate: Max. 15fps; Self-adaptive during network transmission

Network Specifications

• Smart Alarm: Motion detection
• Wi-Fi Pairing: AP Pairing
• Protocol: EZVIZ Cloud Proprietary Protocol
• Interface Protocol: EZVIZ Cloud Proprietary Protocol

Interface

• Storage: MicroSD card slot (Max. 256 GB)
• Power: Micro USB
• Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi Specifications

• Standard: IEEE802.11 b/g/n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: Supports 20MHz
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

General Specifications

• Power Supply: DC 5V/1A
• Power Consumption: 5W max
• IR Range: MAX. 10m (32.81 ft)
• Dimensions: 88 mm x 88.2 mm x 119 mm (3.46” x 3.47” x 4.69”)
• Packaging Dimensions: 103 mm x 103 mm x 168 mm (4.06” x 4.06” x 6.61”)
• Bare Weight: 218g (0.48lb)

Operating Environment

• Temperature: -10° C to 45° C (14° F to 113° F)
• Humidity: 95% or less (non-condensing)

Certifications

• FCC / UL / CE / WEEE / REACH / RoHS

Installation

Professional Installation Services: For optimal setup and performance, professional installation services are available at an additional cost.

Packaging Contents

• C6N camera
• Quick Start Guide

Conclusion

The EZVIZ C6N 2MP Indoor Wi-Fi Pan & Tilt Camera is an ideal solution for those seeking reliable, high-quality indoor surveillance. With its advanced features, easy installation, and extensive coverage, it ensures comprehensive security for your home or office. Backed by a 3-year warranty and optional professional installation services, the EZVIZ C6N offers exceptional value and peace of mind.
