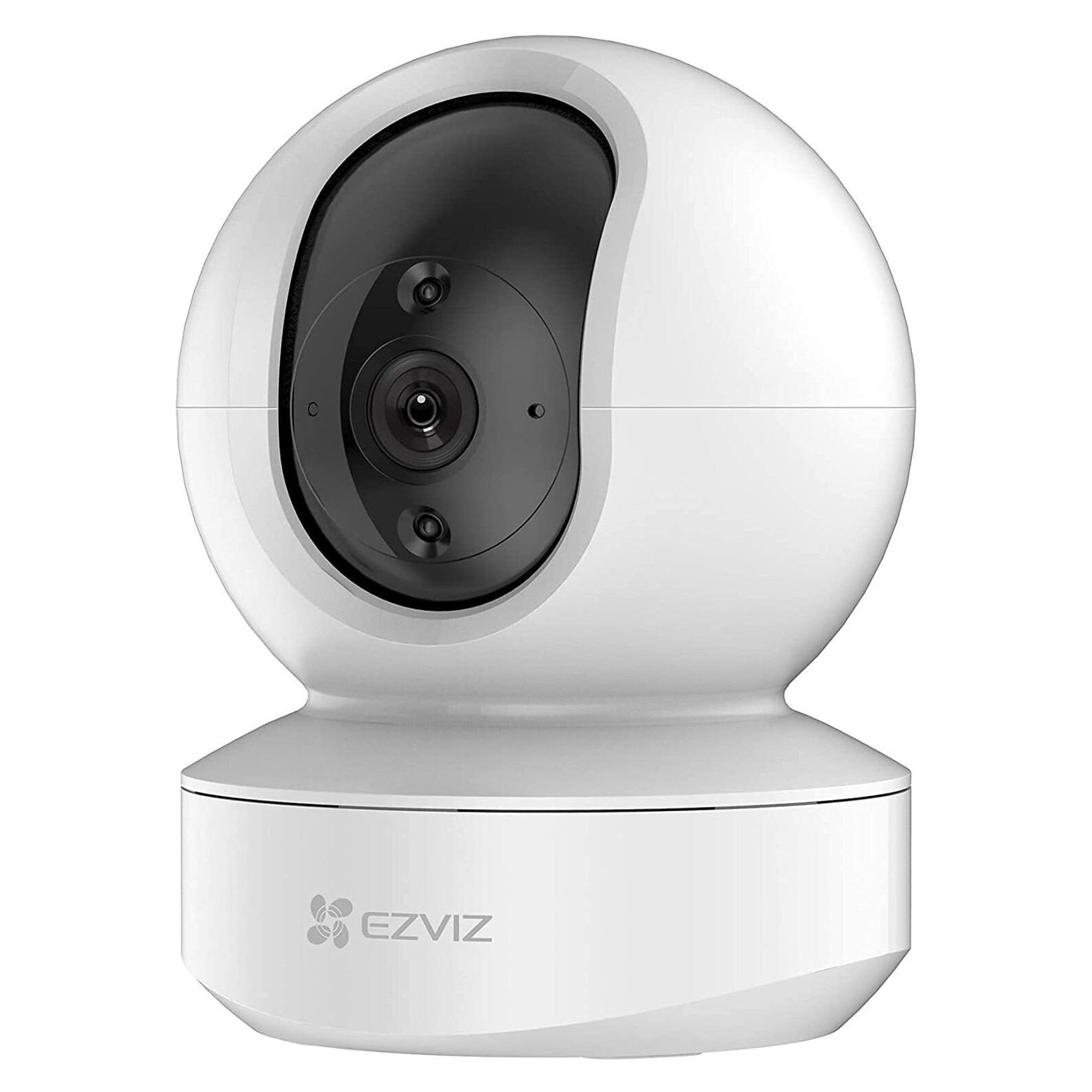

EZVIZ CS-TY1 2MP Indoor Wi-Fi 360° Pan & Tilt Wireless CCTV Camera

The EZVIZ TY1 Pan/Tilt Camera is a cutting-edge security solution designed to keep your home and business safe with its advanced features and high-quality imaging. Featuring a sleek and compact design, this camera seamlessly blends into any environment while providing robust surveillance capabilities.

Key Features

• High-Resolution Imaging: Equipped with a 1/3″ Progressive Scan CMOS sensor, the TY1 captures crystal-clear images in Full HD 1080p resolution.
• Wide-Angle View: The 4mm lens with an 85° diagonal, 75° horizontal, and 45° vertical viewing angle ensures comprehensive coverage of any area.
• Day & Night Monitoring: The IR-cut filter with auto-switching ensures excellent image quality during both day and night, with an IR range of up to 10 meters (32.81 ft.).
• Smart Motion Detection: The smart alarm system detects movement and sends instant alerts to your smartphone, keeping you informed of any suspicious activity.
• Wi-Fi Connectivity: Easily connect the TY1 to your network using the 2.4 GHz Wi-Fi, supporting IEEE802.11b/g/n standards for reliable and stable connections.
• Flexible Storage Options: Store your recordings locally with a microSD card (up to 256GB) or use the EZVIZ Cloud for secure cloud storage.
• User-Friendly Interface: The camera supports AP pairing and uses the proprietary EZVIZ Cloud protocol for seamless integration with other EZVIZ products.

Specifications

• Model: CS-TY1-B0-1G2WF
• Image Sensor: 1/3″ Progressive Scan CMOS
• Shutter Speed: Self-adaptive shutter
• Lens: 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
• Lens Mount: M12
• Day & Night: IR-cut filter with auto-switching
• DNR: 3D DNR
• WDR: Digital WDR
• Video Compression: H.264
• Video Bit Rate: Full HD, HD, Standard. Adaptive bit rate.
• Max. Resolution: 1920 × 1080
• Frame Rate: Max: 15fps; Self-Adaptive during network transmission
• Smart Alarm: Motion detection
• Wi-Fi Pairing: AP pairing
• Protocol: EZVIZ Cloud proprietary protocol
• Interface Protocol: EZVIZ Cloud proprietary protocol
• Storage: MicroSD card slot (Max. 256GB)
• Power: Micro USB
• Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)
• Wi-Fi Standard: IEEE802.11b/g/n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: Supports 20MHz
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps
• Operating Temperature: -10°C to 45°C (14°F to 113 °F)
• Operating Humidity: 95% or less (non-condensing)
• Power Supply: DC 5V/1A
• Power Consumption: 5W max
• IR Range: Max. 10 meters (32.81 ft.)
• Dimensions: 88 x 88 x 118.7 mm (3.46 x 3.46 x 4.67 inch)
• Packaging Dimensions: 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch)
• Net Weight: 259g (9.14oz)
• Certificates: FCC / UL / CE / WEEE / REACH / RoHS
• Warranty: 3 Years

Installation

Professional Installation Services: For optimal setup and performance, professional installation services are available at an additional cost.

In the Box

• TY1 Pan/Tilt Camera
• Quick Start Guide

The EZVIZ TY1 Pan/Tilt Camera combines advanced technology with user-friendly features, making it an ideal choice for those seeking reliable and effective security for their home or business.

Conclusion

The EZVIZ C6N 2MP Indoor Wi-Fi Pan & Tilt Camera is an ideal solution for those seeking reliable, high-quality indoor surveillance. With its advanced features, easy installation, and extensive coverage, it ensures comprehensive security for your home or office. Backed by a 3-year warranty and optional professional installation services, the EZVIZ C6N offers exceptional value and peace of mind.
