Name: CP Plus CP-UNR-4K4162-V4 16Ch 4K NVR | 160Mbps, 2 SATA 20TB
SKU: CP-UNR-4K4162-V4
Price: 13915.00 INR
Availability: InStock

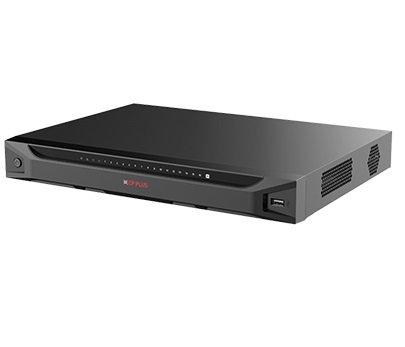

CP Plus 16 Channel 4K Network Video Recorder

📹 16 IP Channels, up to 12MP: Record full 4K cameras across your entire site without compromise.

⚡ 160Mbps Incoming Bandwidth: All 16 cameras at full quality simultaneously — no dropped frames.

🗄️ 2 SATA Bays (20TB Each): Up to 40TB total for weeks of continuous 4K recording.

💾 Smart Instastream + H.265: Smart compression saves up to 75% storage versus H.264.

🔗 ONVIF Compatible: Works with CP Plus and other IP camera brands.

📱 Free gCMOB App: Live view, playback and alerts on iOS & Android from anywhere.

Product details

🎥 CP PLUS 16-CHANNEL 4K NVR

12MP Support • 160Mbps Power • 40TB Storage

Scale-Ready 4K NVR for Serious IP Camera Systems

The CP Plus CP-UNR-4K4162-V4 is a professional-grade 16-Channel 4K Network Video Recorder built for full-site IP surveillance. Supporting camera resolutions up to 12MP with preview and playback headroom beyond standard 4K, it delivers uncompromising forensic clarity for showrooms, offices, warehouses, schools and larger homes.

With a wide 160Mbps incoming bandwidth, all 16 cameras record at full bitrate simultaneously — you never trade coverage for quality. Start with six cameras today and grow to sixteen without touching the recorder: the capacity is already built in.

📦 What’s Inside the Box

CP Plus 16Ch NVR Unit	CP-UNR-4K4162-V4
Power Adapter	12V DC (included)
USB Mouse	For local setup & control
Quick Start Guide	Installation & app setup manual
HDD Screws & SATA Cables	For hard disk installation

📹 12MP Preview & True 4K Recording

Mix 2MP, 4MP and 4K/8MP cameras freely across the site. Decoding power of 8× 1080p@30fps or 2× 8MP@30fps keeps multi-channel live view silky smooth on the local display.

💾 Smart Instastream — Save Up to 75%

CP Plus Smart Instastream and H.265 compression dramatically shrink file sizes versus H.264 — the same hard disk records for weeks longer, and remote viewing stays smooth on ordinary broadband.

🗄️ Dual SATA — Up to 40TB

Two SATA bays accept surveillance-grade disks up to 20TB each. Configure one now, add the second as retention needs grow — 30-day retention on 16 channels is comfortably within reach.

📱 gCMOB App + 🔗 ONVIF Freedom

Free gCMOB app (iOS & Android) for live view, playback and push alerts — multiple users simultaneously. ONVIF conformance welcomes IP cameras from other brands, protecting your earlier investment.

📊 Full Technical Specifications — CP-UNR-4K4162-V4

Model	CP-UNR-4K4162-V4
Channels	16 Channel IP
Max Resolution	Up to 12MP preview & playback
Input Bandwidth	160 Mbps
Recording Bandwidth	160 Mbps (80 Mbps outgoing)
Compression	Smart Instastream / H.265 / H.264 / MJPEG
Decoding	8× 1080p@30fps or 2× 8MP@30fps
HDD Bays	2× SATA (up to 20TB each, 40TB total)
Video Output	1× HDMI + 1× VGA (simultaneous)
Network	1× RJ45 Gigabit (10/100/1000 Mbps)
USB Ports	2× USB 2.0
Protocol Support	ONVIF 2.4, P2P, RTSP, TCP/IP, HTTPS, DDNS, SNMP
Mobile App	gCMOB / iCMOB (iOS & Android), KVMS Pro CMS
Power Supply	12V DC / 1.5A, <10W (without HDD)
Warranty	2 Years CP Plus India

❓ Frequently Asked Questions

How many cameras can this NVR support?
Up to 16 IP cameras, each at resolutions up to 12MP. You can start with fewer and add cameras any time.

Does it come with a hard disk?
No — the HDD is sold separately. It supports 2 surveillance-grade disks up to 20TB each; our team can suggest the right size for your retention needs.

Will it work with my existing non-CP Plus IP cameras?
Yes, in most cases — it is ONVIF conformant, so IP cameras from other major brands can connect. Share your camera models with us and we’ll confirm before you buy.

Does this NVR have PoE ports?
No — cameras connect through your network. You’ll need a PoE switch to power the cameras, which also gives you flexible placement across larger sites.

🤝 Why BuyCCTVs.com?

BuyCCTVs.com Invoice — genuine billing that protects your warranty claim
Managed Customer Support — one point of contact, purchase to service
Dealer-Network Sourcing — fresh genuine stock, valid India serials
Direct-to-Customer Dispatch — typically within 24 hours
Compatibility Guidance — we confirm cameras, HDD & switch pairing before you order
Remote Usage Guidance — gCMOB and recording setup help after delivery

🛠️ Warranty & After-Sales Support

The CP-UNR-4K4162-V4 carries a 2-Year CP Plus India Manufacturer Warranty, subject to BuyCCTVs.com invoice and product serial-number validation. In the rare event of a hardware defect, BuyCCTVs.com coordinates the complete RMA process — no trips to a service centre required.

⚠️ Important: Requires a separate HDD (not included), a PoE switch or camera power adapters, and Cat6 cable runs to each camera. Please confirm current price and stock on WhatsApp before completing your purchase.
