Name: CP Plus 64 Channel NVR Price | CP-UNR-4K564R8-FI
Brand: CP PLUS
SKU: CP-UNR-4K564R8-FI
Price: 71065.00 INR
Availability: InStock

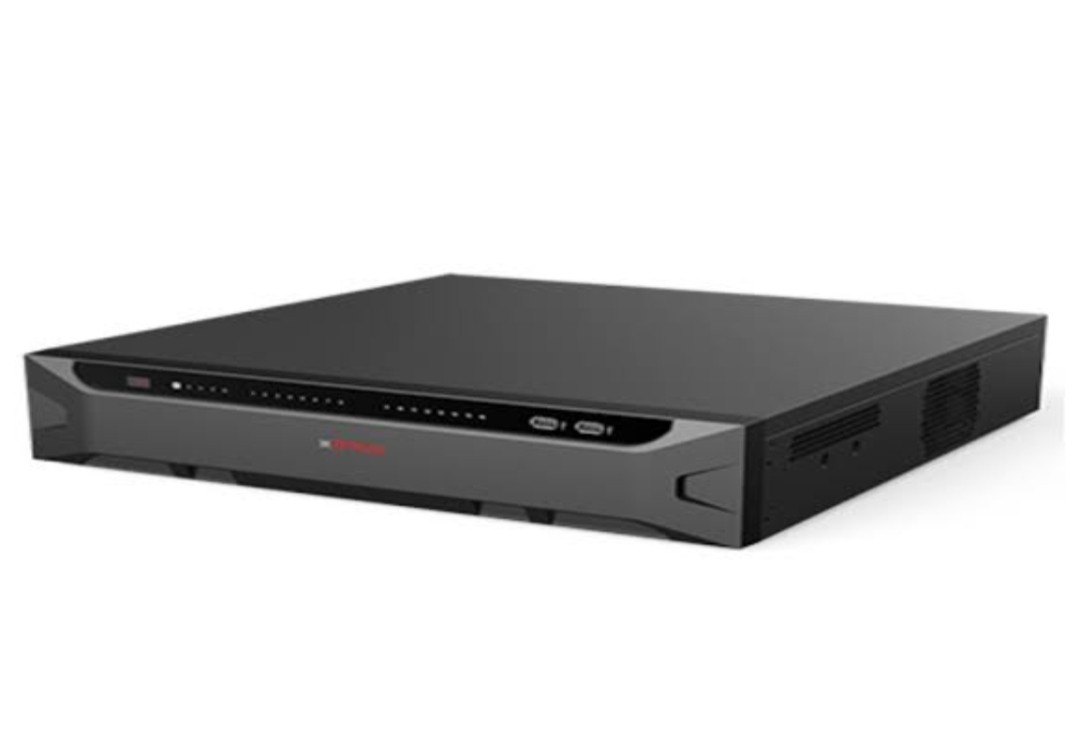

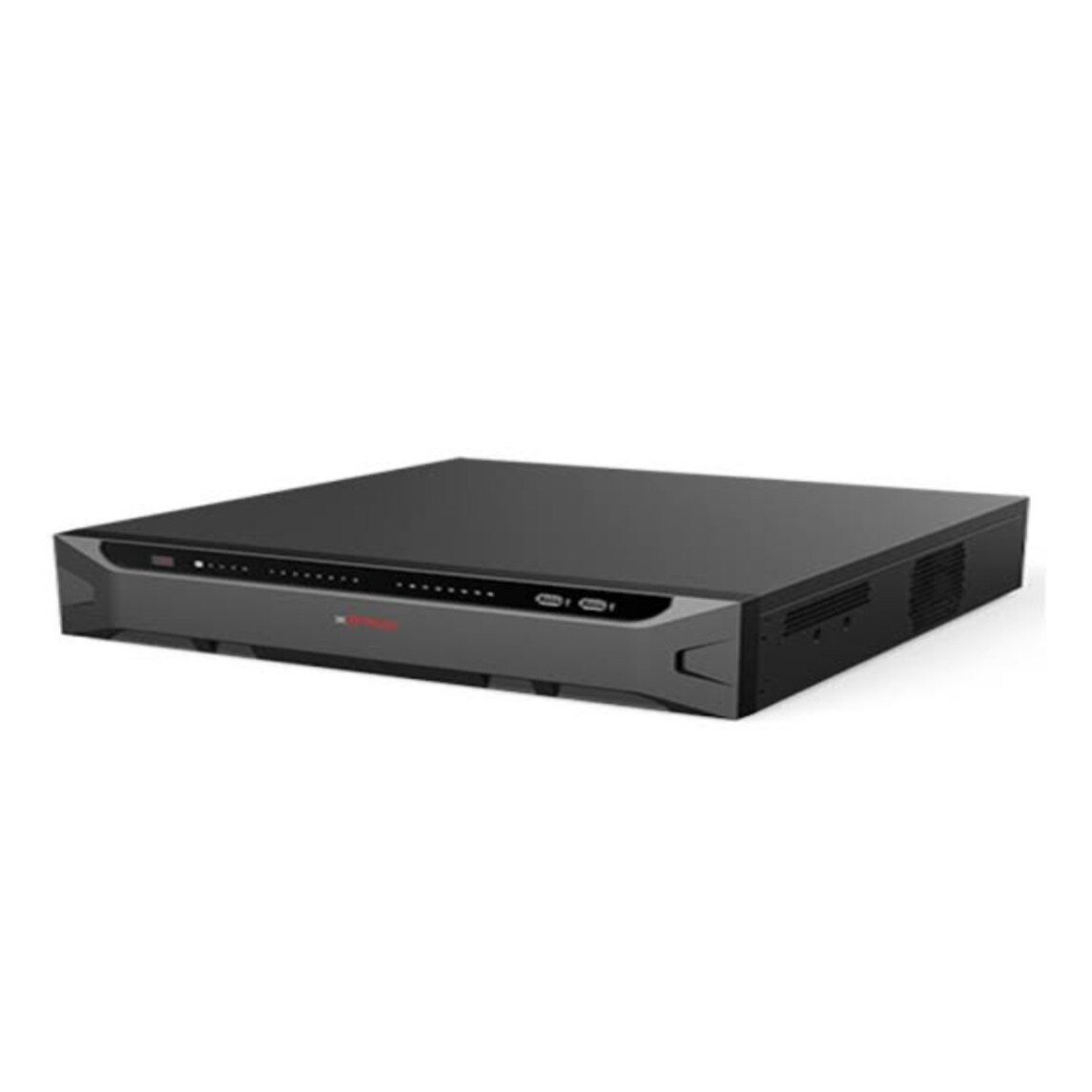

CP Plus 64 Channel Enterprise AI RAID NVR

🏢 64 IP Channels, up to 32MP: True enterprise-scale recording for factories, campuses and townships.

🗄️ 8 SATA Bays + RAID 0/1/5/6/10: Up to 20TB per disk; RAID configuration and a separate backup plan need checking.

🤖 Serious AI Toolkit: Recorder AI and compatible-camera AI have different features and channel limits.

🚀 Bandwidth: 384Mbps with recorder AI disabled; 200Mbps enabled. Check combined stream bitrates.

🖥️ Display Outputs: 2× HDMI up to 4K; 2× VGA up to 1080p.

🔌 16 Alarm In / 8 Out + Dual Gigabit LAN: Integrates gates, sirens and redundant networks.

Product details

🏆 CP PLUS 64CH AI RAID NVR

Enterprise Command Center • RAID Protected • ANPR + Face AI

When Losing Footage Is Not an Option

The CP Plus CP-UNR-4K564R8-FI is built for sites where surveillance is critical infrastructure: factories, gated townships, hospitals, logistics hubs and institutional campuses. It records up to 64 IP cameras at resolutions up to 32MP, with bandwidth of 384Mbps when recorder AI is disabled, or 200Mbps when enabled. Size the combined camera streams for the selected mode.

What separates it from ordinary NVRs is true RAID storage (0/1/5/6/10) across 8 SATA bays of up to 20TB each — select the RAID mode and backup plan for your site; recording survival is not guaranteed. Add ANPR through compatible cameras, face recognition and perimeter protection, and this machine identifies vehicles and people, triggers alarms through its 16-in/8-out interface, and supports control-room displays; HDMI supports 4K and VGA supports up to 1080p.

📦 What’s Inside the Box

CP Plus 64Ch RAID NVR Unit	CP-UNR-4K564R8-FI
Power Cable	100–240 VAC input
USB Mouse	For local setup & control
Quick Start Guide	Installation & RAID setup manual
HDD Screws & SATA Cables	For 8-bay hard disk installation

🛡️ RAID and Backup Planning

RAID support is not a guarantee against footage loss. Confirm the chosen RAID configuration, disk health, monitoring and separate backup plan before deployment.

🚗 ANPR at the Gate

ANPR is listed as AI by Camera, not unrestricted plate recognition by the recorder alone. Check the connected camera model and supported integration before planning gate automation.

👤 Face Recognition Built In

Face databases with match alerts — 2 channels by recorder analytics, up to 16 by camera. Reception and entry points become intelligent checkpoints.

🖥️ Control-Room Ready

Two HDMI outputs support 4K; two VGA outputs support up to 1080p. At 1080p/30fps, decoding is up to 32 channels with AI disabled or 24 with AI enabled. It has dual gigabit LAN for redundant networks, and ONVIF 22.06 for multi-brand camera fleets.

📊 Full Technical Specifications — CP-UNR-4K564R8-FI

Model	CP-UNR-4K564R8-FI
Channels	64 Channel IP (up to 32MP)
Bandwidth	384 Mbps (200 Mbps with AI enabled)
HDD Bays	8× SATA, up to 20TB each (160TB max)
RAID	RAID 0 / 1 / 5 / 6 / 10
AI Features	ANPR by compatible camera; recorder and camera AI have separate feature/channel limits
Compression	Instastream / H.265 / H.264+ / H.264 / MJPEG
Decoding	1080p@30fps: up to 32 channels AI disabled; 24 AI enabled
Video Output	2× HDMI up to 3840×2160; 2× VGA up to 1920×1080
Network	2× Gigabit RJ45
Alarm I/O	16 In / 8 Out (1A @ 12V)
Protocol Support	ONVIF 22.06 (Profile S/T/G), P2P, RTSP
Mobile App	gCMOB / iCMOB, KVMS Pro CMS
Power	100–240 VAC, ≤13W (without HDDs)
Warranty	2 Years CP Plus India

Specification source: CP PLUS CP-UNR-4K564R8-FI manufacturer specifications. Confirm the installed cameras and selected AI mode before commissioning.

❓ Frequently Asked Questions

Which RAID level should I use?
Choose a supported RAID mode after checking usable capacity, disk requirements and recovery procedure. Do not treat RAID as a guarantee or a substitute for a separate backup.

Are hard disks included?
No — disks are sold separately. With 8 bays × 20TB you can build up to 160TB; we’ll calculate the right configuration for your camera count and retention days.

Does ANPR work with any camera?
No blanket compatibility is promised. The manufacturer lists ANPR as AI by Camera; verify that the connected camera provides supported ANPR events.

Can it work with my existing cameras?
Yes — ONVIF 22.06 support means most major IP camera brands connect. Share your camera list and we’ll confirm compatibility.

🤝 Why BuyCCTVs.com?

BuyCCTVs.com Invoice — genuine billing that protects your warranty claim
Managed Customer Support — one point of contact, purchase to service
Dealer-Network Sourcing — fresh genuine stock, valid India serials
Direct-to-Customer Dispatch — typically within 24 hours
Compatibility Guidance — RAID planning & storage calculation included
Remote Usage Guidance — AI rules, ANPR lists & alarm setup help

🛠️ Warranty & After-Sales Support

The CP-UNR-4K564R8-FI carries a 2-Year CP Plus India Manufacturer Warranty, subject to BuyCCTVs.com invoice and serial-number validation. BuyCCTVs.com coordinates the complete RMA process — no service-centre trips required.

⚠️ Important: Hard disks not included. Enterprise deployments should confirm camera mix, AI channel allocation and RAID configuration with our team. Please confirm current price and stock on WhatsApp before completing your purchase.

Additional information

Warranty	2 Year
Channels	64, 64-Channel
Device Type	NVR
Max Resolution	32MP
Compression	H.265
