Name: CP Plus CP-UNP-E3221L18-DAQ 2MP 32x PTZ | 180m IR, STQC
SKU: CP-UNP-E3221L18-DAQ
Price: 57776.00 INR
Availability: InStock

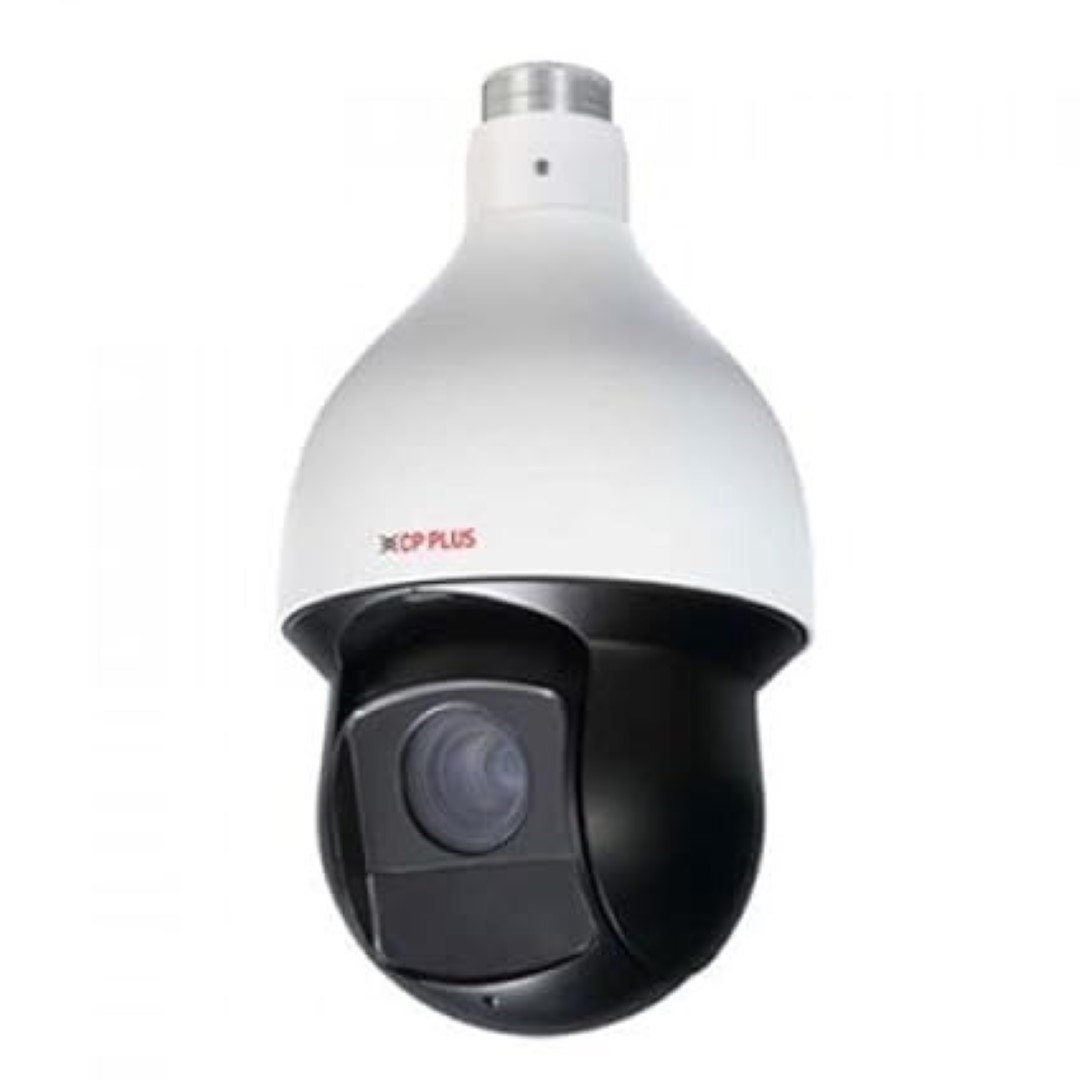

CP Plus 2MP 32x Network IR PTZ Camera — 180m Range

🔭 32x Optical Zoom (4.5–144mm): Full HD close-ups from hundreds of metres — gates, boundaries, open yards.

🌃 180m IR + Starlight (0.005 Lux): Long-range vision that owns the night.

🎯 Auto Tracking: Follows moving people or vehicles automatically — 360° endless pan at up to 300°/s.

📹 120dB WDR: Balanced exposure against headlights and floodlights.

🛡️ IP67 + IK10 + STQC Approved: Weather-sealed, vandal-resistant, tender-eligible.

⚡ PoE+ (802.3at): Single-cable install on poles and towers.

Product details

🔭 CP PLUS 2MP 32x PTZ

180m IR • 300°/s Speed • Auto Tracking

Perimeter Coverage That Never Blinks

The CP Plus CP-UNP-E3221L18-DAQ gives large sites a tireless watchman. Its 1/2.8" Starlight sensor sees color at just 0.005 lux, while 180-metre IR takes over in total darkness. The 32x optical zoom (4.5–144mm) reaches across yards, parking lots and boundary walls to deliver Full HD close-ups on demand.

With auto tracking, endless 360° pan at up to 300°/second, 300 presets, 8 tours and pattern patrols, one camera actively covers what would otherwise need many fixed units. 120dB WDR handles gate glare and headlights, IP67/IK10 construction survives -40°C to +65°C plus tampering, and PoE+ (802.3at) keeps pole installs to one cable. STQC approval keeps it eligible for government tenders.

📦 What’s Inside the Box

CP Plus 2MP PTZ Camera	CP-UNP-E3221L18-DAQ
Power Supply	24VDC 2.5A PTZ adapter (included)
Mounting Hardware	Bracket base & fixing screws
Quick Start Guide	Installation & PTZ setup manual
Waterproof Kit	For sealed outdoor connections

🌙 Starlight Advantage

0.005 lux color sensitivity means usable color video under nothing but street lighting — IR only when truly needed, preserving natural scene detail at night.

💰 Smart Budget Choice

Need long-range PTZ coverage but not 4MP? This 2MP sibling of our flagship PTZ delivers the same 32x reach, tracking and build quality at a significantly lower price.

🎯 300°/s Response Speed

When an alarm triggers, the camera snaps to the preset in a blink — no slow crawl while the event walks out of frame.

⚡ One-Cable Pole Install

PoE+ (802.3at) sends power and data over a single Cat6 run — cleaner installs, fewer failure points, easier maintenance on high poles.

📊 Full Technical Specifications — CP-UNP-E3221L18-DAQ

Model	CP-UNP-E3221L18-DAQ
Sensor	1/2.8" 2MP PS CMOS (Starlight)
Resolution	1920×1080 Full HD
Optical Zoom	32x (4.5–144mm) + 16x digital
Min. Illumination	Color 0.005 lux / B&W 0.0005 lux @F1.6
Night Vision	Up to 180m IR
Image	120dB WDR, 2D/3D NR, Defog, BLC, HLC
Pan/Tilt	360° endless; Pan 0.1–300°/s, Tilt 0.1–200°/s (-15° to +90°)
Patrol Functions	Auto Tracking; 300 Presets, 5 Scan, 8 Tour, 5 Pattern
Audio / Alarm	1 in / 1 out audio; 2 in / 1 out alarm
Protection	IP67, IK10, TVS 6000V lightning protection
Power	24VDC 2.5A / PoE+ (802.3at); 8–18.5W
Working Temp	-40°C to +65°C
ONVIF / Certification	Profile S/G/T; STQC-approved compliance report
Warranty	2 Years CP Plus India

❓ Frequently Asked Questions

2MP or 4MP — which PTZ should I choose?
2MP is excellent for monitoring and tracking at range; choose the 4MP (CP-UNP-E3241L18-DAQ) when you need finer identification detail at maximum zoom. We’ll help you decide from your site plan.

Can I control it from my phone?
Yes — pan, tilt, zoom and presets all work from the gCMOB app, plus NVR and KVMS Pro control.

Does PoE+ fully power it?
Yes — 802.3at PoE+ covers normal operation; the included 24VDC adapter is an alternative for non-PoE setups.

How high should it be mounted?
Typically 5–8 metres for compound coverage. We advise exact height and position for your patrol zones before dispatch.

🤝 Why BuyCCTVs.com?

BuyCCTVs.com Invoice — genuine billing that protects your warranty claim
Managed Customer Support — one point of contact, purchase to service
Dealer-Network Sourcing — fresh genuine stock, valid India serials
Direct-to-Customer Dispatch — typically within 24 hours
Compatibility Guidance — NVR pairing & mounting plan included
Remote Usage Guidance — tracking rules & patrol tours set up with you

🛠️ Warranty & After-Sales Support

The CP-UNP-E3221L18-DAQ carries a 2-Year CP Plus India Manufacturer Warranty, subject to BuyCCTVs.com invoice and serial-number validation. BuyCCTVs.com coordinates the complete RMA process — no service-centre trips required.

⚠️ Important: Requires PoE+ (802.3at) switch or the included 24VDC supply. Please confirm current price and stock on WhatsApp before completing your purchase.
