Name: CP Plus CP-EST-6TGA-305 CAT6 Armoured Cable 305M | 23AWG
SKU: CP-EST-6TGA-305
Price: 28713.00 INR
Availability: InStock

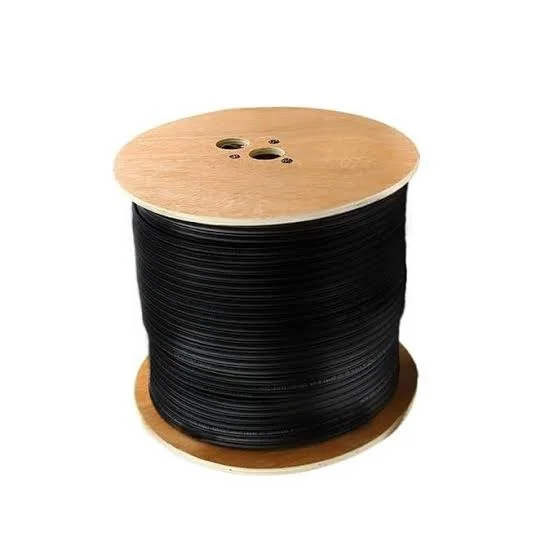

CP Plus CAT6 Armoured Cable — 23AWG, 305M

🛡️ Armoured Construction: Mechanical protection layer for the toughest routes — the top of the CP Plus CAT6 range.

🥇 23AWG Solid Electrolytic Copper: Thickest-gauge conductor, maximum PoE delivery.

🧪 HDPE Insulation + Cross Filler: Stable performance in heat and moisture.

🌍 Outdoor Installation Rated: 9.3mm heavy build, metre-marked.

📜 EIA/TIA 568-C.2 & ISO/IEC 11801 Conforming: Certified CAT6 performance.

🏭 For Runs That Can’t Fail: Industrial yards, tough perimeters, harsh routes.

Product details

🛡️ CP PLUS CAT6 ARMOURED — 23AWG

305M • Solid Copper • Mechanical Armour • Zero Compromise

For Routes That Eat Ordinary Cable

Some cable paths are simply hostile: along factory floors where things get dropped, across yards where rodents chew, through channels where jackets get crushed. The CP Plus CP-EST-6TGA-305 is the range-topping answer — a 9.3mm armoured construction whose mechanical protection layer defends the pairs against impacts and gnawing that would kill any ordinary jacket.

Inside the armour is the best conductor CP Plus makes: 23AWG solid bare electrolytic copper with HDPE insulation and cross filler holding performance stable from -20°C to +50°C, conforming to EIA/TIA 568-C.2 and ISO/IEC 11801. Full gigabit, full PoE power, metre-marked across all 305 metres — the cable you install once in the worst place and never think about again.

🛡️ Armour vs the Real World

Rodents, dropped tools, shifting materials — the armour layer takes the mechanical abuse that causes most "mystery" outdoor network failures.

⚡ 23AWG Under the Armour

The thickest-gauge copper in the range means the harshest routes — usually also the longest — still deliver full PoE power at the far end.

📊 Full Technical Specifications — CP-EST-6TGA-305

Model	CP-EST-6TGA-305 (Armoured)
Type	CAT6, 4 twisted pairs, armoured construction
Conductor	23AWG solid bare electrolytic copper (0.558±0.015mm)
Insulation	HDPE, with HDPE cross filler
Outer Sheath / OD	PVC; approx. 9.30±0.55mm overall
Standards	EIA/TIA 568-C.2, ISO/IEC 11801; impedance 100±15Ω
Length / Temp	305m, metre-marked; -20°C to +50°C operating
Application	Outdoor installation — harsh, exposed and rough routes

❓ Frequently Asked Questions

When is armoured cable worth it?
Rodent-prone routes, mechanical-risk paths, industrial yards — anywhere a cable failure means digging or dismantling to fix. The armour premium beats one re-pull.

23AWG (this) or 24AWG (305V1)?
This 23AWG flagship for the longest, highest-power PoE runs; the V1 saves money where runs are moderate. Both carry the same armour philosophy.

Can it be buried?
It’s rated for outdoor installation and handles rough routes; for direct burial we still recommend conduit as best practice — ask us about your route.

Termination — anything special?
Standard RJ45/patch-panel termination after stripping the armour layers; allow a little extra time per end.

🤝 Why BuyCCTVs.com?

BuyCCTVs.com Invoice — genuine billing, warranty protected
Managed Customer Support — one point of contact
Dealer-Network Sourcing — fresh genuine stock
Direct-to-Customer Dispatch — typically within 24 hours
Compatibility Guidance — route risk assessment included
Remote Usage Guidance — network layout help included

🛠️ After-Sales Support

⚠️ Important: Conduit still recommended for direct burial. Please confirm current price and stock on WhatsApp before purchase.
