Name: CP Plus CP-EUT-6TGL23-305 CAT6 Cable 305M | Full Copper
SKU: CP-EUT-6TGL23-305
Price: 11220.00 INR
Availability: InStock

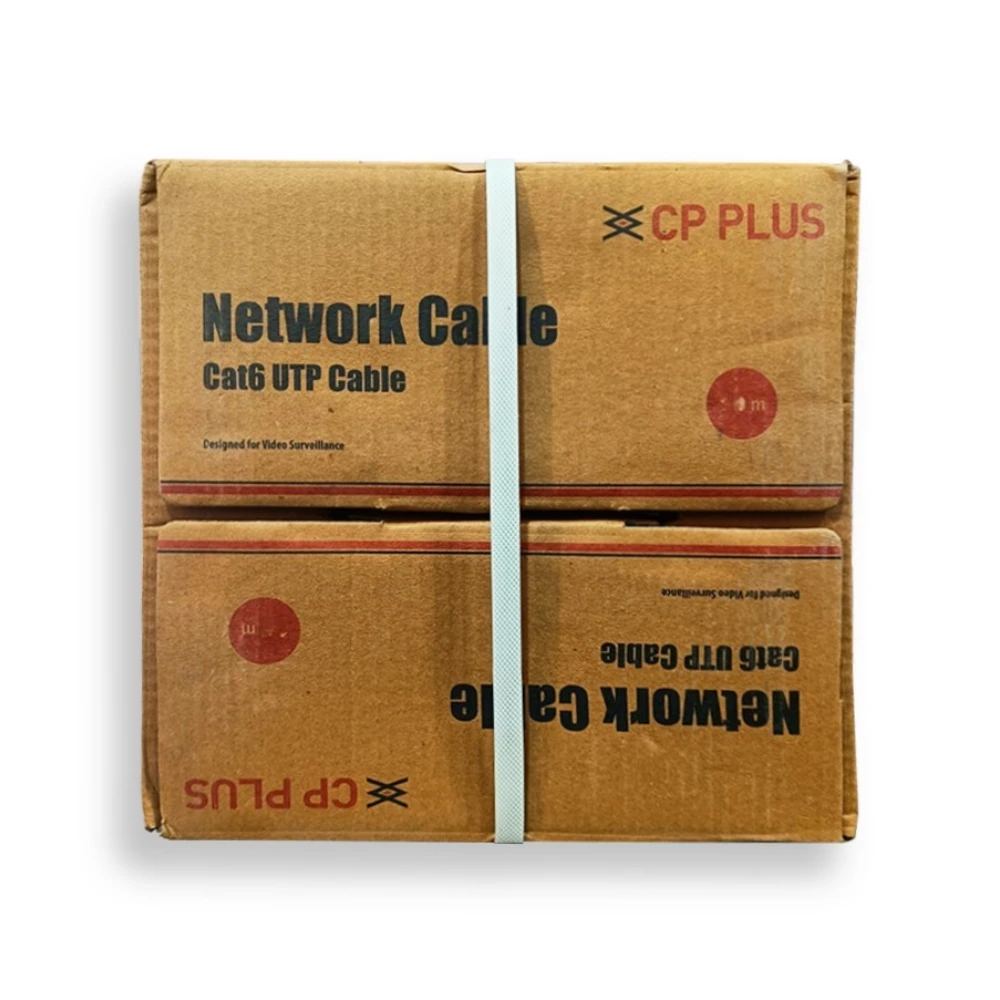

CP Plus CAT6 Full Copper Cable — 305M Box

📦 Full 305M Structured-Cabling Box: The professional roll for whole-site IP CCTV.

🥇 Solid Bare Electrolytic-Grade Copper: All 4 pairs, no CCA anywhere.

🔌 Cross Separator Design: True CAT6 geometry, crosstalk suppressed.

🛡️ FR-PVC Jacket + Rip Cord: Flame-retardant, easy to strip.

📏 Metre-Marked: Exact cuts, zero waste, honest lengths.

⚡ PoE Ready: Data + power to every camera, up to 100m per run.

Product details

📦 CP PLUS CAT6 FULL COPPER — 305M

Structured-Cabling Box • Solid Copper • Whole-Site Roll

The Box Every IP Site Starts With

When the job is an NVR and eight, sixteen, twenty-four PoE cameras, cable is bought by the box — and the box determines whether the system runs flawlessly for a decade or fights you from day one. The CP Plus CP-EUT-6TGL23-305 is the professional-grade 305-metre box: solid bare electrolytic-grade copper in all four pairs, a cross separator preserving CAT6 geometry, and consistent factory quality from first metre to last.

The flame-retardant FR-PVC jacket strips cleanly with the built-in rip cord, and sequential metre markings make run planning precise. Per-metre, the 305m box beats three 100m rolls comfortably — the right economics for any multi-camera IP install.

💰 Box Economics

305m in one box costs meaningfully less per metre than smaller rolls — and one continuous spool means consistent quality on every camera run.

⚡ PoE Fleet Foundation

Every camera gets data + power on one run — full copper keeps voltage drop minimal so even 90m PoE runs power dual-light cameras reliably.

📊 Full Technical Specifications — CP-EUT-6TGL23-305

Model	CP-EUT-6TGL23-305
Type	CAT6 UTP, 4 pairs with cross separator
Conductor	Solid bare electrolytic-grade copper
Length	305 metres, sequential metre marking
Jacket	FR-PVC (flame retardant), grey, rip cord; OD 5.5±0.1mm
Impedance / Performance	100 ±15Ω; delay skew <45ns
Application	IP/PoE CCTV, LAN & structured cabling (indoor)

❓ Frequently Asked Questions

How many cameras will a 305m box wire?
At typical 15–25m runs, roughly 12–18 cameras — one box usually covers a full 16-channel site with slack.

This or the 23AWG CP-EUT-6TGL-305?
The 23AWG flagship has a thicker conductor for the longest PoE runs and highest power loads; this box is the value full-copper workhorse for standard sites.

Maximum run per camera?
100m per the Ethernet standard — plan cable paths so no single run exceeds it.

Outdoor routes?
Use the CP Plus double-jacket (6TSRD/6TGD23) or armored variants for exposed and buried runs.

🤝 Why BuyCCTVs.com?

BuyCCTVs.com Invoice — genuine billing, warranty protected
Managed Customer Support — one point of contact
Dealer-Network Sourcing — fresh genuine stock
Direct-to-Customer Dispatch — typically within 24 hours
Compatibility Guidance — run lengths & PoE budget checked
Remote Usage Guidance — network layout help included

🛠️ After-Sales Support

⚠️ Important: Keep PoE runs within 100m per camera. Please confirm current price and stock on WhatsApp before purchase.
