CP Plus 12V 2Amp-2 Pin Power Adapter | CP-YPS-PA24B-12DT
Roll over image to zoom in
₹300.00₹390.00 inc.GST (-23%)
CP-YPS-PA24B-12DT is a CP PLUS 12V 2Amp-2 Pin Power Adapter. Review the official specifications, compatibility and installation requirements below.
Please confirm the current price and stock on WhatsApp before completing your purchase.
Confirm Price / Stock on WhatsApp
Compare with similar SMPS / Power Supply products
MORE WAYS TO SAVE
More live CCTV offers
Compare these limited-price cameras before completing your order.
CCTV CAMERA
₹2,276.00₹2,208.00inc. GST
CP Plus ezyKam+ 2MP Wi-Fi PT Camera | Two-Way…
1 offer unit availableView offer →
CCTV CAMERA
₹2,850.00₹2,708.00inc. GST
Hikvision DS-2CE16U1T-ITPF 8MP 4K Ultra Low Light Bullet Camera…
1 offer unit availableView offer →
Product details
CP PLUS SECURITY & CONNECTIVITY

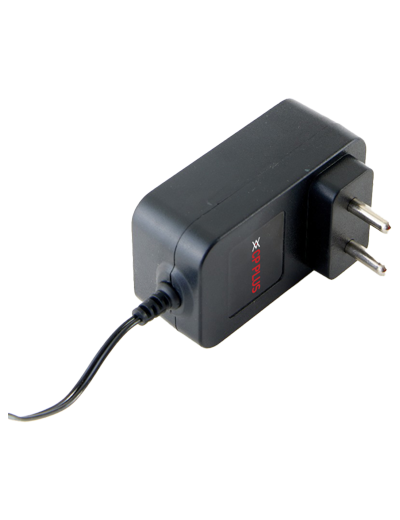

CP-YPS-PA24B-12DT — 12V 2Amp-2 Pin Power Adapter
Official-model specifications organised for clear product selection and project planning.
Product overview
The CP-YPS-PA24B-12DT is a CP PLUS 12V 2Amp-2 Pin Power Adapter. This page combines the current official model data with practical buying guidance, making it easier to compare the required performance, interfaces and installation needs.
Feature 1
Wide 110–265VAC input with stable 12V/2A, 24W output.
Feature 2
Low ripple performance ensuring clean and reliable power delivery.
Feature 3
Built-in OCP, 2kV Hi-Pot isolation & surge protection
Feature 4
±5% line and load regulation for consistent output stability.
Feature 5
High operational efficiency up to 75% for energy-optimized performance.
Technical specifications
| Model | CP-YPS-PA24B-12DT |
|---|---|
| Output | Voltage: 12VDC, Range: 11.40 -12.60V, Min. Load: 0.1A, Rated Load: 2A, Output Power: 24W |
| Input Voltage Range | 110-265VAC |
| Rated Frequency | 50/60Hz Variation Frequency : 47 – 63Hz |
| Rated Input Voltage | 140-240VAC |
| Input Current | 0.75A Max. |
| Combined Load/ Line Regulation | Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 2A, Line Regulation: ± 5%, Load Regulation: ± 5% |
| Ripple and Noise | 250mVp-p; Under normal voltage & nominal load |
| Turn on Delay Time | 3S Max. @ 115V AC input and output Max. Load |
| Rise Time | 100mS Max. @ 115V AC input and output Max. Load |
| Hold Up Time | 8mS Min. @ 115V AC input and output Max. Load |
| Fall Time | 50mS @ Max. Load |
| Surge Immunity | 2kV L-N |
| Hi-Pot Test | 2kV@ 10mA |
| Output voltage | 11.4V – 12.6V |
| OCP Power | 2.2A min @ 230VAC |
| Efficiency | Average efficiency 75% minimum @ 25%, 50%, 75% & 100% of full-loading and 230V AC input (After warm up 30 minutes) |
| Certificates | ISO 9001: 2015, ISO 20000-1: 2018, ISO 14001: 2015, ISO 45001: 2018, ISO 50001: 2018, CE, FCC and RoHS, BIS |
| Overshoot | 10% Max. When power supply @ turns on or turn off |
| Operating Temperature | 0°C to 40°C (Full load, Normal Operation) |
| Storage Temperature | -40°C to 70°C |
Buying and installation guidance
Match the model capabilities to the project before ordering. Confirm power input, compatible accessories, cable or network requirements and environmental limits. Follow the manufacturer installation guide and protect all outdoor joints and connectors.
Frequently asked questions
Is this the exact CP-YPS-PA24B-12DT model?
Yes. The SKU, specifications and images on this page were matched against the current CP PLUS official model page.
What should be checked before purchase?
Confirm the required features, power arrangement, installation environment and compatibility with the rest of the system. Model suffixes can represent important hardware differences.
Are accessories included?
Only items explicitly stated by the manufacturer or order description are included. Storage, cables, power supplies, mounts, SFP modules and other accessories may be sold separately.
Technical reference: CP PLUS official CP-YPS-PA24B-12DT page. Verify critical project specifications before purchase.
Additional information
| Brand | CP PLUS |
|---|---|
| Model Number | CP-YPS-PA24B-12DT |
