Dahua 32 Channel WizSense XVR | 1080N/720p | 2 SATA bays | Smart H.265+ | 2 Year Warranty | DH-XVR4232AN-I
₹27,751.00₹36,077.00 inc.GST (-23%)

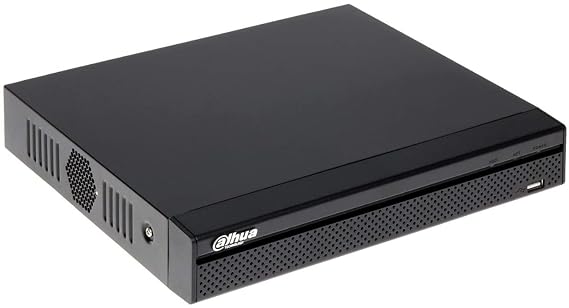

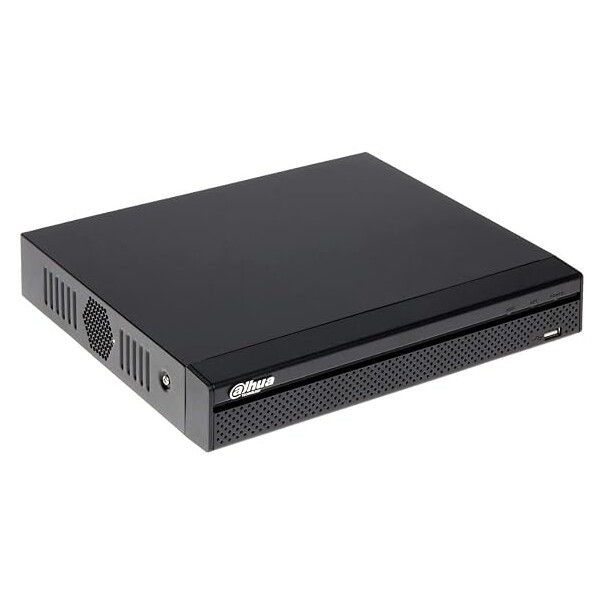

Dahua DH-XVR4232AN-I 32-Channel WizSense XVR
- 32 analog channels: Penta-brid HDCVI, AHD, TVI, CVBS and IP camera support.
- 1080N/720p: Match the recorder to the required analog camera resolution and frame rate.
- 32-channel SMD Plus: Helps filter people/vehicle events and accelerate investigation.
- 2 SATA bays: Install surveillance-grade storage sized for the required retention period.
- Smart H.265+ / AI Coding: Reduces bandwidth and storage use while preserving useful target detail.
- DMSS and ONVIF: Authorised mobile access and compatible third-party IP camera integration.
Frequently Bought Together
-
₹2,172.00
₹2,824.00inc.GST -
₹2,113.00
₹2,747.00inc.GST -
₹2,375.00
₹3,088.00inc.GST
Product details
DAHUA WIZSENSE PENTA-BRID RECORDING
DH-XVR4232AN-I 32-Channel XVR
32 analog | 2 HDD | 32-ch SMD | 8-ch AI Coding
A flexible recorder for coaxial and IP surveillance
The Dahua DH-XVR4232AN-I is a thirty-two-channel 1080N/720p WizSense XVR for high camera-count coaxial installations. It combines 32 analog inputs with IP expansion, dual-HDD storage and large-scale smart motion filtering.
Recorder-side SMD Plus can classify people and vehicles across analog channels, while AI Coding improves storage efficiency. Dual SATA bays, 4K-capable display on current revisions, ONVIF and DMSS suit staffed commercial sites.
Key benefits for installers and operators
Penta-brid inputs: Reuse supported HDCVI, AHD, TVI or CVBS cameras and add compatible IP channels.
32-channel SMD Plus: Full analog-channel SMD filtering helps large sites search people and vehicles faster.
2 SATA bays: Dual HDD bays support longer retention and better capacity planning for thirty-two channels.
Technical specifications – DH-XVR4232AN-I
| Model / recorder type | DH-XVR4232AN-I; WizSense penta-brid XVR |
|---|---|
| Analog inputs | 32 BNC channels; HDCVI / AHD / TVI / CVBS |
| Recording capability | Up to 1080N/720p at model-specific frame rates; 32 analog BNC inputs |
| IP camera expansion | Current specification supports up to 20 IP channels, each up to 6MP, depending on analog/IP conversion mode |
| Recorder-side AI | Up to 32-channel SMD Plus and 8-channel AI Coding; recorder resources vary by mode |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 where supported |
| Video output | HDMI and VGA; up to 4K HDMI on the current specification |
| Storage | 2 SATA ports; current official specification lists up to 16TB per HDD |
| Network / mobile | Ethernet, P2P/DMSS mobile access, web interface and ONVIF-compatible IP camera support |
| HDD included | No; choose surveillance-grade HDD capacity separately |
| Hardware/firmware note | An EOL/current-revision transition exists; confirm carton hardware and firmware before promising all current I/T features. |
| Warranty | 2 Years Dahua India, subject to invoice and serial validation |
Where this XVR fits
Designed for factories, schools, hospitals, large warehouses, campuses and apartment complexes using up to thirty-two analog camera channels with dual-HDD retention.
Hard disks and cameras are not included unless a selected package explicitly lists them. Recording days depend on camera count, resolution, frame rate, codec, bitrate, schedule and installed HDD capacity.
Camera, AI and storage compatibility
Confirm each analog camera standard and resolution, total IP bandwidth, live-view layouts, playback demand, audio channels, display output and retention target before ordering. A camera may display at one resolution while the XVR records it at a model-specific encoding resolution or frame rate.
AI channel counts can change when face recognition, perimeter protection, SMD, AI Coding or IP extension modes are enabled together. Validate the exact hardware version and firmware against the official datasheet before promising simultaneous AI capacity.
Frequently asked questions
Does DH-XVR4232AN-I include an HDD?
No. Install a compatible surveillance-grade HDD selected for the desired recording duration.
Can it use old analog cameras?
It supports multiple analog standards, but camera resolution, frame rate, audio and control features must match the recorder’s input specification.
Can I add IP cameras?
Yes, within the model’s IP-channel, resolution and bandwidth limits. Converting analog channels to IP may reduce available analog inputs and AI functions.
Does every AI function run at the same time?
Not necessarily. AI resource allocation depends on mode, channel type, firmware and hardware version.
Why buy from BuyCCTVs.com?
- Exact model and hardware-version checking
- Camera, AI, storage and bandwidth guidance
- Genuine invoice and India-wide support
Professional installation note
Use protected power, surveillance HDDs, correct ventilation and a secure network. Change default credentials and update firmware only from authorised Dahua sources.
Additional information
| Device Type | XVR (HD DVR) |
|---|---|
| Channels | 32-Channel |
| Recording | 1080N/720p |
| AI | WizSense SMD Plus (Human/Vehicle) |
| Compression | Smart H.265+ |
| Signal | Penta-brid 5-in-1 |
| Storage | 2 SATA |
| Warranty | 2 Year |
