FYBER 8 Port PoE Switch (Gigabit + SFP) | FYA-82SFP
Roll over image to zoom in
₹4,328.00₹5,627.00 inc.GST (-23%)
FYA-82SFP is a FYBER 8 Port PoE Switch (Gigabit + SFP) with regulated DC output and built-in overload, surge, short-circuit and thermal protection.
Please confirm the current price and stock on WhatsApp before completing your purchase.
Confirm Price / Stock on WhatsApp
Compare with similar PoE / Network Switch products
MORE WAYS TO SAVE
More live CCTV offers
Compare these limited-price cameras before completing your order.
CCTV CAMERA
₹2,276.00₹2,208.00inc. GST
CP Plus ezyKam+ 2MP Wi-Fi PT Camera | Two-Way…
1 offer unit availableView offer →
CCTV CAMERA
₹2,850.00₹2,708.00inc. GST
Hikvision DS-2CE16U1T-ITPF 8MP 4K Ultra Low Light Bullet Camera…
1 offer unit availableView offer →
Product details
FYBER POWER & NETWORKING

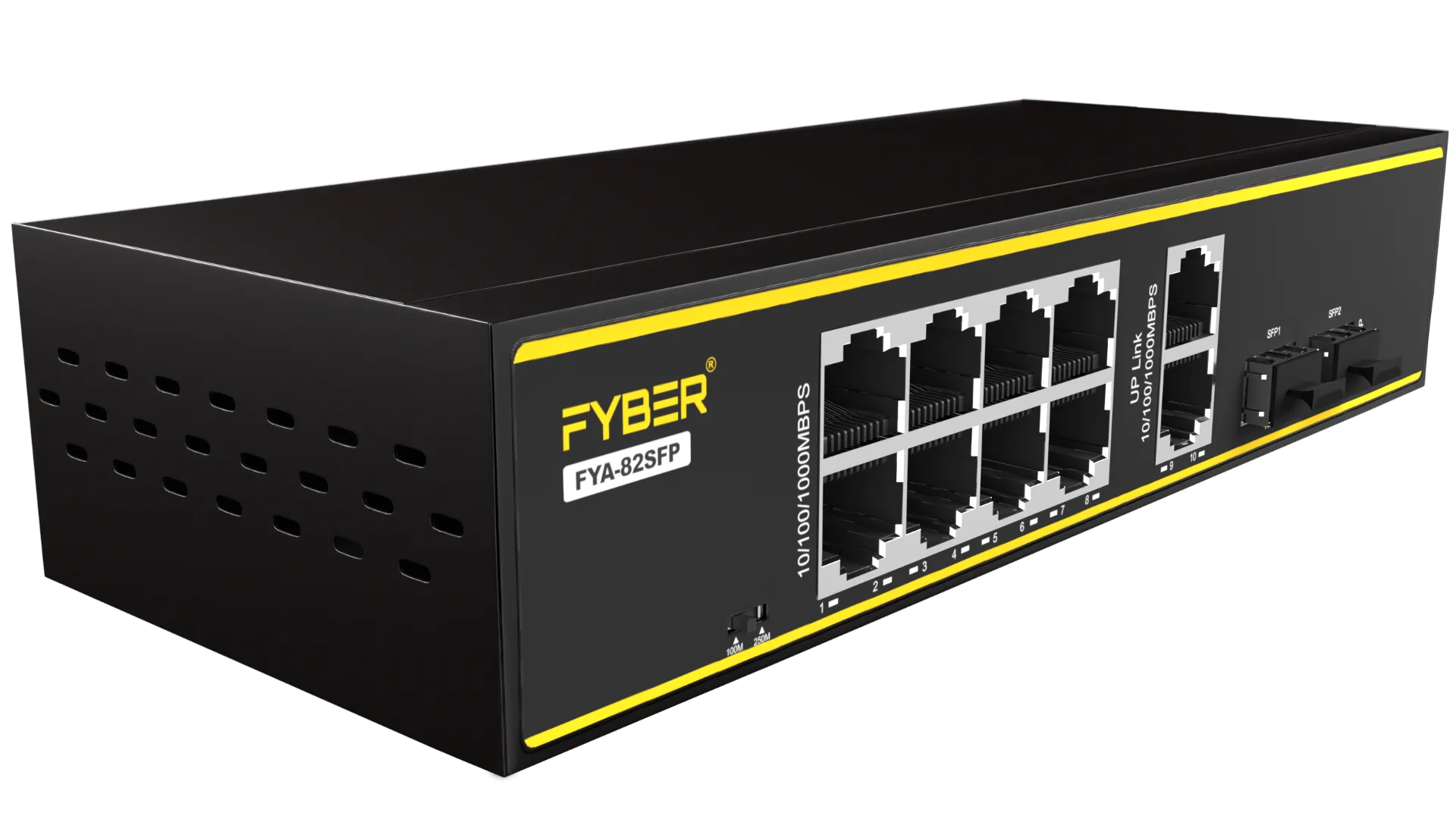

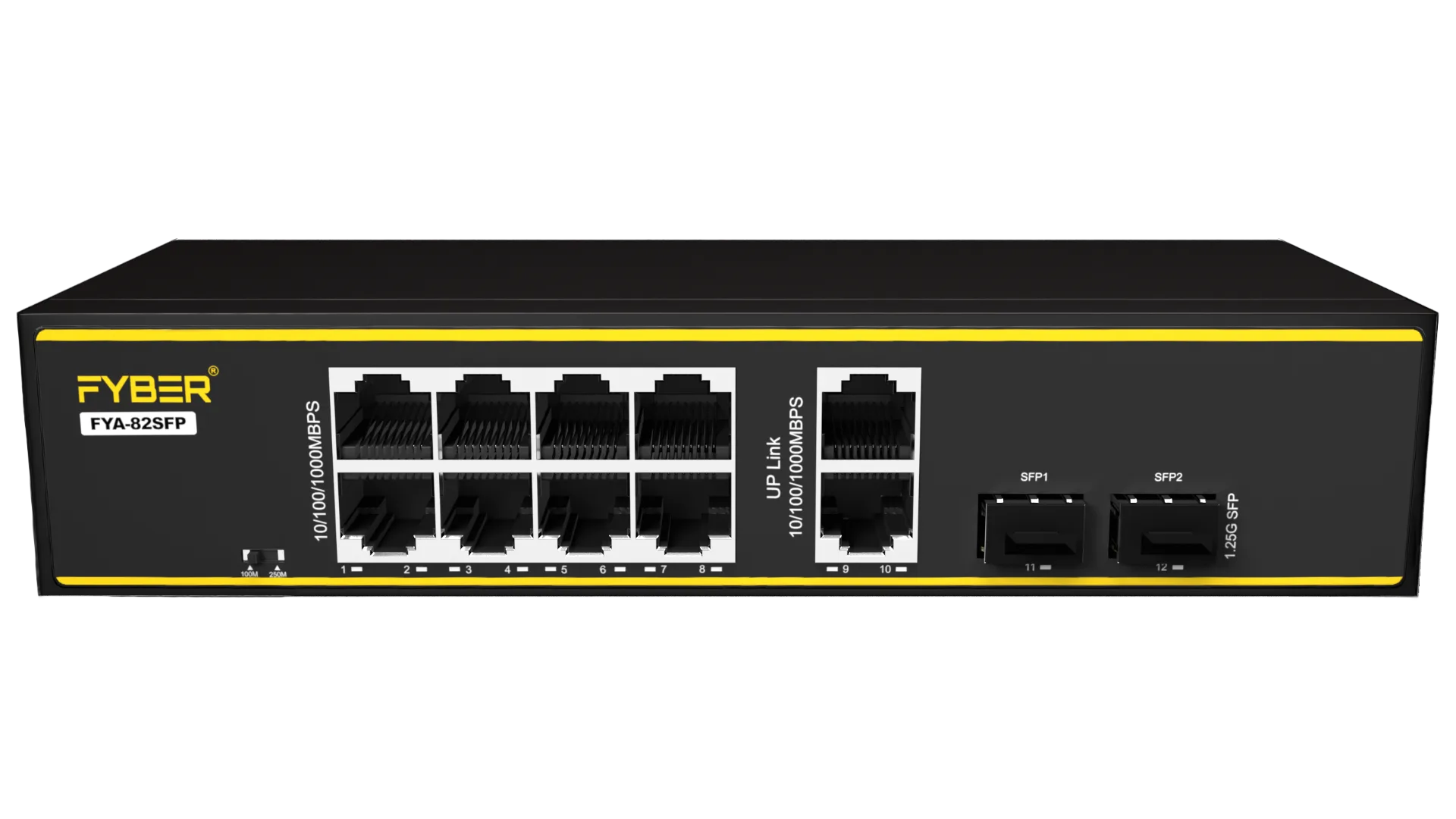

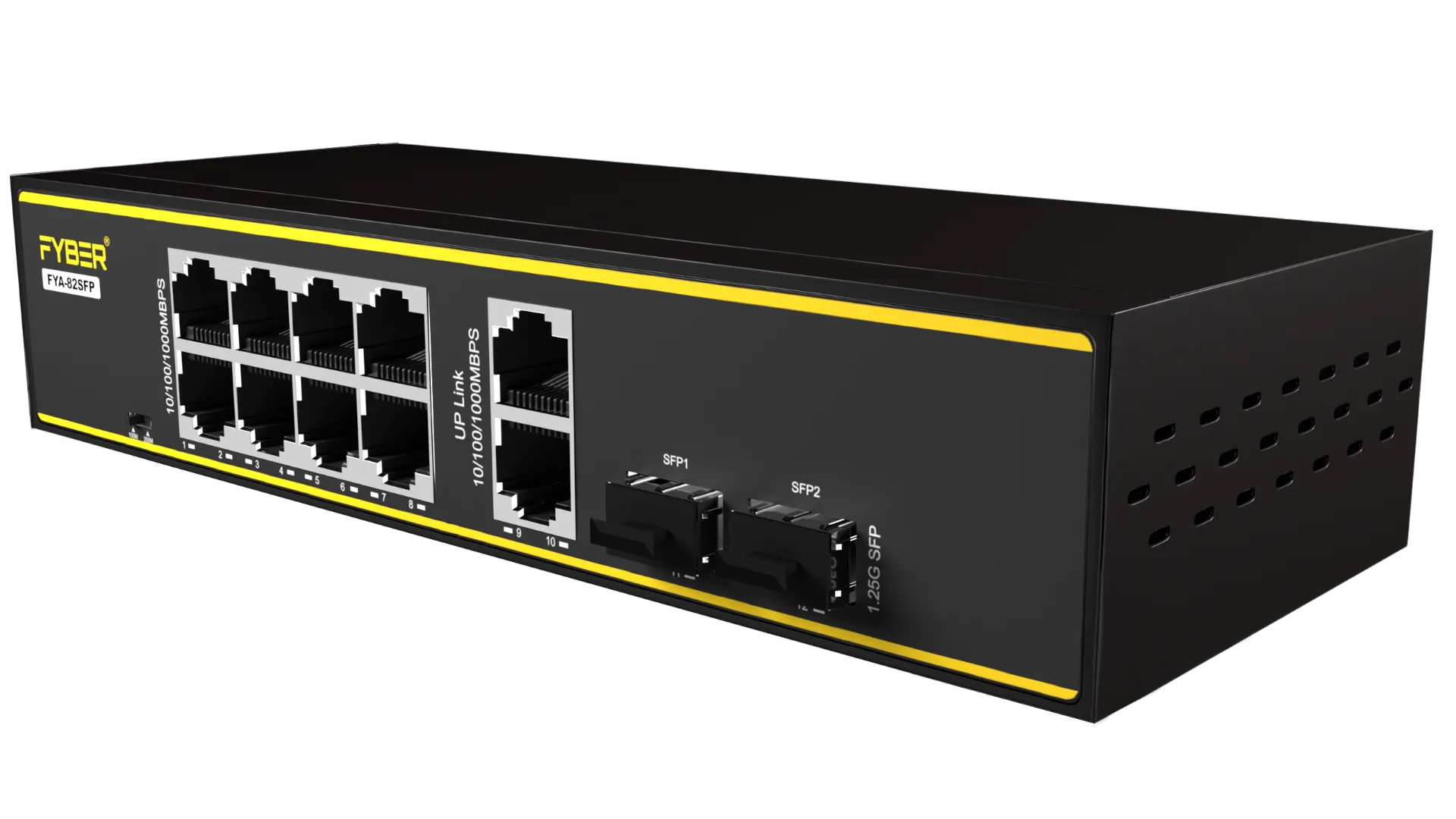

FYA-82SFP — 8 Port PoE Switch (Gigabit + SFP)
Stable, protected power engineered for multi-camera CCTV installations.
Product overview
The FYA-82SFP is a FYBER 8 Port PoE Switch (Gigabit + SFP). It is designed to deliver a consistent regulated DC output. The compact power design and built-in electrical protection make it suitable for dependable day-to-day surveillance and electronics deployments.
Regulated output
DC power output supports compatible equipment with stable power delivery.
Multi-layer protection
Overload, over-voltage, over-current, short-circuit and thermal safeguards help protect the power supply and connected load.
Installation ready
Confirm connector, current demand and device voltage before installation.
Technical specifications
| Model | FYA-82SFP |
|---|---|
| Series | SFP |
| Certification shown on cover | BIS Certified |
| Switching chipset | Realtek |
| Management | Unmanaged / plug-and-play |
| Total RJ45 + SFP ports | 12 |
| Best for | Largest/fiber-connected enterprise + surveillance |
| PoE downlink ports (spec table) | 8 × 10/100/1000 Mbps |
| Uplink ports (RJ45) | 2 × 10/100/1000 Mbps |
| SFP fiber ports | 2 × 1000Base-X (1.25 Gbps) |
| Network standards (spec table) | 802.3, 802.3u, 802.3ab, 802.3X |
| Auto MDI/MDIX + 802.3X flow control | Yes |
| Switching (backplane) capacity | 24 Gbps |
| Forwarding rate | 17.856 Mbps |
| MAC address table | 2K |
| Packet buffer | 2M |
| Forward mode | Store-and-forward |
| Extend mode (max distance) | Yes — up to 250 m |
| VLAN isolation mode | Ports 1–8 isolated; talk to 9–12 |
| PoE standard | IEEE 802.3af/at |
| PoE power mode | Not stated |
| Max power per port (W) | Not stated |
| Total PoE budget (W) | Not stated |
| Bundled adapter — spec table | 52 V / 2.3 A |
| Bundled adapter — package content | 52 VDC / 1.3 A |
| Adapter agreement (spec vs package) | Agrees |
| Adapter plug options | 3 international pin types |
| Per-port TVS diodes | Yes — every PoE port |
| Surge — features text | 4 kV |
| Surge — spec table | 4 kV common mode (10/700µs, IEC61000-4-5) |
| ESD — features text | 6 kV |
| ESD — spec table | Contact ±4 kV; Air ±6 kV (IEC61000-4-2) |
| Surge-protected / EMI-filtered adapter | Yes |
| Dimensions W × D × H (mm) | 200 × 103 × 45 |
| Housing | Metal |
| Operating temperature | -20°C to 55°C, 5–95% RH |
| Storage temperature | -40°C to 75°C, 5–95% RH |
| MTBF | >50,000 h |
Selection and installation guidance
Match the connected device voltage exactly and keep its maximum current or wattage within the power supply rating. Verify DC plug size and polarity before connecting. Install in a ventilated, dry location, avoid tightly coiling the output lead and do not use damaged connectors. For CCTV projects, allow practical headroom for night-time IR load and voltage drop.
Frequently asked questions
What output does FYA-82SFP provide?
The official specification lists the model-specific DC output.
Can it power any CCTV camera or electronic device?
No. The device voltage, current requirement, connector size and polarity must all match. Confirm compatibility before ordering.
What protection is built in?
The FYBER specification includes protection against short circuit, overload or over-current, excess voltage and overheating. Protection features reduce risk but do not replace correct sizing and installation.
Is it suitable for continuous operation?
It is intended for reliable power delivery within its stated electrical and environmental limits. Keep ventilation clear and avoid overloading.
Technical reference: FYBER official FYA-82SFP product data. Product appearance and specifications may be revised by the manufacturer; verify critical project requirements before purchase.
Additional information
| Brand | FYBER |
|---|---|
| Model Number | FYA-82SFP |
