Name: Hi Focus HD-NVR-2104I-4P Price | 4 CHANNEL PoE NETWORK VIDEO RECORDER | 2 Year Warranty
Brand: Hi Focus
SKU: HD-NVR-2104I-4P
Price: 6446.00 INR
Availability: InStock

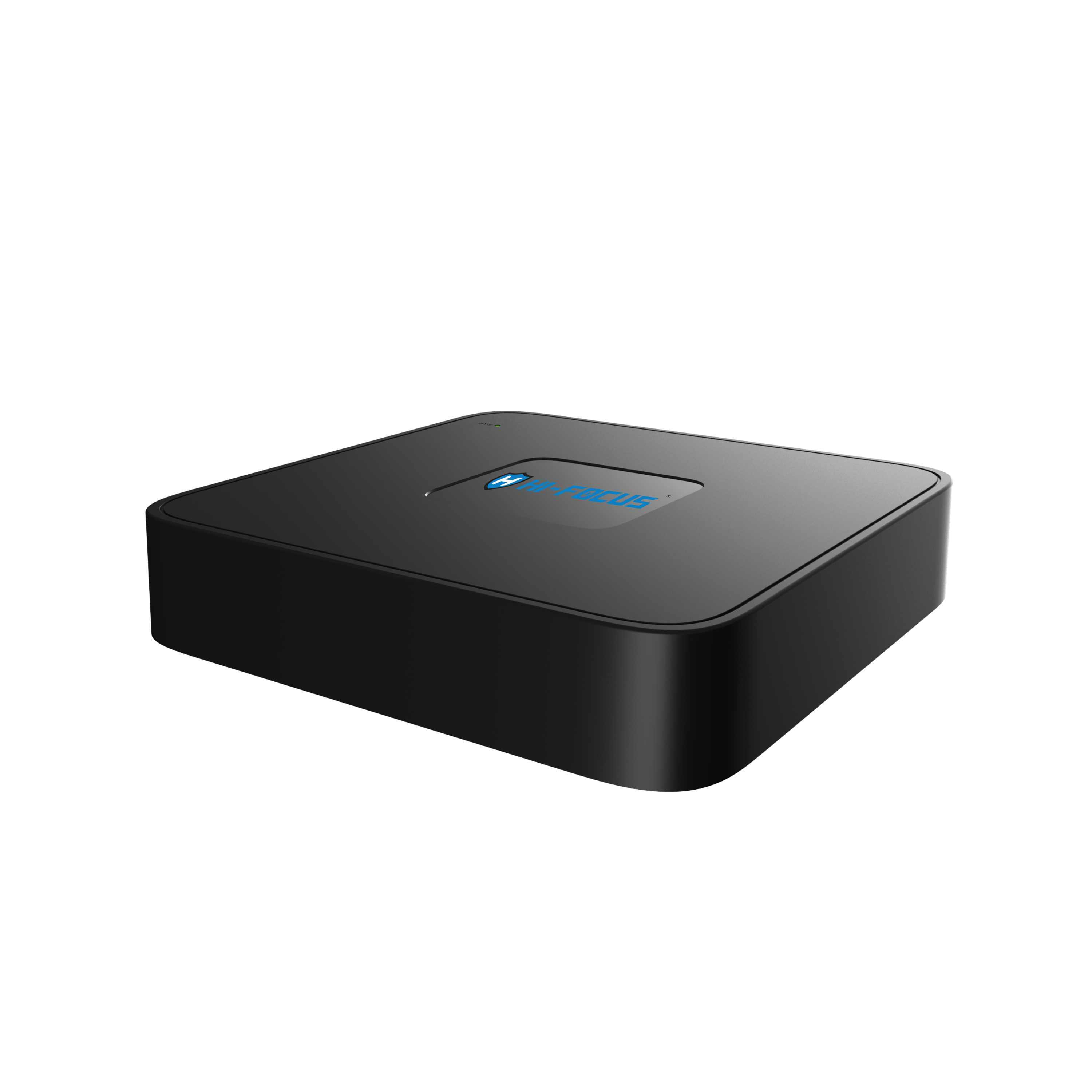

Hi Focus 4 CHANNEL PoE NETWORK VIDEO RECORDER — HD-NVR-2104I-4P

🛡️ 2 Years Warranty

Design and specifications are subject: to change without notice. Visit

HiFocusCctv.com for the latest product: information /specification.

4CH NVR: 60Mbps Incoming / 40Mbps Outgoing Bandwidth

Max Resolution: 6MP/5MP/4MP/3MP/1080P/UXGA/

720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF: 720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Compression: Smart H.265+ / H.265 / H.264+ / H.264

Video Output: HDMI & VGA up to 1080P

Multi Display: 1/2/3/4CH Split

Product details

HI FOCUS · PRIME SERIES

HD-NVR-2104I-4P — 4 CHANNEL PoE NETWORK VIDEO RECORDER

🛡️ 2 Years Warranty

Exact official model data organised for clear comparison, project planning and installation.

Product overview

The HD-NVR-2104I-4P is a Hi Focus 4 channel poe network video recorder for centralised video recording in homes, offices, retail, schools, warehouses, apartments and commercial projects. Supports up to 4 Channels with 60Mbps bandwidth for smooth and reliable small-scale surveillance applications. Delivers clear imaging up to 6MP with efficient decoding for real-time preview and playback performance. Built-in PoE ports enable easy plug-and-play installation, reducing cabling complexity and deployment time. Smart AI features including human/vehicle classification ensure accurate detection and reduced false alarms. Compact and energy-efficient design with flexible storage support makes it ideal for homes and small businesses.

This listing is model-specific: the SKU, official image and technical source have been checked against the current HiFocus catalogue. Similar-looking suffix variants may use different sensors, channel limits, storage interfaces or analytics, so always order by the complete model number.

Design and specifications are subject

Design and specifications are subject to change without notice. Visit

HiFocusCctv.com for the latest product

HiFocusCctv.com for the latest product information /specification.

4CH NVR

4CH NVR – 60Mbps Incoming / 40Mbps Outgoing Bandwidth

Max Resolution

Max Resolution – 6MP/5MP/4MP/3MP/1080P/UXGA/

720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Compression

Compression – Smart H.265+ / H.265 / H.264+ / H.264

Video Output

Video Output – HDMI & VGA up to 1080P

Multi Display

Multi Display – 1/2/3/4CH Split

Official technical highlights

Design and specifications are subject to change without notice. Visit	HiFocusCctv.com for the latest product information /specification.
4CH NVR – 60Mbps Incoming / 40Mbps Outgoing Bandwidth	Max Resolution – 6MP/5MP/4MP/3MP/1080P/UXGA/
720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF	Compression – Smart H.265+ / H.265 / H.264+ / H.264
Video Output – HDMI & VGA up to 1080P	Multi Display – 1/2/3/4CH Split
Playback – 4CH Simultaneous Playback	Storage – 1×SATA, Up to 8TB HDD Capacity
AI by Camera – Human & Vehicle Classification	PoE – 4 Ports, 32W Budget (30W/Port)
Compatibility – ONVIF (Profile S/T), CGI, SDK, P2P	4 CHANNEL PoE NETWORK VIDEO RECORDER
HD-NVR-2104I-4P	Supports up to 4 Channels with 60Mbps bandwidth for smooth and reliable small-scale surveillance applications.
Delivers clear imaging up to 6MP with efficient decoding for real-time preview and playback performance. Built-in PoE	ports enable easy plug-and-play installation, reducing cabling complexity and deployment time. Smart AI features including
human/vehicle classification ensure accurate detection and reduced false alarms. Compact and energy-efficient design	with flexible storage support makes it ideal for homes and small businesses.
SYSTEM OVERVIEW	ABOUT HIFOCUS
HI-FOCUS is a trusted leader in surveillance and networking solutions with more than a Decade of experience in	CCTV Industry. We deliver innovative, reliable, and high-performance security products designed to meet global
quality standards. Every HI-FOCUS product is engineered with precision and rigorously tested to ensure superior	performance and customer satisfaction.
4CH NVR	MULTI RECORDING
6 MP MAX	RESOLUTION
1 SATA SLOT	UPTO 8TB
4 POE	PORTS
AI BY	CAMERA
4CHANNEL PoE NETWORK VIDEO RECORDER \| HD-NVR-2104I-4P	Supports 4 channels with resolutions from 6MP to
QCIF for flexible camera integration. Delivers	smooth performance with 60 Mbps incoming and
40 Mbps outgoing bandwidth. Ensures efficient live	view, recording, and playback with strong
decoding capability.	Video & Performance
Compatible with ONVIF (Profile S/T), CGI, SDK, and	P2P. Supports multiple protocols including IPv4/IPv6,
RTSP, RTP, and HTTP. Accessible via web browsers	and mobile apps on Android and iOS.
Network & Compatibility	Supports scheduled and alarm-based recording
modes. Playback includes instant replay, slow/fast	motion, and digital zoom. Allows up to 4-channel
simultaneous playback for easy review.	Recording & Playback
Supports 1 SATA HDD up to 8TB for storage.	Includes USB ports, HDMI, VGA, and RJ-45 network
interface. Ensures reliable connectivity for	surveillance systems.
Storage & Interfaces	PoE Support
Equipped with 4 PoE ports for direct camera connection. Total PoE budget of 32W with up to 30W per port.	Complies with IEEE 802.3af/at standards.
Video and Audio	Channel 4
Outgoing Bandwidth	6MP/5MP/4MP/3MP/1080P/
UXGA/720P/VGA/4CIF/DCIF/	2CIF/CIF/QCIF
Preview Decoding Capability	Playback Decoding Capability
Incoming Bandwidth 60Mbps	Video Compression Smart H.265+, H.265,
Smart H.264+, H.264	Stream Type Video, Video & Audio
Network Protocol ARP, DDNS, DHCP, DNS, Easy	DDNS, HTTP, ICMP, IGMP, IPv4,
IPv6, NTP, RTCP, RTP, RTSP,	SSH, TCP, UDP, Unicast, UPnP
Audio Compression G711A, G711U, ADPCM_DIV4	40Mbps
Android, iOS, P2P Moblie Client	IE10+, Firefox52+, Edge89+,
Safari11+, Chrome57+	Up to 4 channels Multi-channel Playback
Local HDD	Play/Pause/Stop/Slow/Speed/
Backwards 30s/Forwards 30s/	Full Screen/Backup
(Video Editing)/Digital Zoom	Storage Method
Motion Detection, Mask Alarm,	Alarm Input(IPC)
General Alarm	Smart Alarm, Human/
Vehicle Classification	AI by Camera
1×SATA interface ,	Up to 6 TB capacity
for each HDD	Hard Disk Capacity
Video Loss, Network	Disconnected, No Disk,
Illegal Access, Disk Full,	Disk R/W Error, Recording
Abnormal, Abnormal found in	smart of disk, Abnormal
temperature of the disk,	PoE Overload, Voltage Alarm
(IPC), RTC Failure, IP Address	Conflict, MAC Address Conflict
Exception Notification	Playback Function
Alarm Recording,	Schedule Recording
Record Mode	Web
Recording	Alarm
Intelligent Analytics	Storage
CORE FEATURES	6MP(30fps)×1, 5MP(30fps)×1,
4MP(30fps)×1, 3MP(30fps)×2,	1080P(30fps)×3, 720P(30fps)×4,
4CIF(30fps)×4	Compatibility
VGA Output	ONVIF(Profile S/T), CGI, SDK, P2P
HDMI Output HDMI: 1024×768(60Hz), (720P )	1280×720(50Hz/60Hz), 1280×800
(60Hz), 1440×900(60Hz),	(1080P)1920×1080(50Hz/60Hz)
Multi-screen Display Simultaneous Output:	VGA: 1/2/3/4
HDMI: 1/2/3/4	VGA: 1024×768(60Hz), (720P )
Compression Standard	Network
External Port	PoE
General	USB 2×USB2.0
PoE Interface 4×RJ45, 10/100 Mbps self-adaptive Ethernet port	Power per PoE Port 30W
VGA 1×VGA	HDMI 1×HDMI
PoE Budget 32W	Standard IEEE 802.3 af/at
Power Supply DC48V	Power Consumption <10W(without HDD&without PoE)
NetWeight 0.44kg	GrossWeight 0.81kg
Boundary Dimensions 200(L)200(W)43(H)mm	Package Dimensions 315(L)70(W)235(H)mm
Operating Temperature -10°C~+55°C (+14°F~+131°F)	Storage Temperature -20°C~+60°C (-4°F~+140°F)
Operating Humidity 10%~90%RH (non-condensing)	Network Interface 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
Dimensions	201mm
40mm	43mm

Feature availability and performance limits are specific to this exact model. Manufacturer specifications can be revised without notice.

Buying and installation guidance

Confirm camera count, input technology, supported resolution, incoming bandwidth, display output, SATA-bay count and target retention period. A surveillance HDD is not included unless the order explicitly says so. Use a suitable UPS, allow ventilation and change all default passwords during commissioning.

Compatibility checklist

Match the complete SKU and suffix, not only the channel count or megapixel label.
Confirm camera, recorder, codec, resolution, bandwidth and power compatibility.
Plan storage from camera count, bitrate, frame rate, recording schedule and retention days.
Use surveillance-grade storage and installation materials suited to the environment.
Keep the purchase invoice and device serial number for warranty or service support.

Frequently asked questions

Is this the exact Hi Focus HD-NVR-2104I-4P model?

Yes. The model number and product media were matched with HiFocus official catalogue sources before publication.

Does the displayed selling price include GST?

For priced items, the website selling price is GST-inclusive. The dealer price list supplied the SPP before GST, and the selling price was calculated using the approved GST and margin rule.

Are HDD, cable, power supply or installation included?

Only items explicitly shown in the order description are included. Storage drives, cabling, power accessories, mounting materials and installation are normally separate.

Can this model be mixed with another brand?

Cross-brand compatibility depends on the video standard, ONVIF profile, codec, resolution and supported functions. Confirm critical integrations before ordering.

What warranty applies?

This HiFocus product includes a 2 Years Warranty. Keep the original purchase invoice and device serial number for warranty service.

Technical references: official product page · official datasheet. Verify critical tender or project specifications against the latest manufacturer document before installation.
