Up to 6MP IP Cameras • H.265+ • Hik-Connect • Compact
The Small IP System’s Backbone

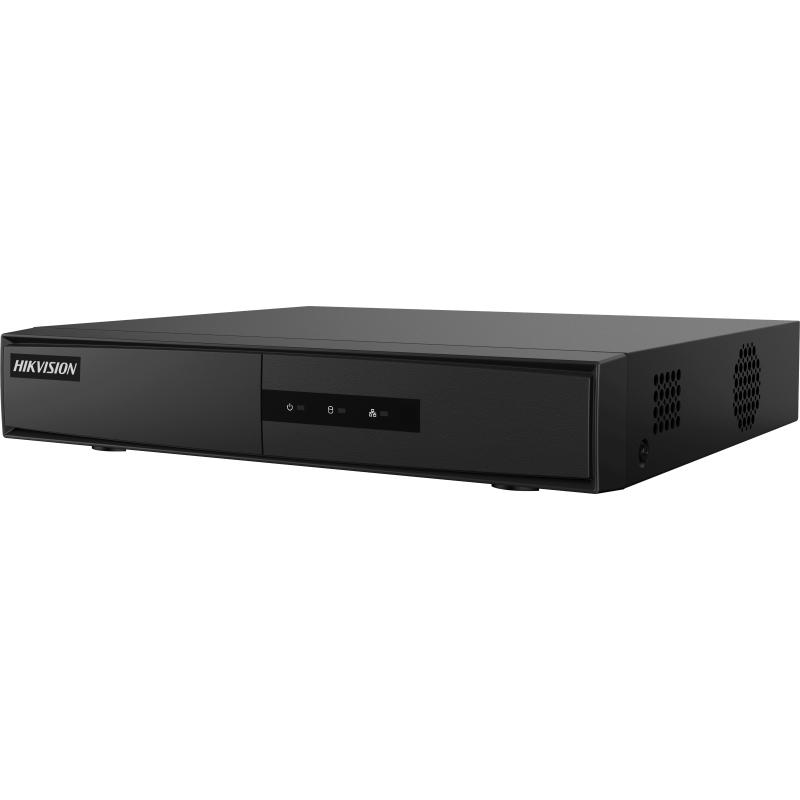

The Hikvision DS-7104NI-Q1/M is the tidy heart of a 4-camera IP system: it records network cameras up to 6MP each with 40 Mbps of incoming bandwidth, compresses everything with H.265+ so one hard disk lasts weeks, and streams the whole setup to your phone through Hik-Connect — free, from anywhere.
ONVIF support means it isn’t fussy about camera brands, HDMI and VGA feed the monitor in Full HD, and the compact fanless-quiet chassis sits happily on any shelf. Pair it with a CP Plus PoE switch from our range and four IP cameras — a complete modern system, done.
🗜️ H.265+ = Weeks Per Disk
Hikvision’s smart compression cuts bitrate hardest on static scenes — a 2TB disk stretches far beyond what H.264 recorders manage.
🔄 ONVIF Freedom
Hikvision, CP Plus or other ONVIF IP cameras — mix as your site grows; the NVR records them all.
📊 Full Technical Specifications — DS-7104NI-Q1/M
Model
DS-7104NI-Q1/M
IP Channels
4, up to 6MP per camera
Incoming Bandwidth
40 Mbps
Compression
H.265+ / H.265 / H.264+ / H.264
Storage
1 SATA, up to 6TB
Output
HDMI + VGA, up to 1920×1080
Network
RJ45 10/100; Hik-Connect, DDNS, ONVIF
Body / Power
Compact 1U; 12V DC
Warranty
2 Years Hikvision India
❓ Frequently Asked Questions
Q1/M or Q1/4P/M? This Q1/M needs a separate PoE switch (more flexible placement); the 4P/M builds 4 PoE ports in for plug-and-play. Both excellent — layout decides.
Which cameras pair well? Any Hikvision or CP Plus IP camera up to 6MP — we’ll spec the set with you.
HDD advice? 1–2TB surveillance-grade covers most 4-camera sites for 2–4 weeks; fitted and configured on request.
Phone viewing? Free Hik-Connect — live, playback and notifications; setup help included.
Save -23% on Hikvision 4 Channel NVR | H.265+ | Up to 6MP IP Cameras | 1 SATA | Hik-Connect | 2 Year Warranty | DS-7104NI-Q1/M! Only ~₹6,881.00~ ₹5,293.00 — ask us before it's gone.
