Hi Focus 4 CHANNEL NETWORK VIDEO RECORDER | HD-NVR-4104TL-B | 2 Years Warranty

HI FOCUS · VELOCITY SERIES

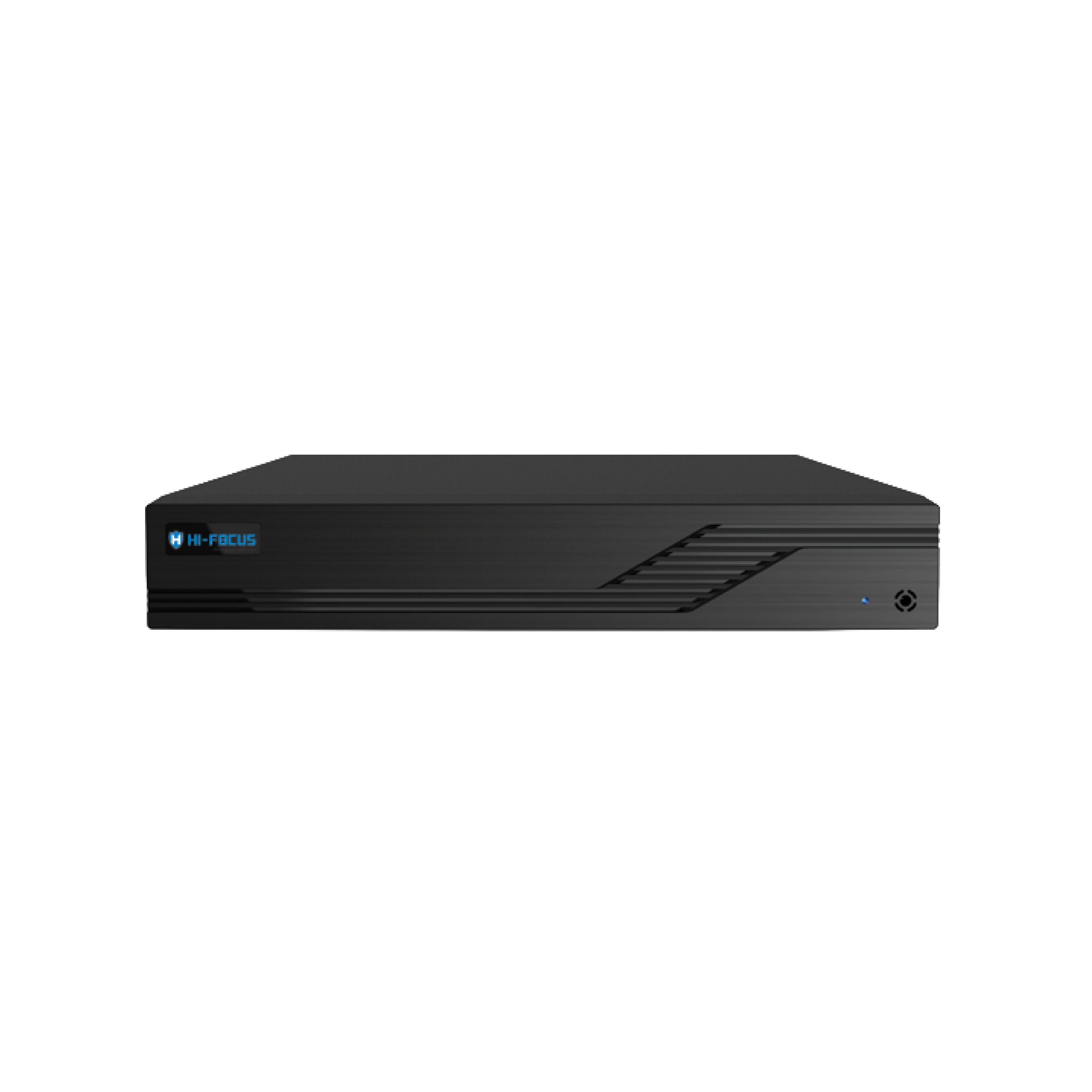

HD-NVR-4104TL-B — 4 CHANNEL NETWORK VIDEO RECORDER

🛡️ 2 Years Warranty

Exact official model data organised for clear comparison, project planning and installation.

Product overview

The HD-NVR-4104TL-B is a Hi Focus 4 channel network video recorder for centralised video recording in homes, offices, retail, schools, warehouses, apartments and commercial projects. Product Features ≥ 4 CH Support 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input ≥ Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate ≥ Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse ≥ Multi-mode recording: manual / timer / motion ≥ Playback : 4 / 8 CH simultaneously playback ≥ Search: time slice, time, event ( manual, Sensor,Motion ), tag search ≥ Express and flexible backup via USB, network and so on Pentaplex: preview, record, playback, backup and remote access ≥ DHCP, DDNS, PPPoE network protocol,and CMS supported ≥ Remote control via IE or CMS : Preview, Playback, backup, PTZ and configuration ≥ Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device ≥ Multi-user online simultaneously ≥ Authorization management, log review and device status review ≥ Support 1080P output, true high resolution display ≥ Support PTZ preset and auto cruise, up to 255 presets and 8 cruises ≥ Support NAT function and QR Code Scanning by Mobile Phone and PAD ≥ Powerful Smart Phone&Pad Surveillance with iOS and Andriod OS

This listing is model-specific: the SKU, official image and technical source have been checked against the current HiFocus catalogue. Similar-looking suffix variants may use different sensors, channel limits, storage interfaces or analytics, so always order by the complete model number.

Official technical highlights

Feature availability and performance limits are specific to this exact model. Manufacturer specifications can be revised without notice.

Buying and installation guidance

Confirm camera count, input technology, supported resolution, incoming bandwidth, display output, SATA-bay count and target retention period. A surveillance HDD is not included unless the order explicitly says so. Use a suitable UPS, allow ventilation and change all default passwords during commissioning.

Compatibility checklist

• Match the complete SKU and suffix, not only the channel count or megapixel label.
• Confirm camera, recorder, codec, resolution, bandwidth and power compatibility.
• Plan storage from camera count, bitrate, frame rate, recording schedule and retention days.
• Use surveillance-grade storage and installation materials suited to the environment.
• Keep the purchase invoice and device serial number for warranty or service support.

Frequently asked questions

Is this the exact Hi Focus HD-NVR-4104TL-B model?

Yes. The model number and product media were matched with HiFocus official catalogue sources before publication.

Does the displayed selling price include GST?

For priced items, the website selling price is GST-inclusive. The dealer price list supplied the SPP before GST, and the selling price was calculated using the approved GST and margin rule.

Are HDD, cable, power supply or installation included?

Only items explicitly shown in the order description are included. Storage drives, cabling, power accessories, mounting materials and installation are normally separate.

Can this model be mixed with another brand?

Cross-brand compatibility depends on the video standard, ONVIF profile, codec, resolution and supported functions. Confirm critical integrations before ordering.

What warranty applies?

This HiFocus product includes a 2 Years Warranty. Keep the original purchase invoice and device serial number for warranty service.
