Name: Hi Focus HD-NVR-524160I Price | 160 CHANNEL NETWORK VIDEO RECORDER | 2 Year Warranty
Brand: Hi Focus
SKU: HD-NVR-524160I

Product details

HI FOCUS · PRIME SERIES

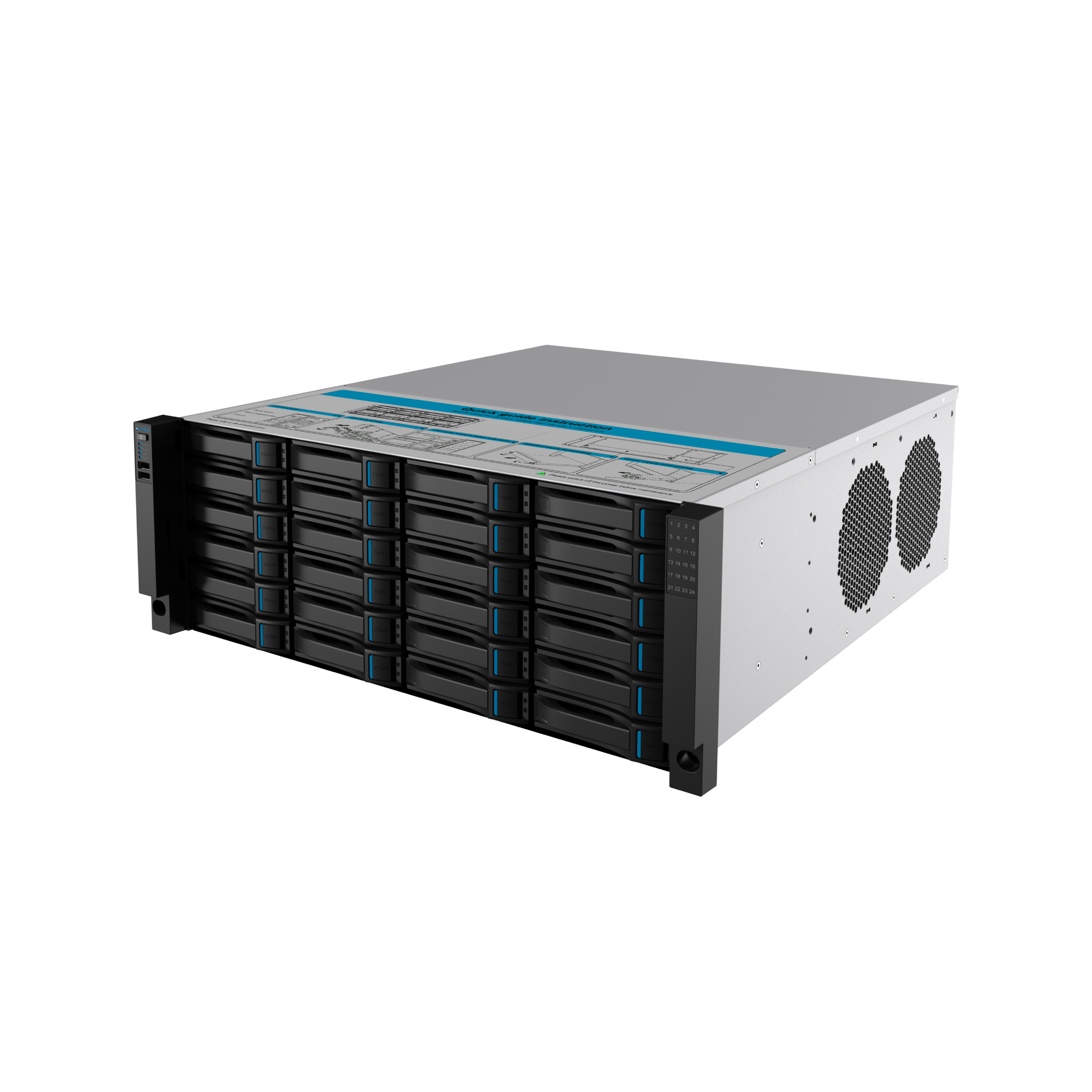

HD-NVR-524160I — 160 CHANNEL NETWORK VIDEO RECORDER

🛡️ 2 Years Warranty

Exact official model data organised for clear comparison, project planning and installation.

Product overview

The HD-NVR-524160I is a Hi Focus 160 channel network video recorder for centralised video recording in homes, offices, retail, schools, warehouses, apartments and commercial projects. Supports up to 160 Channels with massive 800Mbps incoming bandwidth, designed for ultra-large enterprise surveillance deployments. Delivers ultra-high resolution up to 16MP with powerful decoding for seamless live view and playback across extensive camera networks. Advanced AI capabilities including face recognition, license plate recognition, perimeter protection, and intelligent behavior analysis. High-capacity storage with up to 24 SATA drives, RAID support, and hot swappable design ensures maximum data security and scalability. Built for mission-critical operations with redundant power supply, quad network ports, and robust multi-display output for continuous performance.

This listing is model-specific: the SKU, official image and technical source have been checked against the current HiFocus catalogue. Similar-looking suffix variants may use different sensors, channel limits, storage interfaces or analytics, so always order by the complete model number.

Design and specifications are subject

Design and specifications are subject to change without notice. Visit

HiFocusCctv.com for the latest product

HiFocusCctv.com for the latest product information /specification.

160 CH NVR

160 CH NVR – 800Mbps Incoming / 400Mbps Outgoing Bandwidth

Max Resolution

Max Resolution – 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/

UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Compression

Compression – Smart H.265+ / H.265 / H.264+ / H.264

Video Output

Video Output – HDMI Upto 4k & VGA up to 1080P

Multi Display

Multi Display – 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/

Official technical highlights

Design and specifications are subject to change without notice. Visit	HiFocusCctv.com for the latest product information /specification.
160 CH NVR – 800Mbps Incoming / 400Mbps Outgoing Bandwidth	Max Resolution – 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/
UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF	Compression – Smart H.265+ / H.265 / H.264+ / H.264
Video Output – HDMI Upto 4k & VGA up to 1080P	Multi Display – 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/
25/32/36/40/64/80	Playback – 16 CH Simultaneous Playback
Storage – 24× SATA Up to 24TB HDD Capacity	AI by Camera – Tripwire, Double Tripwire, Perimeter,
Object Abandon/Missing, Loitering, Face Detection,	Running, Parking, Crowd Detection etc.
160 CHANNEL NETWORK VIDEO RECORDER	HD-NVR-524160I
Supports up to 160 Channels with massive 800Mbps incoming bandwidth, designed for ultra-large enterprise surveillance	deployments. Delivers ultra-high resolution up to 16MP with powerful decoding for seamless live view and playback across
extensive camera networks. Advanced AI capabilities including face recognition, license plate recognition, perimeter	protection, and intelligent behavior analysis. High-capacity storage with up to 24 SATA drives, RAID support, and hot
swappable design ensures maximum data security and scalability. Built for mission-critical operations with redundant	power supply, quad network ports, and robust multi-display output for continuous performance.
SYSTEM OVERVIEW	ABOUT HIFOCUS
HI-FOCUS is a trusted leader in surveillance and networking solutions with more than a Decade of experience in	CCTV Industry. We deliver innovative, reliable, and high-performance security products designed to meet global
quality standards. Every HI-FOCUS product is engineered with precision and rigorously tested to ensure superior	performance and customer satisfaction.
160 CH NVR	MULTI RECORDING
16 MP MAX	RESOLUTION
24 SATA SLOT	UPTO 24TB
INCOMING/OUTGOING	BANDWIDTH
AI FEATURES	BY CAMERA
400 MBPS	160 CHANNEL NETWORK VIDEO RECORDER \| HD-NVR-524160I
Supports 160 channels with 800 Mbps	incoming and 400 Mbps outgoing bandwidth.
Resolutions range from 16MP to QCIF. Preview	and playback decoding support multiple
streams simultaneously..	Video & Audio Channels
HDMI supports up to 4K (3840×2160), VGA up	to 1080P. Multi-screen display allows flexible
channel assignment on HDMI1, HDMI2, and	VGA. Supports 1–80 channels per output.
Display & Multi-Screen Support	Includes motion detection, mask alarm, and
IPC/NVR alarm inputs. Exception notifications	cover video loss, disk errors, illegal access,
and network issues. Alarm I/O supports 16	inputs and 8 outputs.
Alarm & Exception Handling	AI by camera includes perimeter, tripwire, object
detection, license plate recognition, crowd	detection, and face recognition. Supports
temperature monitoring and smart alerts. VCA	search allows attribute- and event-based queries.
Intelligent Analytics	Face Recognition
Storage & RAID	Detects gender, age, glasses, face mask, and
body temperature. Supports up to 300 face	libraries and 100,000 base images.
Face picture comparison is supported	for identification.
Supports 24 SATA drives up to 24 TB each. RAID	modes include JBOD, 0, 1, 5, 6, 10, 50, and 60
with hot-swapping. Interfaces include eSATA,	USB 2.0/3.0, and 4 RJ-45 network ports.
Two-Way Audio 1CH	Audio Compression G711A,G711U, AAC,ADPCM_DIV4
Video and Audio	Channel 160
Outgoing Bandwidth	16MP/12MP/8MP/6MP/5MP/4MP
/3MP/1080P/UXGA/720P/VGA/	4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability	Compatibility ONVIF(Profile S/T), RTSP
Incoming Bandwidth 800Mbps	Video Compression Smart H.265+, H.265,
Smart H.264, H.264	Stream Type Video, Video & Audio
Network Protocol ARP, DDNS, DHCP, DNS, Easy	DDNS, FTP, HTTP, HTTPS, ICMP,
IGMP, IPv4, IPv6, Multicast,	NFS, NTP, PPPoE, RTCP, RTP,
RTSP, SMB/CIFS, SMTP, SNMP	v1, SRTP, SSH, SSL, TLSv1.2,
TCP/IP, UDP, Unicast, UPnP	400Mbps
Android, iOS, P2PMoblie Client	ONVIF(Profile S/T/G), RTSP,
CGI, SDK, P2P	System Compatibility
Web IE10+, Firefox52+, Edge89+,	Safari11+, Chrome57+
Playback Function Play/Pause/Stop/Slow/	Speed/Backwards 30s/
Forwards 30s/Full Screen/	Backup (Video Editing)/
Step/Digital Zoom	Multi-channel Playback 16
Storage Method Local HDD	Backup USB storage device, Network
General Alarm Motion Detection,	Mask Alarm,
Alarm Input(IPC),	Alarm Input(NVR)
Record Mode Manual Recording,	Alarm Recording,
Schedule Recording	Recording
Alarm	CORE FEATURES
16MP(30fps)×3, 12MP(30fps)×4,	8MP(30fps)×7, 6MP(30fps)×9,
5MP(30fps)×11, 4MP(30fps)×14,	3MP(30fps)×18, 1080P(30fps)×
28, 720P(30fps)×56, 4CIF	(30fps)×80
Playback Decoding Capability 16MP(30fps)×3, 12MP(30fps)×4,	8MP(30fps)×6, 6MP(30fps)×8,
5MP(30fps)×9, 4MP(30fps)×12,	3MP(30fps)×16, 1080P(30fps)×16,
720P(30fps)×16	VGA Output
Audio Input 1CH	Audio Output 1CH
HDMI Output HDMI: 800×600(60Hz),	1024×768(60Hz), 1280×720
(50Hz/60Hz), 1280×800(60Hz),	1366×768(60Hz), 1440×900
(60Hz), 1920×1080(50Hz/60Hz),	2560×1440(30Hz/60Hz),
2560×1600(60Hz), (4K)	3840×2160(30Hz/60Hz)
Multi-screen Display HDMI1/VGA1: 1/2/3/4/5/6/7/8/	9/10/12/13/16/20A/20B/25/
32/36/40/64/80 HDMI2: 1/	2/3/4/5/6/7/8/9/10/12/13/16/
20A/20B/25/32/36/40/64/80	VGA: 800×600(60Hz),
(60Hz), 1920×1080(50Hz/60Hz)	Compression Standard
Network	Video Loss, Network Disconnected, No Disk, Illegal Access,
Disk group space alert, Disk Full, Disk R/W Error, Recording	Abnormal, Abnormal found in smart of disk, Abnormal t
emperature of the disk, Hot spare Exception, Array Exception,	Voltage Alarm(IPC), RTC Failure, IP Address Conflict, MAC
Address Conflict	Exception Notification
Gender, Age, Glasses, Face Mask, Body TemperatureFace Attributes Search	Gender, Age, Glasses, Face Mask, Body TemperatureFace Picture Comparison
Up to 300 face libraries ,Up to 100000 base images Face Picture Library	16CH IN, 4CH OUTAlarm I/O
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object	Missing, Running, Parking, Heatmap, Loitering, Video
Abnormal, Audio Abnormal, License Plate Recognition,	On Duty Detection, Crowd Detection, Parking Guard, Safety
Helmet Detection, Electric Bicycle Detection, People	Counting, Link to Tracking, Smoke and Fire Detection,
Environmental Temperature Measurement, Face Detection,	Human Body Temperature Measurement, Smart Alarm,
Face Recognition, Human/Vehicle Classification	AI by Camera
Heatmap, Early-warning Search, Behavior Search,	License Plate Search, Safety Helmet Search, Thermographic
Retrieval, Duty Search, Electric Bicycle Retrieval, Face Search	VCA Search
24 SATA upto 24TB Hard Disk Hard Disk Capacity	SupportedHot Swapping
JBOD, RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60 RAID	Storage
1×eSATA	RS-232
INTERFACE	100~240V AC; Redundant Power SupplyPower Supply
2×USB2.0, 1×USB3.0 USB	1×RS232
eSATA	NetWeight
Boundary Dimensions	Package Dimensions
Operating Temperature	Operating Humidity
Storage Temperature	GrossWeight
8 )%%OPUJODMVEFE	20.55Kg
780(L)710(W)330(H)mm	Power Consumption
ʷ3+	.CQTTFMGBEBQUJWF&UIFSOFUQPSUNetwork Interface
ʷ34RS-485	General
10°C~+55°C (+14°F~+131°F)	20°C~+60°C (-4°F~+140°F)
10%~90%RH (non-condensing)	530(L)484.5(W)174.5(H)mm
15.4Kg	Dimensions
485mm	174mm
530mm	501mm

Feature availability and performance limits are specific to this exact model. Manufacturer specifications can be revised without notice.

Buying and installation guidance

Confirm camera count, input technology, supported resolution, incoming bandwidth, display output, SATA-bay count and target retention period. A surveillance HDD is not included unless the order explicitly says so. Use a suitable UPS, allow ventilation and change all default passwords during commissioning.

Compatibility checklist

Match the complete SKU and suffix, not only the channel count or megapixel label.
Confirm camera, recorder, codec, resolution, bandwidth and power compatibility.
Plan storage from camera count, bitrate, frame rate, recording schedule and retention days.
Use surveillance-grade storage and installation materials suited to the environment.
Keep the purchase invoice and device serial number for warranty or service support.

Frequently asked questions

Is this the exact Hi Focus HD-NVR-524160I model?

Yes. The model number and product media were matched with HiFocus official catalogue sources before publication.

Does the displayed selling price include GST?

For priced items, the website selling price is GST-inclusive. The dealer price list supplied the SPP before GST, and the selling price was calculated using the approved GST and margin rule.

Are HDD, cable, power supply or installation included?

Only items explicitly shown in the order description are included. Storage drives, cabling, power accessories, mounting materials and installation are normally separate.

Can this model be mixed with another brand?

Cross-brand compatibility depends on the video standard, ONVIF profile, codec, resolution and supported functions. Confirm critical integrations before ordering.

What warranty applies?

This HiFocus product includes a 2 Years Warranty. Keep the original purchase invoice and device serial number for warranty service.

Technical references: official product page · official datasheet. Verify critical tender or project specifications against the latest manufacturer document before installation.

Additional information

Brand	Hi Focus
Model Number	HD-NVR-524160I
Product Type	Network Video Recorder (NVR)
Series	Prime
Resolution	12MP
Channels	160 Channel
Warranty	Manufacturer warranty as applicable
