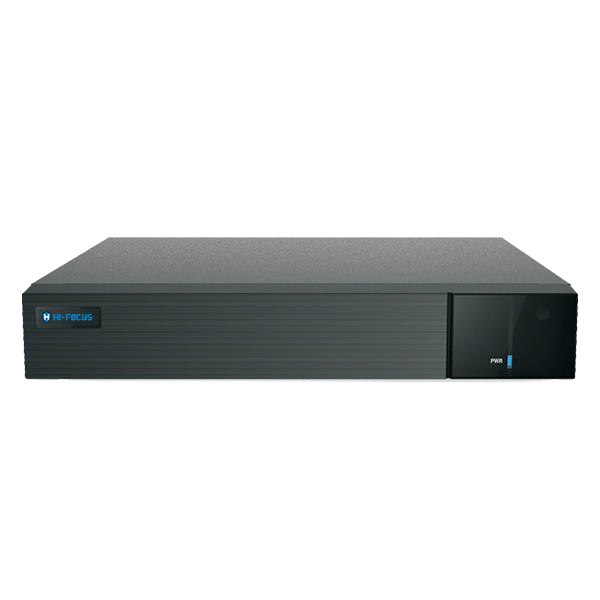

Name: Hi Focus HD-XVR-5104TLC Price | 4 CHANNEL XVR | 2 Year Warranty
Brand: Hi Focus
SKU: HD-XVR-5104TLC
Price: 5700.00 INR
Availability: InStock

Product details

HI FOCUS · VELOCITY SERIES

HD-XVR-5104TLC — 4 CHANNEL XVR

🛡️ 2 Years Warranty

Exact official model data organised for clear comparison, project planning and installation.

Product overview

The HD-XVR-5104TLC is a Hi Focus 4 channel xvr for centralised video recording in homes, offices, retail, schools, warehouses, apartments and commercial projects. Official Hi Focus hi focus security product designed for professional video-surveillance installations.

This listing is model-specific: the SKU, official image and technical source have been checked against the current HiFocus catalogue. Similar-looking suffix variants may use different sensors, channel limits, storage interfaces or analytics, so always order by the complete model number.

4 CH Support AHD/ TVI

4 CH Support AHD/ TVI / CVI 5MP/4MP/1080P/720P/WD1 video input

Adopt standard H.265 High Profile

Adopt standard H.265 High Profile Compression Format to get high-quality video at much lower bit rate

Intuitive and user-friendly Graphics User

Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse,Multi-mode recording: manual / timer / motion

Playback

Playback : 4 CH imultaneously playback

Search

Search: time slice, time, event, tag search

Express and flexible backup via

Express and flexible backup via USB, network and so on

Pentaplex

Pentaplex: preview, record, playback, backup and remote access

DHCP, DDNS, PPPoE network protocol,

DHCP, DDNS, PPPoE network protocol, IE browser and CMS supported

Official technical highlights

Specification sections: System · Video · Audio · Record · Playback · Alarm · Network · Mobile Device · Storage · Back Up · Port · Environmental

OS	Embedded Linux
Incoming Bandwidth	16Mbps
Outgoing Bandwidth	40Mbps
Video Compression	H.264/H.265
IP Video Input	2CH, Up to 5MP@25fps
Analog Video Input	BNC×4 BNC interface (1.0Vp-p; 75Ω)
Input Resolution	AHD/CVI/ TVI : 5MP/ 4MP/1080P/1080P Lite/720P/720P Lite/WD1
Output	HDMI×1:1920×1080/1280×1024/1024×768 VGA×1:1920×1080/1280×1024/1024×768 BNC×1: CVBS (used as the main or spot output)
Multi-screen Display	1/4/6/9
Local Audio Input	RCA ×1
2-way Audio	Take up Channel One Audio Input
Local Output	RCA × 1 (linear, 600Ω)
Compression	G.711(U/A)
Resolution	5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1
Local Record Frame Rate	5MP Lite :10fps; 4MP Lite/1080P : 12fps (PAL)/15fps (NTSC); 1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC)
Bite Stream	32Kbps – 4Mbps
Simultaneous Playback	4 CH
Search	Time slice / time / event / tag search
Smart Search	Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function	Play, pause, FF, FB, digital zoom, etc
Mode	Manual, motion, exception, smart event
Interface	RJ45 10/100Mbps × 1
Network Protocol	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Client Connection	Max. 5 users access
iOS, Andriod	HDD
SATA×1, upto 10TB	Local Backup
U disk, USB mobile HDD	Network Backup
Yes	RS 485
RS 485 × 1 (half-duplex)	USB
USB2.0×2 (in the rear panel)	Remote Controller
Optional	Power Supply
DC12V/1.5A	Power Consumption
≤ 5W (without HDD)	Working Environment
-10 ~ 50 ℃,10%~90% humidity	Refer to the official datasheet for this model.

Feature availability and performance limits are specific to this exact model. Manufacturer specifications can be revised without notice.

Buying and installation guidance

Confirm camera count, input technology, supported resolution, incoming bandwidth, display output, SATA-bay count and target retention period. A surveillance HDD is not included unless the order explicitly says so. Use a suitable UPS, allow ventilation and change all default passwords during commissioning.

Compatibility checklist

Match the complete SKU and suffix, not only the channel count or megapixel label.
Confirm camera, recorder, codec, resolution, bandwidth and power compatibility.
Plan storage from camera count, bitrate, frame rate, recording schedule and retention days.
Use surveillance-grade storage and installation materials suited to the environment.
Keep the purchase invoice and device serial number for warranty or service support.

Frequently asked questions

Is this the exact Hi Focus HD-XVR-5104TLC model?

Yes. The model number and product media were matched with HiFocus official catalogue sources before publication.

Does the displayed selling price include GST?

For priced items, the website selling price is GST-inclusive. The dealer price list supplied the SPP before GST, and the selling price was calculated using the approved GST and margin rule.

Are HDD, cable, power supply or installation included?

Only items explicitly shown in the order description are included. Storage drives, cabling, power accessories, mounting materials and installation are normally separate.

Can this model be mixed with another brand?

Cross-brand compatibility depends on the video standard, ONVIF profile, codec, resolution and supported functions. Confirm critical integrations before ordering.

What warranty applies?

This HiFocus product includes a 2 Years Warranty. Keep the original purchase invoice and device serial number for warranty service.

Technical references: official product page · official datasheet. Verify critical tender or project specifications against the latest manufacturer document before installation.

Additional information

Brand	Hi Focus
Model Number	HD-XVR-5104TLC
Product Type	Digital Video Recorder (XVR)
Series	Velocity
Resolution	5MP
Channels	4 Channel
Warranty	Manufacturer warranty as applicable
