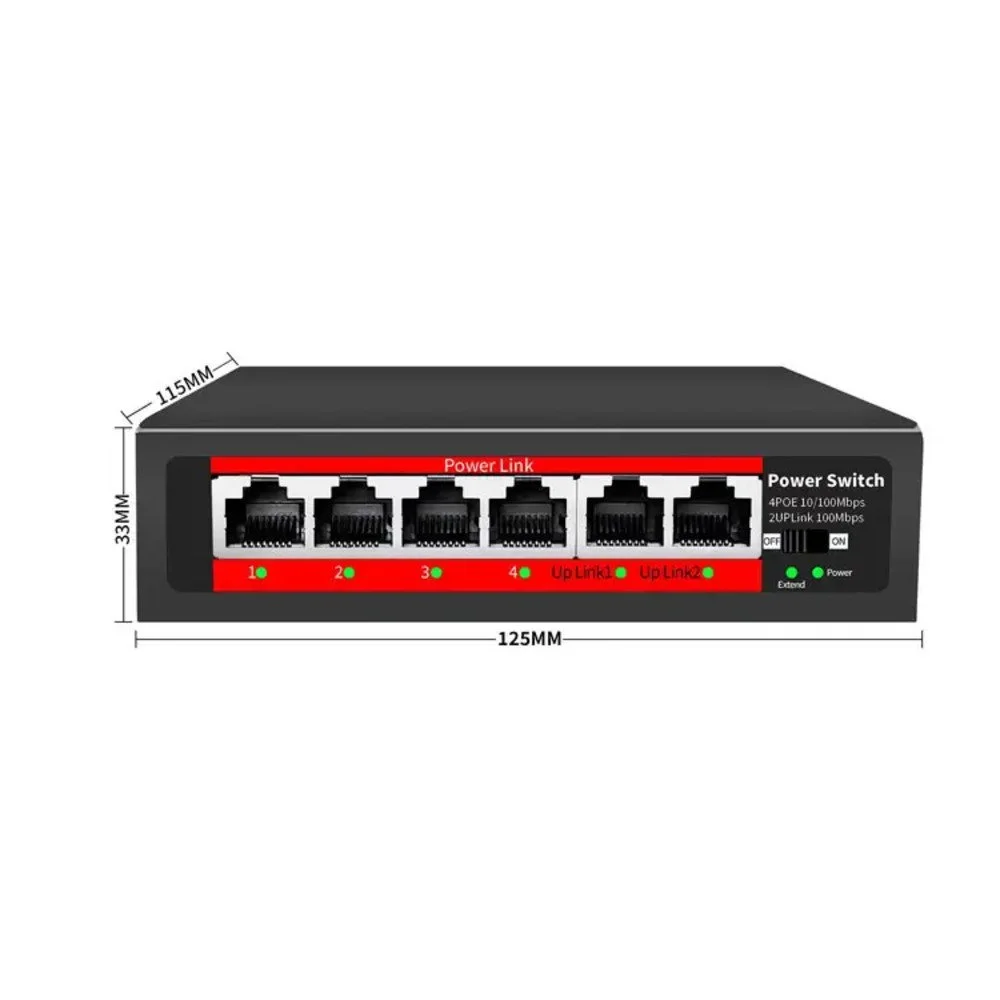

The Prama PT-SW1U06P-E is the PoE switch that makes an IP camera system practical — 4 PoE ports each deliver power and data to a camera over a single Cat6 cable, and 2 uplink ports connect back to your NVR or router. Since Prama NVRs have no built-in PoE, this is the piece that powers the cameras.
Its Extend mode pushes PoE up to 250 metres — far past the usual 100m Ethernet limit — VLAN mode isolates camera ports for security and stability, and a PoE watchdog auto-reboots a camera that hangs. It’s fully plug-and-play (unmanaged), so there’s nothing to configure. Compliant with IEEE 802.3 standards.
📏 250m PoE Reach
Extend mode powers cameras far beyond the 100m limit — reach the far gate or the back of the yard on one run.
🐕 Watchdog + VLAN
Auto-reboot for a frozen camera, plus port isolation so one fault doesn’t disturb the rest.
📊 Full Technical Specifications — PT-SW1U06P-E
Model
PT-SW1U06P-E (4+2 PoE Switch)
PoE Ports
4 × 10/100Mbps PoE (IEEE 802.3af/at)
Uplink Ports
2 × 10/100Mbps RJ45
Modes
Default / VLAN / Extend (up to 250m); PoE watchdog
Switching
Store-and-forward, line-speed, Auto MDI/MDIX
Standards
IEEE 802.3 / 802.3u / 802.3x
Type
Unmanaged, plug-and-play
Warranty
2 Years Prama India
❓ Frequently Asked Questions
How many cameras can it run? Up to 4 PoE cameras on the PoE ports. The total power budget depends on your camera models — we confirm it fits before you buy.
Why do I need a PoE switch? Prama IP NVRs have no built-in PoE, so the cameras get power and data from a switch like this — one cable per camera.
What is Extend mode? It lets PoE reach up to 250m (at 10Mbps) — handy for a distant camera beyond the normal 100m limit.
More cameras? The PT-SW1U10P-E (8 PoE) or PT-SW3U10P-E (8 PoE + Gigabit uplink) scale further.
Direct-to-Customer Dispatch — typically within 24 hours
Compatibility Guidance — PoE budget & camera count checked
Remote Usage Guidance — network setup help
🛠️ Warranty & After-Sales Support
2-Year Prama India Warranty, subject to BuyCCTVs.com invoice and serial validation; we coordinate the complete RMA process. Prama’s warranty runs 2–5 years across its range (many products carry a 3-year replacement warranty) depending on the product and stock availability.
⚠️ Important: Total PoE power budget depends on camera models — confirm the current price, warranty term and stock on WhatsApp before completing your purchase.
