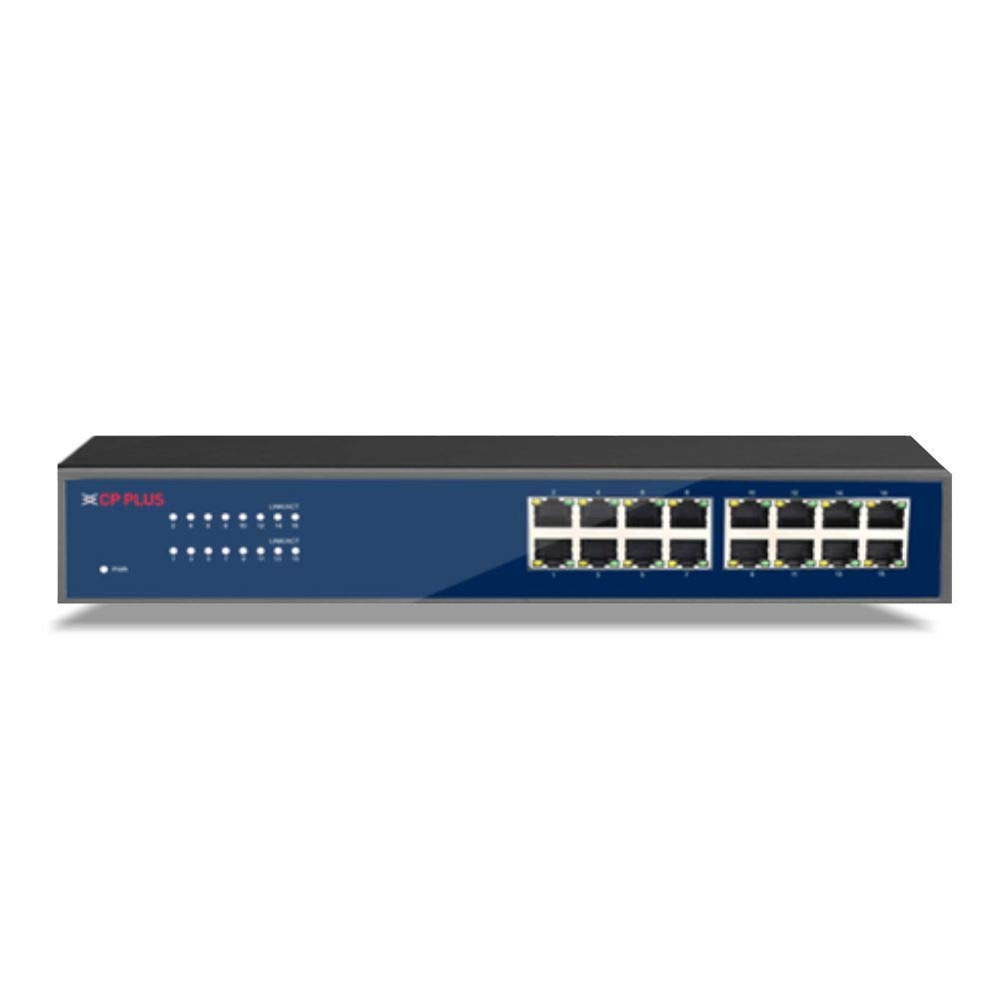

CP Plus 16-Port AI PoE Switch + 2 Gigabit Uplinks + 1 SFP | 300W | 250m Extend | AI Watchdog | 2 Year Warranty | CP-ANW-HP16G2F1-N30
₹9,277.00₹12,061.00 inc.GST (-23%)
CP Plus 16-Port AI PoE Switch — 300W Powerhouse
- 🔌 16 PoE + 2 Gigabit Uplinks + 1 SFP: The complete 16-camera hub.
- ⚡ 300W Budget, up to 60W/Port: Full fleet powered with PTZ capacity to spare.
- 📏 250m Auto Extend Mode: Reach the farthest camera without repeaters.
- 🤖 AI PoE Watchdog: Auto-detects and restarts hung cameras.
- 🛡️ Full Protection Suite: 6KV lightning, 8KV surge, over-current/voltage/temperature, short-circuit.
- 🔄 Plug & Play: Rack-ready 19″ metal body.
Frequently Bought Together
-
₹1,264.00
₹1,644.00inc.GSTCP Plus 2U DVR NVR Rack | Welded Steel | 3-Socket PDU | 450x350MM | Lockable | CP-HA-RK4535VW-2U
₹1,264.00₹1,644.00inc.GST Add to cart
Product details
⚡ CP PLUS 16-PORT AI PoE — 300W
16 Cameras • 250m Extend • AI Watchdog • Rack-Ready
One Box, Sixteen Cameras, Zero Excuses
Large sites need a switch that doesn’t negotiate. The CP Plus CP-ANW-HP16G2F1-N30 brings a massive 300W PoE budget across 16 ports — with up to 60W available per port, so even a PTZ or two sits comfortably in the plan. Two gigabit uplinks carry the combined streams to your NVR at full speed, and a 1× SFP fiber slot stands ready when the control room is a building away.
The details are what make it install-friendly: 250m automatic extend mode reaches the far perimeter camera on ordinary cable, the AI PoE Watchdog auto-restarts any camera that hangs, and a full protection suite — 6KV lightning, 8KV surge, over-current, over-voltage, over-temperature and short-circuit — guards the whole 19″ rack-mount metal chassis from -30°C to 60°C.
📏 250m Without Repeaters
Extend mode engages automatically on long runs — the gate camera 200m out connects on a single cable, no mid-span switch, no extra power point.
⚡ 300W = Real Headroom
16 typical cameras draw well under 200W — the 300W budget absorbs IR night loads, dual-light models and future additions without recalculating anything.
📊 Full Technical Specifications — CP-ANW-HP16G2F1-N30
| Model | CP-ANW-HP16G2F1-N30 |
| PoE Ports | 16× RJ45 10/100Mbps (port 16 up to 1000Mbps, bt-compatible) |
| Uplink Ports | 2× RJ45 Gigabit + 1× SFP 10/100/1000Mbps |
| PoE Standards | IEEE 802.3af/at/bt |
| Per-Port Power | Up to 60W |
| Total PoE Budget | 300W |
| Extend Mode | Automatic 250m long-distance transmission on FE ports |
| AI Function | PoE Watchdog — auto-detect & auto-restart hung cameras |
| Switching Capacity | 12.8 Gbps, 8K MAC table |
| Protection | 6KV lightning, 8KV surge, over-current/voltage/temperature, short-circuit, anti-reverse |
| Body / Operating Temp | 19″ rack-mount metal (430×180×45mm), -30°C to 60°C |
| Warranty | 2 Years CP Plus India |
❓ Frequently Asked Questions
Can it really power 16 cameras at once?
Yes — 16 typical IP cameras use well under the 300W budget, even with IR active at night.
How far can cameras be from the switch?
Up to 250m on ordinary Cat6 — extend mode engages automatically on long runs.
What is the SFP slot for?
A fiber uplink — connect this switch to a control room in another building over optical fiber, immune to distance and lightning.
Which NVR pairs with it?
Any 16-channel NVR — ask us about the CP Plus 16ch NVRs on our site; we’ll match recording capacity to your camera plan.
🤝 Why BuyCCTVs.com?
- BuyCCTVs.com Invoice — genuine billing, warranty protected
- Managed Customer Support — one point of contact
- Dealer-Network Sourcing — fresh genuine stock
- Direct-to-Customer Dispatch — typically within 24 hours
- Compatibility Guidance — full 16-camera power plan checked
- Remote Usage Guidance — network layout help included
🛠️ Warranty & After-Sales Support
2-Year CP Plus India Warranty, subject to BuyCCTVs.com invoice and serial validation; we coordinate the complete RMA process.
⚠️ Important: Use Cat6 pure copper cable for long PoE runs. Please confirm current price and stock on WhatsApp before purchase.
Additional information
| Warranty | 2 Year |
|---|---|
| Device Type | PoE Switch |
| Ports | 16+2 Gigabit + 1 SFP |
| Power Budget | 300W |
