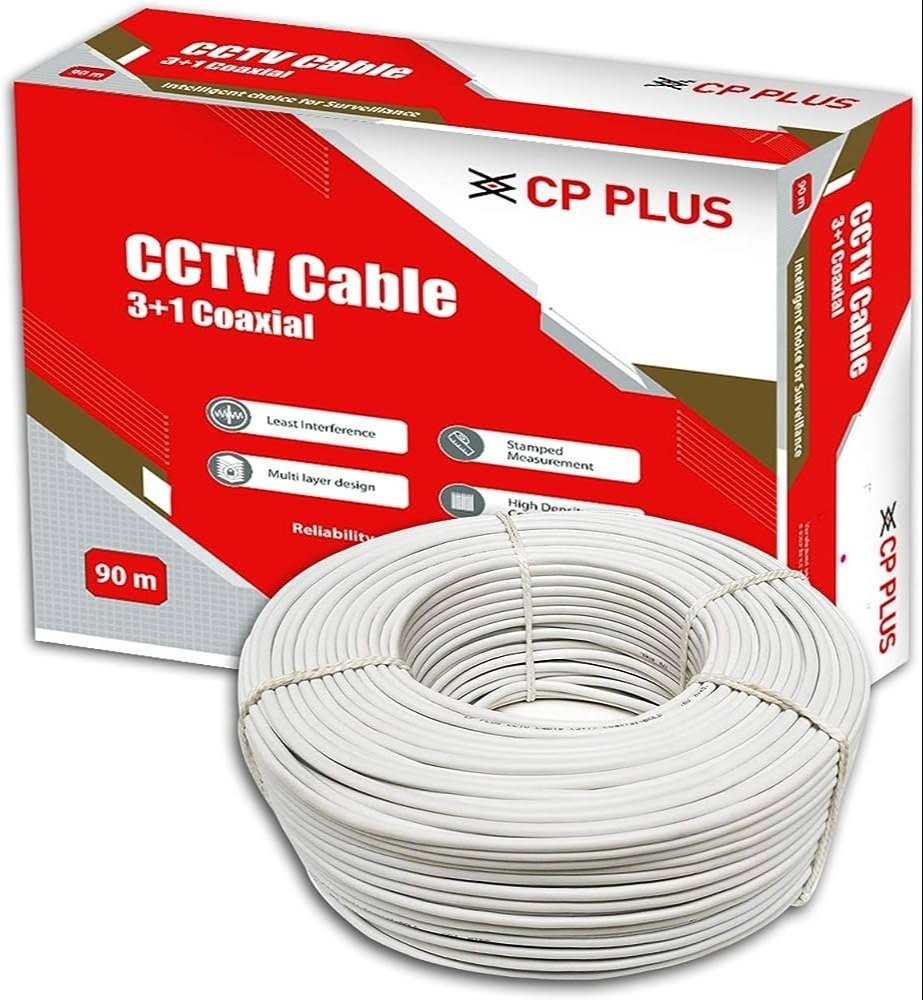

Between the Eco and Standard cable sits a few rupees per metre — and a visible difference on screen. The CP Plus CP-ECC-70RS upgrades all three things that matter: a 48-strand AL alloy braid (vs 36 on the Eco) that blocks more interference, a thicker 0.52mm solid copper video core that holds signal strength over distance, and a tough LLDPE outer jacket that outlasts plain PVC against sun, moisture and abrasion.
Same convenient 3+1 construction — video, 12V power and audio in one ~5.6mm run — same 70-metre length, stranded copper power cores. If the cable passes near mains wiring, motors or runs along an outer wall, the RS is the grade to pull.
🛡️ Denser Braid = Cleaner Video
Interference from mains lines and motors shows up as rolling bands on analog video — 48 strands of shielding stop it before it reaches the screen.
🧥 LLDPE Lives Longer
The polyethylene jacket resists heat, UV and abrasion better than PVC — the cable stays flexible and intact for years on exposed routes.
📊 Full Technical Specifications — CP-ECC-70RS
Model
CP-ECC-70RS (Standard Series)
Construction
3+1 — video, power & audio communication
Length
70 metres
Video Core
Solid annealed bare copper, 0.52±0.02mm, 1.5mm insulation
Braiding
AL alloy, 48 strands
Power Cores
Stranded copper, 14 strands, PVC insulated
Outer Jacket
LLDPE, 1.3±0.05mm sheath; ~5.6mm overall
Application
HD analog CCTV — video, power & audio
❓ Frequently Asked Questions
RS vs R — is the upgrade worth it? If the cable runs outdoors, near mains wiring, or beyond ~40m per camera — yes, every time. For short clean indoor runs the Eco R is fine.
Can I run it outdoors? The LLDPE jacket endures exposed routes well; for permanently sun-facing runs use conduit for maximum life.
Does it support 5MP HD cameras? Yes — the thicker copper core carries 5MP-class HD analog signals cleanly.
Need a longer roll? The CP-ECC-90RS gives the same Standard grade in 90 metres.
Save -23% on CP Plus 3+1 CCTV Cable 70M | 48-Strand Braid | LLDPE Jacket | Standard Series | CP-ECC-70RS! Only ~₹1,702.00~ ₹1,309.00 — ask us before it's gone.
