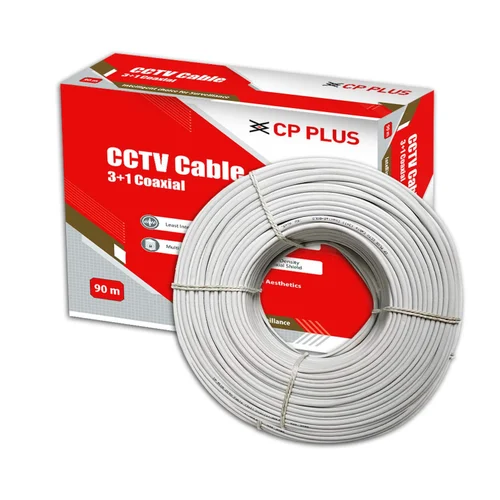

Some installs can tolerate a soft picture; others — the billing counter, the entry gate, the number-plate angle — cannot. The CP Plus CP-ECC-90RM Premium is the cable for the second kind: a solid annealed bare copper conductor (0.5mm) with PVC ST-1 insulation, engineered and distance-rated by CP Plus for long runs with 2MP HD cameras and shorter runs with 5MP HD cameras.
The familiar 3+1 construction carries video, 12V power and audio in one 90-metre unbroken run, with a shielded video core keeping interference off the picture. If you’re pairing 5MP HD cameras with longer distances, keep runs tight or step up resolution margins — we’ll help you plan it on WhatsApp.
📏 Honest Distance Ratings
CP Plus rates this cable by resolution and distance — 2MP long-run, 5MP short-run — so you can design the system instead of guessing.
⭐ Premium Where It Pays
Cable is ~5% of system cost and 50% of picture quality on long runs — the Premium grade is the cheapest upgrade with a visible result.
📊 Full Technical Specifications — CP-ECC-90RM
Model
CP-ECC-90RM (Premium Series)
Construction
3+1 — video, power & audio communication
Length
90 metres
Video Core
Solid annealed bare copper, 0.5±0.01mm
Insulation
PVC ST-1, 1.5mm insulation diameter
Distance Rating
Long-distance: 2MP HD; short-distance: 5MP HD
Application
HD analog CCTV — video, power & audio
❓ Frequently Asked Questions
RM Premium vs RS Standard? The RM is CP Plus’s step-up grade with distance-rated performance for HD resolutions; the RS is the value workhorse. For critical camera angles, choose RM.
Can I run 5MP cameras on it? Yes on short-to-medium runs per CP Plus’s rating; for very long 5MP runs, keep distances conservative — message us your layout and we’ll advise.
Power on long runs? Pair with a cable-compensation supply (V2/V3/MD series) so far cameras get full 12V at night.
Is it outdoor rated? For exposed weather routes choose the RSO outdoor jacket versions; the RM shines on protected premium runs.
Save -23% on CP Plus 3+1 CCTV Cable 90M | Premium Series | Solid Copper | Long-Distance HD | CP-ECC-90RM! Only ~₹2,701.00~ ₹2,077.00 — ask us before it's gone.
