Product details
CP PLUS SECURITY & CONNECTIVITY

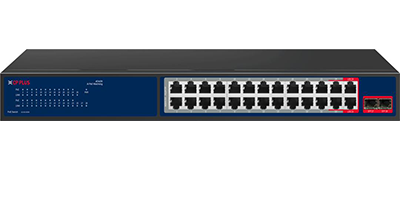

CP-ANW-HPU24G2F2-N30 — 24 Ports Unmanaged PoE Switch with 2 Gigabit Uplink & 2 SPF Ports
Official-model specifications organised for clear product selection and project planning.
Product overview
The CP-ANW-HPU24G2F2-N30 is a CP PLUS 24 Ports Unmanaged PoE Switch with 2 Gigabit Uplink & 2 SPF Ports. This page combines the current official model data with practical buying guidance, making it easier to compare the required performance, interfaces and installation needs.
Feature 1
24 × RJ-45 10/100 Mbps (PoE) Ports, 2 × RJ-45 Gigabit (Uplink) Ports, 2 × SFP Uplink Ports.
Feature 2
Extended transmission mode up to 250m at 10 Mbps .
Feature 3
Networking standard: IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet.
Feature 4
PoE Power Budget: 300W (Max 30W/60W per port).
Feature 5
Switching Capacity: 12.8 Gbps.
Feature 6
Easy and safe installation: plug-and-play, desktop design.
Technical specifications
| Model | CP-ANW-HPU24G2F2-N30 |
|---|---|
| Network Port | 28 Ports |
| PoE Ports | 1-22 Ports: 10/100Mbps PoE ports (RJ45); / 23-24 Ports: 10/100Mbps PoE ports, Support bt 60W High Power |
| Uplink Ports | 2, 10/100/1000Mbps, RJ45 uplink Ports; 2, 10/100/1000Mbps SFP uplink Ports |
| Network Standard | IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow / Control, IEEE 802.3af/at/bt Power over Ethernet |
| Bandwidth | 12.8Gbps |
| Network Latency | ≤16μs (use the 64byte package size) |
| MAC Address Table | 8K |
| VLAN | Support |
| AI Watchdog | Support |
| Transmission Rate | 2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half Duplex / The Frame Filter & Transmission Rate: 14800pps the most / for 10M port, 148800pps the most for 100M port;1488000pps the most for 1000M port |
| Transmission Distance | 100Mbps /10Mbps, Auto-Adaption 250m |
| Power Source | Built-in Power Supply / Input: AC 90~240V Total≤300W / Output: PoE 1~22 Port:1/2(+52V), 3/6(GND)≤30W, / PoE 23~24 Port:1245(+52V), 3678(GND) Compatible1/2(+52V), 3/6(GND)≤60W |
| Protection | ESD Protection:8KV / Lightning Protection:6KV |
| Operating Temperature | -30°C ~60°C |
| Operating Humidity | 10%~90% Non-condensing |
| Storage Temperature | -40°C~70°C |
| Storage Humidity | 5%~90% Non-condensing |
| Dimension | 440mm x 180mm x 45mm |
| Weight | 2650g |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, / FCC and RoHS, TEC/ MTCTE |
Buying and installation guidance
Plan the total PoE budget, per-port requirement, uplink capacity and cable distance before ordering. Use standards-compliant Cat5e/Cat6 cabling, allow ventilation and confirm whether managed functions or SFP modules are required.
Frequently asked questions
Is this the exact CP-ANW-HPU24G2F2-N30 model?
Yes. The SKU, specifications and images on this page were matched against the current CP PLUS official model page.
What should be checked before purchase?
Confirm the required features, power arrangement, installation environment and compatibility with the rest of the system. Model suffixes can represent important hardware differences.
Are accessories included?
Only items explicitly stated by the manufacturer or order description are included. Storage, cables, power supplies, mounts, SFP modules and other accessories may be sold separately.
Technical reference: CP PLUS official CP-ANW-HPU24G2F2-N30 page. Verify critical project specifications before purchase.
Additional information
| Brand | CP PLUS |
|---|---|
| Model Number | CP-ANW-HPU24G2F2-N30 |
