CP Plus 4 Ports Unmanaged PoE Switch with 2 Uplink Ports | 2 Year Warranty | CP-UNW-HPU4H2-48
Roll over image to zoom in
₹1,444.00₹1,878.00 inc.GST (-23%)
Minimum cart order ₹500 — you can mix any products.
4 Ports Unmanaged PoE Switch with 2 Uplink Ports — Key Details
- 4 Ports Unmanaged PoE Switch with 2 Uplink Ports
- 4 × RJ-45 10/100 Mbps (PoE) Ports, 2 × RJ-45 10/100 Mbps (Uplink) Ports.
- Extended transmission mode up to 250m at 10 Mbps.
- PoE/network deployment ready
- 2 years warranty
Model: CP-UNW-HPU4H2-48
Please confirm the current price and stock on WhatsApp before completing your purchase.
Confirm Price / Stock on WhatsApp
Who is BuyCCTVs.com?
We connect your order with the seller or fulfilment partner, coordinate delivery and help arrange installation, service and warranty support.
See how your order works →
Compare with similar PoE / Network Switch products
MORE WAYS TO SAVE
More live CCTV offers
Compare these limited-price cameras before completing your order.
Active Q Plus
₹6,842.00₹6,500.00inc. GST
Active Q Plus SW2 5MP+5MP WiFi Dual Camera Solar…
1 offer unit availableView offer →
Active Q Plus
₹13,684.00₹13,000.00inc. GST
Active Q Plus BP19 5-Lens WiFi Hybrid Solar Camera…
1 offer unit availableView offer →
Active Q Plus
₹12,632.00₹12,000.00inc. GST
Active Q Plus Z30 5-Lens Quad-View Solar PTZ Camera…
1 offer unit availableView offer →
Product details
CP PLUS PROFESSIONAL SECURITY

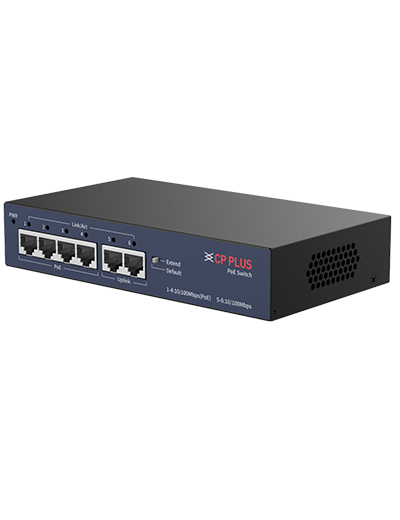

CP-UNW-HPU4H2-48 — 4 Ports Unmanaged PoE Switch with 2 Uplink Ports
Exact-model details, official specifications and practical selection guidance.
Product overview
The CP-UNW-HPU4H2-48 is a CP PLUS 4 Ports Unmanaged PoE Switch with 2 Uplink Ports. It is intended for professional CCTV installations where the exact model suffix, interfaces and environmental limits matter.
Feature 1
4 × RJ-45 10/100 Mbps (PoE) Ports, 2 × RJ-45 10/100 Mbps (Uplink) Ports.
Feature 2
Extended transmission mode up to 250m at 10 Mbps.
Feature 3
Networking Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x.
Feature 4
PoE Power Budget: 48W (Max 30W per port).
Feature 5
Easy and safe installation: plug-and-play, desktop design.
Technical specifications
| Model | CP-UNW-HPU4H2-48 |
|---|---|
| Network Port | 6 Ports |
| PoE Ports | 4 × RJ-45 10/100 Mbps (PoE) Ports |
| Uplink Ports | 2 × RJ-45 10/100 Mbps (Uplink) Ports |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.893 Mbps |
| MAC Address List | 2K |
| Packet Buffer | 768 Kbit |
| Jumbo Frame | 2048 Byte |
| DIP switch | Long Distance PoE: The transmission distance of ports 1–4 can reach up to 250 meters. The / negotiation speed can be reduced to 10 Mbps |
| ESD Protection | Air discharge: 8KV, Contact discharge: 6KV |
| Lightning Protection | Common mode: 6KV, Differential mode: 1KV |
| PoE Pin Assignment | 1/2+, 3/6- |
| Long Distance PoE Transmission | Support |
| PoE Power Budget | 48W (Max 30W per port) |
| Power Source | Built-in power supply:200-240 VAC, 50/60 Hz, Max. 1 A |
| Power Consumption | Idling: 0.3 W, Full load: 48 W |
| Operating Temperature | –10°C to +45°C |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | -10°C to +45°C |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Casing | Sheet Metal |
| Dimensions | 180mm × 112mm × 44mm |
| Weight | 420 g |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, / FCC and RoHS, TEC/ MTCTE |
Buying and installation guidance
Before ordering, total the PoE wattage required by every connected camera, check the per-port limit, uplink speed and transmission distance, and allow ventilation around the switch. SFP modules and storage are not included unless specifically stated.
Frequently asked questions
Is this the exact CP-UNW-HPU4H2-48 version?
Yes. The dealer SKU was matched to the current CP PLUS official model family; the numeric suffix identifies the listed lens version where applicable.
What is included?
Only the product and standard manufacturer-supplied items are included. Recorder storage, cable, power accessories, mounts, SFP modules and installation are separate unless the order explicitly includes them.
What warranty is shown?
This listing carries a 2-year product warranty. Warranty service is subject to the manufacturer or authorised service process and the applicable invoice and serial-number conditions.
Technical reference: CP PLUS official CP-UNW-HPU4H2-48 page. The dealer price list identifies the exact sale SKU and lens suffix.
Additional information
| Brand | CP PLUS |
|---|---|
| Model Number | CP-UNW-HPU4H2-48 |
| Warranty | 2 Years |
