Product details
CP PLUS SECURITY & CONNECTIVITY

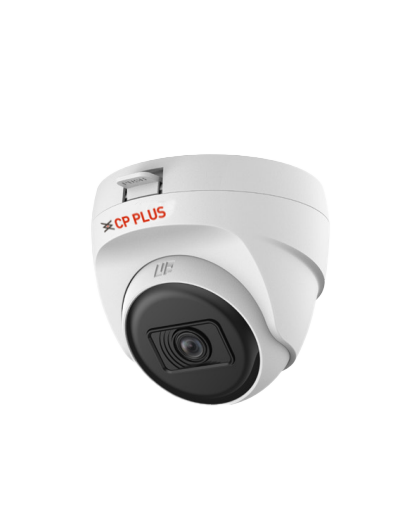

CP-URC-DC24PL3 — 2.4MP IR Dome Camera – 30Mtr.
Official-model specifications organised for clear product selection and project planning.
Product overview
The CP-URC-DC24PL3 is a CP PLUS 2.4MP IR Dome Camera – 30Mtr.. This page combines the current official model data with practical buying guidance, making it easier to compare the required performance, interfaces and installation needs.
Feature 1
2.4MP PS CMOS Image Sensor
Feature 2
DWDR, Day/Night (ICR), 2D DNR, BLC, HLC
Feature 3
3.6mm fixed lens (2.8 mm Optional)
Feature 4
IR Range of 30 Mtr., Smart IR
Feature 5
4 Signals over 1 Coaxial Cable
Feature 6
CVI/ CVBS/ AHD/ TVI switchable
Technical specifications
| Model | CP-URC-DC24PL3 |
|---|---|
| Image Sensor | 2.4MP PS CMOS Image Sensor |
| Minimum Illumination | 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Shutter Speed | PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360 |
| White Balance | Auto |
| Lens Mount | M12 |
| Close Focus Distance | 3.6 mm: 0.8 m, 2.8 mm: 0.5 m |
| DORI Distance | Lens 3.6 mm: Detect-55.0 m, Observe-22.0 m, Recognize – 11.0 m, Identify-5.5 m; Lens 2.8 mm: Detect-44.7 m, Observe-17.9 m, Recognize-8.9 m, Identify-4.5 m |
| Lens Type | Fixed-focal |
| Gain Control (AGC) | Auto |
| Lens | 3.6mm (2.8mm optional) |
| Angle of View | 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, |
| Back Light Compensation | BLC/ DWD |
| Resolution | 1080p (1920 × 1080), 960H (960 × 576/ 960 × 480) |
| Frame Rate | CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
| Noise Reduction | 2D DNR |
| Day/Night | Auto(ICR)/Color/B/W |
| IR Control | Auto, Manual |
| IR | IR Range of 30 Mtr., |
| IR Mode | Smart IR |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Source | 12 VDC ± 30% |
| Power Consumption | Max 2.3 W (12 VDC |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Dimension | 85.0 mm × 77.1 mm |
| Iris Control | Fixed |
| Weight | 0.11kg. |
Buying and installation guidance
Match the model capabilities to the project before ordering. Confirm power input, compatible accessories, cable or network requirements and environmental limits. Follow the manufacturer installation guide and protect all outdoor joints and connectors.
Frequently asked questions
Is this the exact CP-URC-DC24PL3 model?
Yes. The SKU, specifications and images on this page were matched against the current CP PLUS official model page.
What should be checked before purchase?
Confirm the required features, power arrangement, installation environment and compatibility with the rest of the system. Model suffixes can represent important hardware differences.
Are accessories included?
Only items explicitly stated by the manufacturer or order description are included. Storage, cables, power supplies, mounts, SFP modules and other accessories may be sold separately.
Technical reference: CP PLUS official CP-URC-DC24PL3 page. Verify critical project specifications before purchase.
