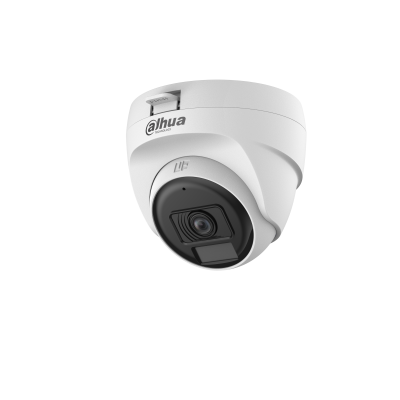

Name: Dahua DH-HAC-T1A21P-U-IL-A 2MP Smart Dual Light Eyeball Camera
SKU: DH-HAC-T1A21P-U-IL-A
Price: 1554.00 INR
Availability: InStock

Product details

DAHUA COOPER SERIES HDCVI

DH-HAC-T1A21P-U-IL-A 2MP Smart Dual Light Eyeball Camera

2MP | IR 25 m | warm light 20 m | mic

Clear coaxial surveillance without network-camera complexity

The Dahua DH-HAC-T1A21P-U-IL-A is a 2MP Smart Dual Light HDCVI eyeball camera with a built-in microphone. It can use discreet infrared monitoring and add warm light when colour event detail is needed.

With a compatible AI XVR, Smart Dual Light can turn on white light when a human or vehicle triggers the configured rule, then return to IR after the target leaves. The camera also supports CVI, TVI, AHD and CVBS output for flexible coaxial deployment.

Key benefits for day-to-day CCTV use

2MP imaging: Full HD detail for general monitoring, entrances and everyday evidence review.

IR 25 m + warm light 20 m: Smart Dual Light can move from discreet IR to warm light for colour event detail with a compatible AI XVR.

Built-in microphone: Adds audio evidence through a compatible recorder.

Technical specifications – DH-HAC-T1A21P-U-IL-A

Model / video standard	DH-HAC-T1A21P-U-IL-A, PAL HDCVI camera
Image sensor / maximum resolution	2 MP CMOS; 1920 × 1080
Frame rate	Up to 1080p at 25 fps (PAL)
Illumination	Smart Dual Light: IR up to 25 m and warm light up to 20 m
Lens	Fixed-focal M12; 2.8 mm or 3.6 mm
Video output	One BNC, switchable CVI / TVI / AHD / CVBS
Audio	One built-in microphone
Image controls	Day/night, BLC/HLC where supported, DWDR, white balance and 2D noise reduction
Power	12 VDC with ±30% input-voltage tolerance
Housing / protection	Plastic quick-install eyeball housing; no IP67 rating stated for this eyeball model
Operating environment	-40°C to +60°C; below 95% RH, non-condensing
Warranty	2 Years Dahua India, subject to invoice and serial-number validation

Installation and recorder compatibility

Use it in protected entrances, reception zones, retail interiors and covered corridors where colour-on-event and audio add useful evidence. Avoid mounting near glass or reflective surfaces that can bounce IR back into the lens.

Use a compatible HDCVI/XVR channel, regulated 12 VDC power and correctly terminated coaxial cable or a suitable video balun. Select the camera output format only when required by the recorder. The camera is not an IP camera and does not connect directly to a router.

Choosing the correct lens, recorder and cable

For 1080p recording, use a DVR/XVR channel that supports 2MP HDCVI. CVI is the preferred native mode; TVI, AHD and CVBS are available for compatible legacy equipment.

Before dispatch, confirm the ordered lens, PAL recording mode, DVR resolution support, audio compatibility and required cable distance. Published illumination distances are measured under controlled conditions; real performance changes with mounting height, scene reflectivity, lens choice and ambient light.

Frequently asked questions

Does DH-HAC-T1A21P-U-IL-A work with every DVR?

Use a DVR/XVR channel that supports the selected 2MP HDCVI output and frame rate. Older recorders may require a lower output mode or may not support this camera.

Does this model record audio?

Yes. This model includes a microphone; verify that the recorder channel accepts camera audio.

Can it produce colour video at night?

Yes, in warm-light mode. Smart mode requires a compatible Dahua AI XVR and supported event configuration to switch intelligently between IR and warm light.

Are the power supply and DVR included?

No. This listing is for the camera unless the selected offer explicitly states otherwise. Power supply, DVR/XVR, storage, cable and connectors are chosen separately.

Why buy from BuyCCTVs.com?

Exact-SKU checking before dispatch
DVR, lens, audio and cabling compatibility guidance
Genuine invoice and India-wide support

Professional installation note

Automatic light switching depends on compatible XVR analytics and correct configuration. The camera cannot identify targets by itself in standard analog mode.

Additional information

Camera Type	Eyeball
Resolution	2MP
Signal	4-in-1
Audio	Built-in Mic
Night Vision	Smart Dual Light IR + White 20m
Warranty	2 Year
