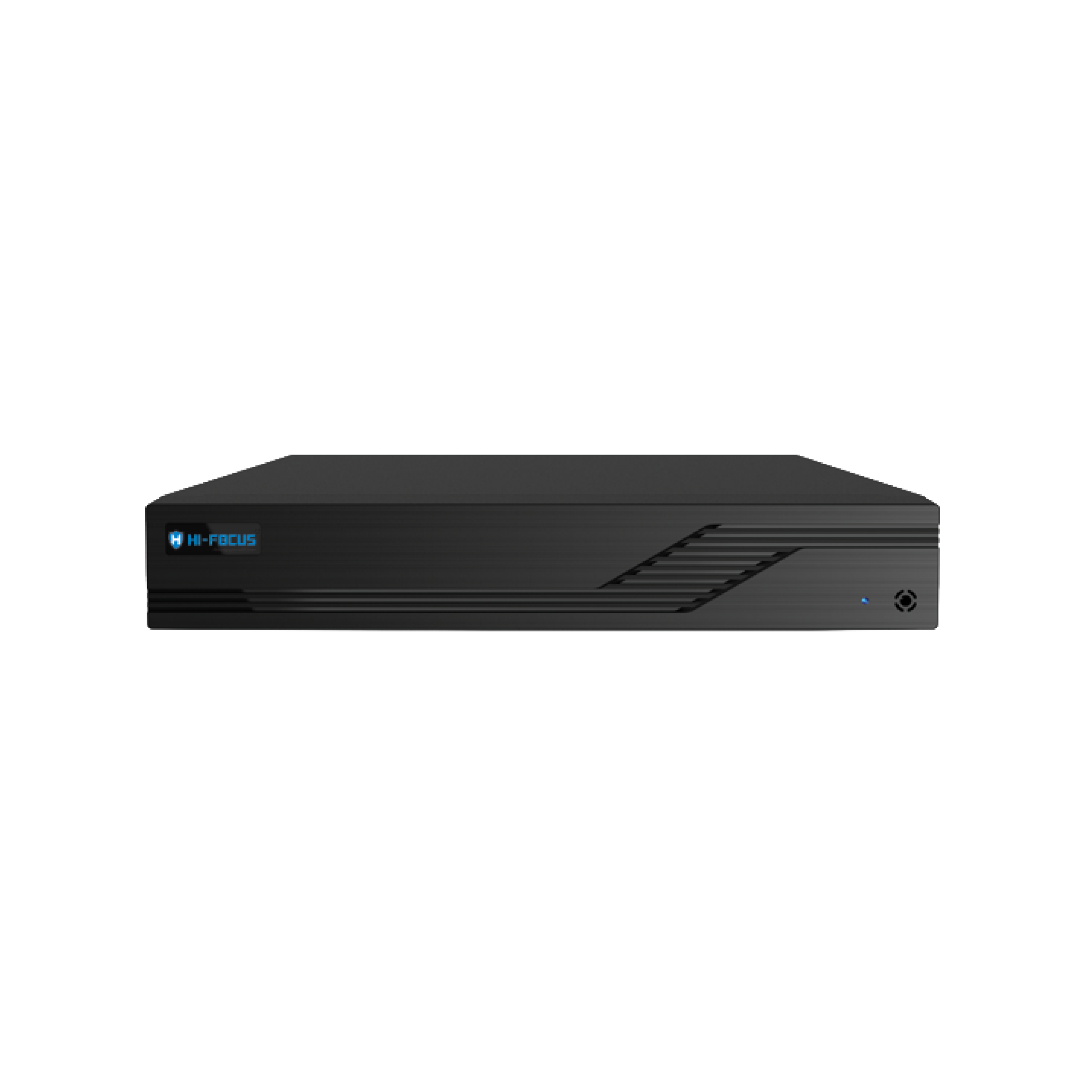

Name: Hi Focus HD-XVR-4116TLC Price | 16 Channel 1 Sata Network Video Recorder | 2 Year Warranty
Brand: Hi Focus
SKU: HD-XVR-4116TLC
Price: 10178.00 INR
Availability: InStock

Product details

HI FOCUS · VELOCITY SERIES

HD-XVR-4116TLC — 16 Channel 1 Sata Network Video Recorder

🛡️ 2 Years Warranty

Exact official model data organised for clear comparison, project planning and installation.

Product overview

The HD-XVR-4116TLC is a Hi Focus 16 channel 1 sata network video recorder for centralised video recording in homes, offices, retail, schools, warehouses, apartments and commercial projects. Official Hi Focus hi focus security product designed for professional video-surveillance installations.

This listing is model-specific: the SKU, official image and technical source have been checked against the current HiFocus catalogue. Similar-looking suffix variants may use different sensors, channel limits, storage interfaces or analytics, so always order by the complete model number.

16CH TVI/ AHD/CVI 1080P/1080P Lite/720P/WD1

16CH TVI/ AHD/CVI 1080P/1080P Lite/720P/WD1 video input

16CH DVR supports 8CH 5MP/4MP/3MP/1080P

16CH DVR supports 8CH 5MP/4MP/3MP/1080P /960P /720P IP video input by default

16CH DVR

16CH DVR: 16 CH analog video input can be switched to 16CH IP video input

Adopt standard H.265 high profile

Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate

Intuitive and user-friendly Graphics User

Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse

Multi-mode recording

Multi-mode recording: manual/timed / motion / Al recording

Playback

Playback: 16 CH simultaenously playback Search: time slice, time, event, tag search

Express and flexible backup via

Express and flexible backup via USB, network and so on

Official technical highlights

Specification sections: System · Video And Audio · Recording · Playback · Display · Network · Backup · Storage · Auxiliary Interface · Electrica · Environmental

Main Processor	Embedded Processor
Operating System	Embedded LINUX
Incoming Bandwidth	16Mbps
Outgoing Bandwidth	60Mbps
Analog Camera Input	16 Channel, BNC
IP Camera Input	16 CH (HD) + 2CH (IPC)
Audio In	RCA x1
Audio Out	Two-way Talk
Take up channel one audio input	Video Compression
H.264/H.265	Resolution
1080P Lite/720P/720P Lite/ WD1	Record Rate
Analog Channel: 8CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) IP Channel: 25fps(PAL) /30fps (NTSC)	Video Bit Rate
32Kbps~ 4Mbps	Playback
16 CH	Search
Time slice / time / event / tag search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events	Function
Play, pause, FF, FB, digital zoom, etc.	Interface
1 HDMI,1 VGA	1920×1080, 1280×1024, 1024×768
Multi-screen Display	1/4/6/9
RJ 45 100Mbps × 1	Protocol
TCP/IP, PPPOE, DHCP, DNS, DDNS, UPnP, HTTР, HTTPs, NTP, SMTP	Max. User Access
5 users	Local Backup
U disk, USB mobile HDD	Network Backup
Yes	HDD
1 SATA Port, up to 8TB capacity	USB
2 USB 2.0	Power Supply
DC12V/1.5A	Power Consumption
<5W (Without HDD)	Operating Conditions
-10~50°C, 10%~90% (humidity)	Dimensions
255 × 222 x 42 (W x D×H)	Refer to the official datasheet for this model.

Feature availability and performance limits are specific to this exact model. Manufacturer specifications can be revised without notice.

Buying and installation guidance

Confirm camera count, input technology, supported resolution, incoming bandwidth, display output, SATA-bay count and target retention period. A surveillance HDD is not included unless the order explicitly says so. Use a suitable UPS, allow ventilation and change all default passwords during commissioning.

Compatibility checklist

Match the complete SKU and suffix, not only the channel count or megapixel label.
Confirm camera, recorder, codec, resolution, bandwidth and power compatibility.
Plan storage from camera count, bitrate, frame rate, recording schedule and retention days.
Use surveillance-grade storage and installation materials suited to the environment.
Keep the purchase invoice and device serial number for warranty or service support.

Frequently asked questions

Is this the exact Hi Focus HD-XVR-4116TLC model?

Yes. The model number and product media were matched with HiFocus official catalogue sources before publication.

Does the displayed selling price include GST?

For priced items, the website selling price is GST-inclusive. The dealer price list supplied the SPP before GST, and the selling price was calculated using the approved GST and margin rule.

Are HDD, cable, power supply or installation included?

Only items explicitly shown in the order description are included. Storage drives, cabling, power accessories, mounting materials and installation are normally separate.

Can this model be mixed with another brand?

Cross-brand compatibility depends on the video standard, ONVIF profile, codec, resolution and supported functions. Confirm critical integrations before ordering.

What warranty applies?

This HiFocus product includes a 2 Years Warranty. Keep the original purchase invoice and device serial number for warranty service.

Technical references: official product page · official datasheet. Verify critical tender or project specifications against the latest manufacturer document before installation.
