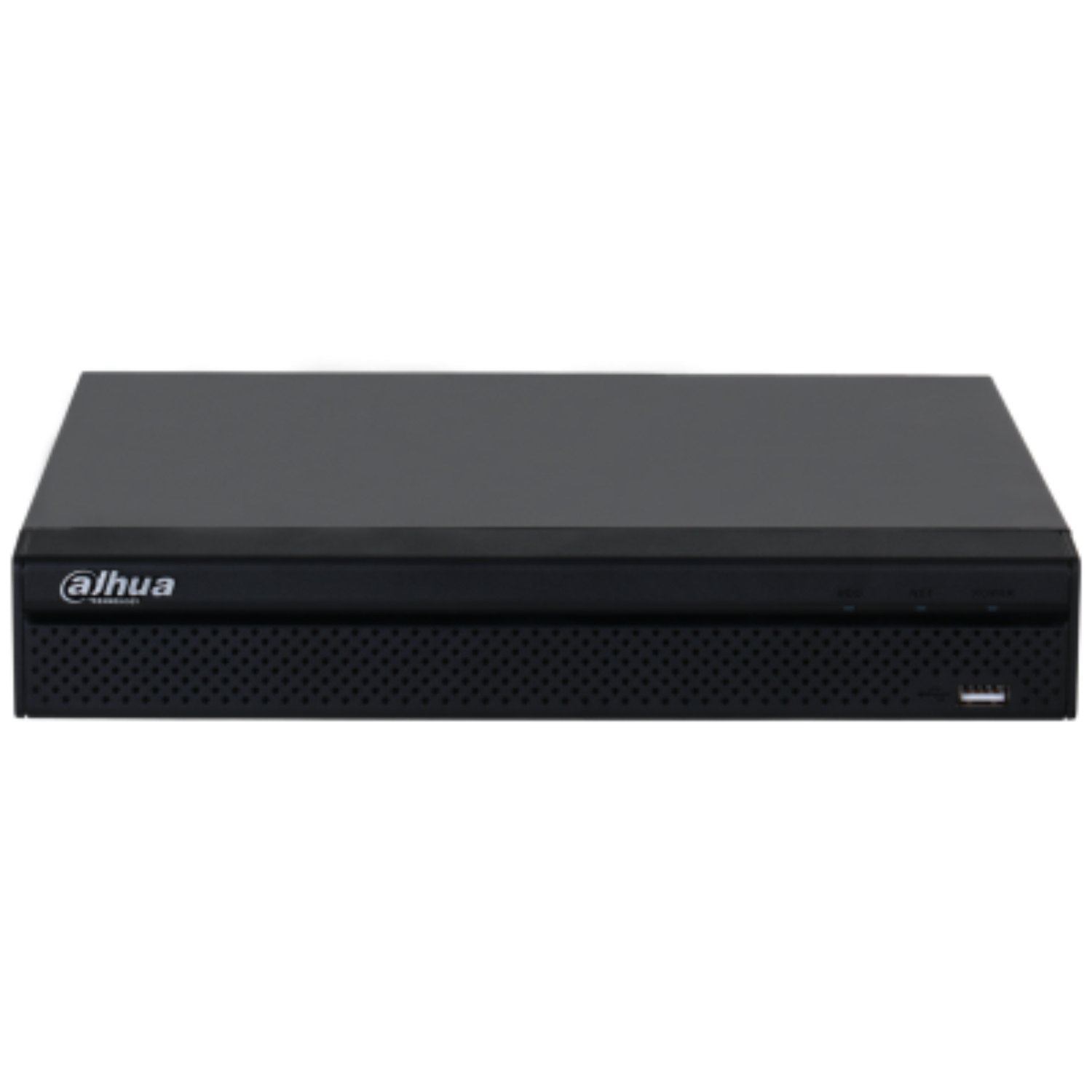

Dahua NVR1104HS-S3/H 4-Channel Lite Series Network Video Recorder

4 IP camera channels: Central recording for small surveillance projects.

Up to 8MP camera input: Supports compatible IP streams within the recorder’s bandwidth and decoding limits.

80/80/60 Mbps incoming/recording/outgoing network bandwidth: Plan total camera bitrates before commissioning.

1 SATA bay up to 8TB: Use surveillance-grade HDDs sized for the required retention period.

No recorder-side AI claim: A straightforward recorder focused on reliable local and remote video recording.

Smart H.265+ and remote access: Efficient recording with authorised mobile and browser viewing.

Product details

DAHUA LITE SERIES NETWORK RECORDING

NVR1104HS-S3/H 4-Channel NVR

8MP | 1 SATA bay up to 8TB | ONVIF/RTSP | Smart H.265+

Model-specific recording for a dependable IP CCTV system

The Dahua DHI-NVR1104HS-S3/H is a compact four-channel Lite Series network recorder for homes, retail counters and small offices. It accepts compatible IP cameras up to 8MP while providing 80 Mbps incoming and recording bandwidth.

One SATA bay supports an HDD up to 8TB under the official specification. Smart H.265+, simultaneous 1080p HDMI/VGA output, ONVIF/RTSP integration and P2P mobile access provide the core functions needed for an economical four-camera IP system.

Key benefits for installers and security teams

4-channel capacity: A focused capacity for compact sites without paying for unused recorder channels.

1 SATA bay up to 8TB: One HDD bay keeps the recorder compact and economical for short-to-medium retention.

No recorder-side AI claim: The product avoids overstating AI and concentrates on dependable recording, playback and remote access.

Technical specifications – NVR1104HS-S3/H

Model / type	DHI-NVR1104HS-S3/H; 4-channel Lite Series NVR
IP camera inputs	4 channels; no built-in PoE on this model
Supported camera resolution	Up to 8MP, subject to stream and decoding limits
Network bandwidth	80/80/60 Mbps incoming/recording/outgoing
Decoding capability	1 × 8MP or 1 × 5MP, 2 × 4MP/3MP, or 4 × 1080p at 30 fps
Recorder-side AI	No recorder-side AI is specified for this S3/H model
Camera-side analytics	Standard motion and supported camera events; advanced analytics are camera/protocol dependent
Video compression	Smart H.265+, H.265, Smart H.264+ and H.264; camera/stream dependent
Display outputs	1 HDMI and 1 VGA simultaneously, up to 1080p
Storage	1 SATA 2.0 port, up to 8TB per official datasheet
Network / interoperability	1 × 10/100 Mbps Ethernet, P2P mobile access; ONVIF/RTSP or supported Dahua protocols depending on camera
HDD / PoE included	No HDD and no PoE switch are included unless an offer explicitly states otherwise
Warranty	2 Years Dahua India, subject to invoice and serial validation

Where this NVR fits

Recommended for homes, boutiques, clinics, reception areas and micro offices needing up to four IP cameras and one-HDD local recording.

Recording days are not fixed. They depend on camera count, resolution, codec, frame rate, bitrate, recording schedule, scene activity and installed surveillance-HDD capacity.

Compatibility, bandwidth and AI planning

Before ordering, total the main-stream and sub-stream bitrates, required live-view layouts, simultaneous playback, display resolution, analytics and retention. Maximum camera resolution does not mean every channel can be decoded at that resolution simultaneously.

This S3/H recorder has HDMI output up to 1080p even though it accepts an 8MP camera stream. Plan local display and decoding separately from camera input resolution.

Frequently asked questions

Does NVR1104HS-S3/H include a hard disk?

No. Select compatible surveillance-grade HDD capacity based on the desired recording duration.

Does it have built-in PoE ports?

No. This exact non-P model requires a suitable external PoE switch or separately powered IP cameras.

Will every ONVIF camera feature work?

Basic video commonly works, but audio, events, configuration and AI metadata vary by camera model, profile and firmware.

Can all AI functions run together?

Not always. Recorder resources, camera-side analytics and firmware determine simultaneous AI capacity.

Why buy from BuyCCTVs.com?

Exact SKU and non-P/PoE version checking
Bandwidth, decoding, AI and storage guidance
Genuine invoice and India-wide support

Professional installation note

Use protected power, adequate rack ventilation, surveillance HDDs and a secured network. Change default credentials and use firmware approved for the exact hardware version.

Additional information

Device Type	IP NVR
Channels	4-Channel
Max Resolution	8MP
AI	No recorder-side AI
Compression	Smart H.265+
Storage	1 SATA up to 8TB
Output	HDMI + VGA (1080p)
PoE	No (needs external PoE switch)
Warranty	2 Year
