Name: Hi Focus HC-IPC-DI3212DVZK-N5-O Price | 2 MP VANDAL DOME MVF NETWORK CAMERA | 2 Year Warranty
Brand: Hi Focus
SKU: HC-IPC-DI3212DVZK-N5-O
Price: 22391.00 INR
Availability: InStock

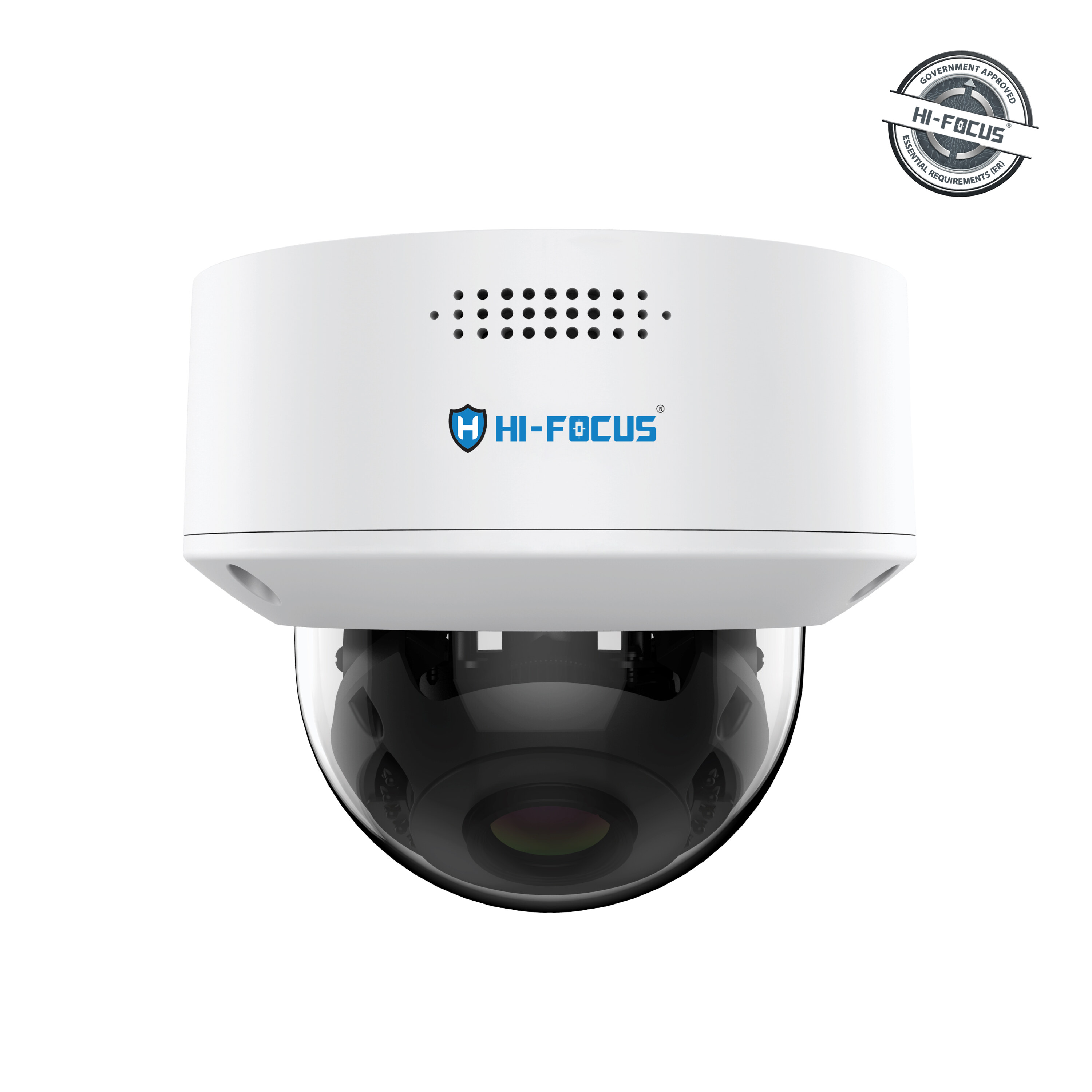

Hi Focus 2 MP VANDAL DOME MVF NETWORK CAMERA — HC-IPC-DI3212DVZK-N5-O

🛡️ 2 Years Warranty

2 MP Full HD Resolution: Delivers sharp 1920×1080 video at 30fps

Infrared Night Vision: Clear visibility up to 50 meters in total darkness

Lens: 2.7-13.5mm Motorized Varifocal Lens

Built-in Microphone: Capture real-time audio directly from the scene

Smart AI Detection: Supports human and vehicle classification

Face Capture Mode: For entry logging, identity verification,

or access control: or access control

Edge Storage: MicroSD/MicroSDHC/MicroSDXC supports, up to 512GB

Product details

HI FOCUS · PRIME SERIES

HC-IPC-DI3212DVZK-N5-O — 2 MP VANDAL DOME MVF NETWORK CAMERA

🛡️ 2 Years Warranty

Exact official model data organised for clear comparison, project planning and installation.

Product overview

The HC-IPC-DI3212DVZK-N5-O is a Hi Focus 2 mp vandal dome mvf network camera for homes, shops, offices, entrances, corridors, counters and professional IP-surveillance projects. Built with a rugged, vandal-resistant housing, it ensures durability and long-term performance. Ideal for commercial buildings, retail spaces, offices, and public areas, it offers a reliable and secure surveillance solution tailored for modern security needs

This listing is model-specific: the SKU, official image and technical source have been checked against the current HiFocus catalogue. Similar-looking suffix variants may use different sensors, channel limits, storage interfaces or analytics, so always order by the complete model number.

2 MP Full HD Resolution

2 MP Full HD Resolution – Delivers sharp 1920×1080 video at 30fps

Infrared Night Vision

Infrared Night Vision – Clear visibility up to 50 meters in total darkness

Lens

Lens – 2.7-13.5mm Motorized Varifocal Lens

Built-in Microphone

Built-in Microphone – Capture real-time audio directly from the scene

Smart AI Detection

Smart AI Detection – Supports human and vehicle classification

Face Capture Mode

Face Capture Mode – For entry logging, identity verification,

or access control

Edge Storage

Edge Storage – MicroSD/MicroSDHC/MicroSDXC supports, up to 512GB

Official technical highlights

2 MP Full HD Resolution – Delivers sharp 1920×1080 video at 30fps	Infrared Night Vision – Clear visibility up to 50 meters in total darkness
Lens – 2.7-13.5mm Motorized Varifocal Lens	Built-in Microphone – Capture real-time audio directly from the scene
Smart AI Detection – Supports human and vehicle classification	Face Capture Mode – For entry logging, identity verification,
or access control	Edge Storage – MicroSD/MicroSDHC/MicroSDXC supports, up to 512GB
IP66 Weatherproof – Fully protected against dust and heavy rain	IK10 Vandal Resistance – Ideal for public or high-risk areas
2 MP VANDAL DOME MVF NETWORK CAMERA	HC-IPC-DI3212DVZK-N5-O
Built with a rugged, vandal-resistant housing, it ensures	durability and long-term performance. Ideal for
commercial buildings, retail spaces, offices, and public	areas, it offers a reliable and secure surveillance solution
tailored for modern security needs	SYSTEM OVERVIEW
ABOUT HIFOCUS	WHAT IS HIT TECHNOLOGY ?
HIT (HI-FOCUS Integrated Trust) is a next-generation security	framework that strengthens surveillance systems with
advanced cyber security and intelligent design. By integrating	encrypted data transmission, secure device authentication,
and protected remote access, HIT ensures surveillance	systems remain secure, reliable, and trusted.
HI-FOCUS is a trusted leader in surveillance and networking solutions with more than a Decade of experience in	CCTV Industry. We deliver innovative, reliable, and high-performance security products designed to meet
global quality standards. Every HI-FOCUS product is engineered with precision and rigorously tested to ensure	superior performance and customer satisfaction.
Design and specifications are subject to change without notice. Visit	HiFocusCctv.com for the latest product information /specification.
SUPPORTS	SD CARD
UPTO 512GB	IP66
IK10	TWO WAY
AUDIO	BUILT IN
MIC2 MEGAPIXEL	1/2.8" STARVIS
SONY IMAGE	SENSOR 512 GB
2 MP VANDAL DOME MVF NETWORK CAMERA HC-IPC-DI3212DVZK-N5-O	Enabling the transmission of four independent
video streams simultaneously. Configured	with different resolutions, frame rates, & bitrates
to optimize bandwidth usage and performance	based on application requirements.
The intuitive OSD menu enables quick, precise	control of image and detection settings for
optimal performance in any environment.	Built-in two-way audio enables real-time
communication through the camera, allowing	users to listen and speak remotely for instant
response, guidance, or deterrence.	Equipped with Alarm Input and Alarm Output
ports for seamless integration with external security	& monitoring systems. Benefits of Automated threat
notification and Reduced manual monitoring.	Human & Vehicle Classification – Smart detection with fewer false alarms
Tripwire & Double Tripwire – Detect directional line crossing	Object Abandon & Object Lost – Identify unattended or missing objects
Heatmap Analysis – Track activity density patterns	Loitering & Running Detection – Spot unusual behavior instantly
Parking Detection – Monitor unauthorized parking activity	People Counting & Crowd Detection – Measure footfall and crowd levels
Safety Helmet Detection – Ensure workplace safety compliance	Face Capture – Capture faces for identification and records
OSD Configuration MenuQuad Stream	Alarm IntegrationTwo-Way Audio
Advanced AI Features	CAMERA
Image Sensor 1/2.8"CMOS Starvis Sony Image	Sensor
Supported	8 regions
5 regions; 16×16/32×32/48×48/64×64	96×96
4 regions	Auto/Semi-auto/Manual/Sunny/
Natural light/Warm light/Sodium	lamp/Incandescent lamp/Locked
white balance	WDR 120dB
Focal Length	Aperture Range
Field of View	Optical Zoom
2.7-13.5mm	F1.6, Fixed
Aperture Type Motorized	98.3°-32.2°
Detect: 38.5m~165.5m	Observe: 15m~65.5m
Recognize: 7.5m~33m	Identify: 3.5m~16.5m
Digital Zoom 16x	S/N >39dB
Shutter Speed 1s-1/100000s	Day&Night IR-cut filter with auto switch (ICR)
Smart IR upto 50m	Wave length 850nm
Minimum illumination Color: 0.002Lux@ (F1.6, AGC ON),	B/W: 0Lux with IR
AGC	3DNR
ROI	OSD
Defog	Privacy Mask
VIDEO	Video Compression Smart H.265/ H.265/H.264B/H.264M/
H.264H/Motion JPEG	BLC
HLC	Main Stream
PAL 25 Fps: 1920 x 1080 @ 25fps,	1280 x 720NTSC 30 Fps: 1920 x 1080
@ 30fps, 1280 x 720	Third Stream
PAL 25 Fps: 1280 x720, 4CIF(704x 576)	NTSC 30 Fps: 2CIF(704x 288),
CIF( 352x 288), 640x 360,	4CIF( 704x 576)
Sub Stream PAL 25 Fps: 1280x 720, 4CIF(704x 576)	NTSC 30 Fps: 1280x 720, 4CIF(704x 576)
Fourth Stream	PAL 25 Fps: 2CIF(704x 288), CIF
( 352x 288), 640x 360, 4CIF( 704x 576)	NTSC 25 Fps: 2CIF(704x 288), CIF
( 352x 288), 640x 360, 4CIF	( 704x 576) @ 30fps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC	Audio Sampling Rate 8kHz/32kHz/48kHz
1920 x 1080@ 30fpsMax. Resolution	Video Bit Rate 32k-16Mbps
INTELLIGENT ANALYSIS	SECURITY
Basic Event	Human/Vehicle Classification,
Tripwire, Double Tripwire, Perimeter	Object Abandon, Object Lost,
Heatmap, Loitering, Running,	Parking, People Counting, Crowd,
Safety Helmet Detection,	On Duty Detection, Video Abnormal,
Audio Abnormal	Detect 32 faces, Capture up to 16
faces at the same scene	Supports human & vehicle
classification, Face Capture for	Smart Alerts
AES 256-bit Encryption,	Configuration encryption,
trusted execution, Digest,	security logs,account lockout,
syslog, video encryption,	IP/MAC filtering, HTTPS,
trusted upgrade,trusted boot	Face Recognize
Smart Detection	Cyber Security
CORE FEATURES	INTERFACE
1 RJ45 10M/ 100M self adaptive Ethernet portNetwork Interface	1channel in, 1channel outAudio
SupportedBuilt-in Mic	Built-in Micro SD card slot, up to 512 GB
RS-485	2channel in, 3mA, 3.3VDC, 1channel out, 1A, 24VDCAlarm
Reset Button	On-Board Storage
Additional Interfaces	GENERAL
NETWORK	ANR Yes
System Compatibility	Remote Connection
Client	ONVIF Profile S/T/G/M, SDK, CGI, Milestone, RTMP
HF Prime VMS	Operating Temperature
Operating Humidity	Storage Temperature
40℃~65℃(-40℉~149℉)	≤95%RH
Storage Humidity 10%~95%RH(non-condensing)	Power Supply DC12V±25%, MAX 8W; POE 802.3at, MAX 9W
Ingress Protection Surge protection 4000V, ESD6000V, IP66, IK10	Vandal Resistance IP66 rated metal housing; IK10 vandal resistance
Boundary Dimensions 143(L)143(W)124(H)mm	Certification MTBF Certificate from STQC, EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved
compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252	Package Dimensions 250(L)180(W)175(H)mm
Gross Weight 1.16kg	Protocols HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, DHCP, DNS, DDNS, Easy DDNS, NTP, SMTP, SSL,
802.1X, QoS, IPv4, IPv6, PPPOE, Unicast, Multicast, RTCP, ARP, RTP, SRTP, RTSP, FTP, SFTP, NAS	Dimensions
123mm	128mm
4.5mm	143mm

Feature availability and performance limits are specific to this exact model. Manufacturer specifications can be revised without notice.

Buying and installation guidance

Confirm the required field of view, mounting height, night-light behaviour, audio requirement, cable route and recorder compatibility. Use quality cable and connectors, protect exposed joints from water, and test identification detail at the actual mounting distance before final handover.

Compatibility checklist

Match the complete SKU and suffix, not only the channel count or megapixel label.
Confirm camera, recorder, codec, resolution, bandwidth and power compatibility.
Plan storage from camera count, bitrate, frame rate, recording schedule and retention days.
Use surveillance-grade storage and installation materials suited to the environment.
Keep the purchase invoice and device serial number for warranty or service support.

Frequently asked questions

Is this the exact Hi Focus HC-IPC-DI3212DVZK-N5-O model?

Yes. The model number and product media were matched with HiFocus official catalogue sources before publication.

Does the displayed selling price include GST?

For priced items, the website selling price is GST-inclusive. The dealer price list supplied the SPP before GST, and the selling price was calculated using the approved GST and margin rule.

Are HDD, cable, power supply or installation included?

Only items explicitly shown in the order description are included. Storage drives, cabling, power accessories, mounting materials and installation are normally separate.

Can this model be mixed with another brand?

Cross-brand compatibility depends on the video standard, ONVIF profile, codec, resolution and supported functions. Confirm critical integrations before ordering.

What warranty applies?

This HiFocus product includes a 2 Years Warranty. Keep the original purchase invoice and device serial number for warranty service.

Technical references: official product page · official datasheet. Verify critical tender or project specifications against the latest manufacturer document before installation.

Additional information

Brand	Hi Focus
Model Number	HC-IPC-DI3212DVZK-N5-O
Product Type	IP Camera
Series	Prime
Resolution	2MP
Warranty	Manufacturer warranty as applicable
