Name: Hi Focus HC-IPC-DI3215DVZK-N5-O Price | 5MP VANDAL DOME MVF NETWORK CAMERA | 2 Year Warranty
Brand: Hi Focus
SKU: HC-IPC-DI3215DVZK-N5-O
Price: 27819.00 INR
Availability: InStock

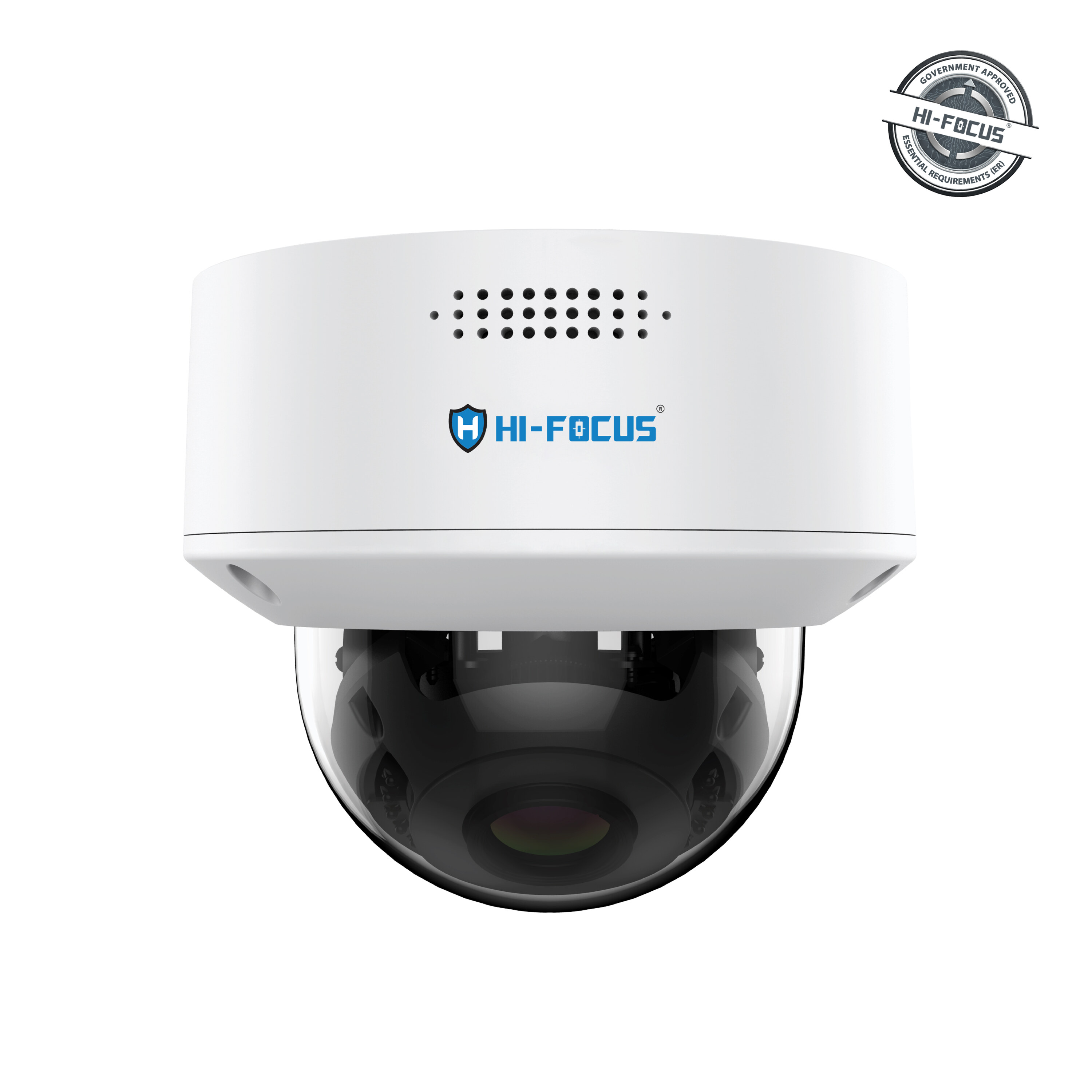

Hi Focus 5MP VANDAL DOME MVF NETWORK CAMERA — HC-IPC-DI3215DVZK-N5-O

🛡️ 2 Years Warranty

5MP Full HD Resolution: Delivers sharp 2592×1944 video at 30fps

Infrared Night Vision: Clear visibility up to 50 meters in total darkness

Lens: 2.7-13.5mm Motorized Varifocal Lens

Built-in Microphone: Capture real-time audio directly from the scene

Smart AI Detection: Supports human and vehicle classification

Face Capture Mode: For entry logging, identity verification,

or access control: or access control

Edge Storage: MicroSD/MicroSDHC/MicroSDXC supports, up to 512GB

Product details

HI FOCUS · PRIME SERIES

HC-IPC-DI3215DVZK-N5-O — 5MP VANDAL DOME MVF NETWORK CAMERA

🛡️ 2 Years Warranty

Exact official model data organised for clear comparison, project planning and installation.

Product overview

The HC-IPC-DI3215DVZK-N5-O is a Hi Focus 5mp vandal dome mvf network camera for homes, shops, offices, entrances, corridors, counters and professional IP-surveillance projects. Built with a rugged, vandal-resistant housing, it ensures durability and long-term performance. Ideal for commercial buildings, retail spaces, offices, and public areas, it offers a reliable and secure surveillance solution tailored for modern security needs

This listing is model-specific: the SKU, official image and technical source have been checked against the current HiFocus catalogue. Similar-looking suffix variants may use different sensors, channel limits, storage interfaces or analytics, so always order by the complete model number.

5MP Full HD Resolution

5MP Full HD Resolution – Delivers sharp 2592×1944 video at 30fps

Infrared Night Vision

Infrared Night Vision – Clear visibility up to 50 meters in total darkness

Lens

Lens – 2.7-13.5mm Motorized Varifocal Lens

Built-in Microphone

Built-in Microphone – Capture real-time audio directly from the scene

Smart AI Detection

Smart AI Detection – Supports human and vehicle classification

Face Capture Mode

Face Capture Mode – For entry logging, identity verification,

or access control

Edge Storage

Edge Storage – MicroSD/MicroSDHC/MicroSDXC supports, up to 512GB

Official technical highlights

5MP Full HD Resolution – Delivers sharp 2592×1944 video at 30fps	Infrared Night Vision – Clear visibility up to 50 meters in total darkness
Lens – 2.7-13.5mm Motorized Varifocal Lens	Built-in Microphone – Capture real-time audio directly from the scene
Smart AI Detection – Supports human and vehicle classification	Face Capture Mode – For entry logging, identity verification,
or access control	Edge Storage – MicroSD/MicroSDHC/MicroSDXC supports, up to 512GB
IP66 Weatherproof – Fully protected against dust and heavy rain	IK10 Vandal Resistance – Ideal for public or high-risk areas
5MP VANDAL DOME MVF NETWORK CAMERA	HC-IPC-DI3215DVZK-N5-O
Built with a rugged, vandal-resistant housing, it ensures	durability and long-term performance. Ideal for
commercial buildings, retail spaces, offices, and public	areas, it offers a reliable and secure surveillance solution
tailored for modern security needs	SYSTEM OVERVIEW
ABOUT HIFOCUS	WHAT IS HIT TECHNOLOGY ?
HIT (HI-FOCUS Integrated Trust) is a next-generation security	framework that strengthens surveillance systems with
advanced cyber security and intelligent design. By integrating	encrypted data transmission, secure device authentication,
and protected remote access, HIT ensures surveillance	systems remain secure, reliable, and trusted.
HI-FOCUS is a trusted leader in surveillance and networking solutions with more than a Decade of experience in	CCTV Industry. We deliver innovative, reliable, and high-performance security products designed to meet
global quality standards. Every HI-FOCUS product is engineered with precision and rigorously tested to ensure	superior performance and customer satisfaction.
Design and specifications are subject to change without notice. Visit	HiFocusCctv.com for the latest product information /specification.
SUPPORTS	SD CARD
UP TO 512GB	IP66
IK10	TWO WAY
AUDIO	BUILT IN
MIC5 MEGAPIXEL	1/2.7" STARVIS
SONY IMAGE	SENSOR 512 GB
5MP VANDAL DOME MVF NETWORK CAMERA HC-IPC-DI3215DVZK-N5-O	OSD Configuration MenuQuad Stream
Alarm IntegrationTwo-Way Audio	Advanced AI Features
Enabling the transmission of four independent	video streams simultaneously. Each stream can be
configured with different resolutions, frame rates,	and bitrates to optimize bandwidth usage and
performance based on application requirements	The intuitive OSD menu enables quick, precise
control of image and detection settings for	optimal performance in any environment.
Built-in two-way audio enables real-time	communication through the camera, allowing
users to listen and speak remotely for instant	response, guidance, or deterrence.
Equipped with Alarm Input and Alarm Output ports	for seamless integration with external security
and monitoring systems. Benefits of Automated threat	notification and Reduced manual monitoring
Human & Vehicle Classification – Smart detection with fewer false alarms	Tripwire & Double Tripwire – Detect directional line crossing
Object Abandon & Object Lost – Identify unattended or missing objects	Heatmap Analysis – Track activity density patterns
Loitering & Running Detection – Spot unusual behavior instantly	Parking Detection – Monitor unauthorized parking activity
People Counting & Crowd Detection – Measure footfall and crowd levels	Safety Helmet Detection – Ensure workplace safety compliance
Face Capture – Capture faces for identification and records	CAMERA
Image Sensor 1/2.7"Progressive Scan CMOS	Starvis Sony Image Sensor
Supported	8 regions
5 regions; 16×16/32×32/48×48/64×64	96×96
4 regions	Auto/Semi-auto/Manual/Sunny/
Natural light/Warm light/Sodium	lamp/Incandescent lamp/Locked
white balance WDR 120dB	Wave length 850nm
Focal Length	Aperture Range
DORI Distance	Optical Zoom
2.7-13.5mm	F1.6, Fixed
Aperture Type Motorized	Detect: 56m~240m
Observe: 22m~95m	Recognize: 11m~48m
Identify: 5.6m~24m	Field of View 102.9°-31.4°
S/N >39dB	Shutter Speed 1s-1/100000s
Day&Night IR-cut filter with auto switch (ICR)	Smart IR upto 50m
Minimum illumination Color: 0.002Lux@ (F1.6, AGC ON),	B/W: 0Lux with IR
AGC	3DNR
White Balance	ROI
OSD	Defog
Privacy Mask	BLC
HLC	Digital Zoom 16x
VIDEO	Video Compression Smart H.265/ H.265/H.264B/H.264M/
H.264H/Motion JPEG	Main Stream
PAL 25Fps: 5MP (2592×1944), 4MP	(2592×1520), 1440P (2560×1440), 3MP
(2304×1296), 50 Fps: 1080P (1920×1080)	,720P (1280×720) NTSC 30Fps: 5MP
(2592×1944), 4MP (2592×1520), 1440P	(2560×1440), 3MP (2304×1296), 60 Fps:
1080P (1920×1080),720P (1280×720)	Third Stream
PAL 25Fps: 1080P (1920×1080), 720P	(1280×720), 4CIF(704×576) NTSC
30Fps: 1080P (1920×1080), 720P	(1280×720), 4CIF(704×576)
Sub Stream	Fourth Stream
PAL 25Fps: 4CIF (704×576), 2CIF	(704×288), 640×360, CIF (352×288)
NTSC 30Fps: 4CIF (704×576), 2CIF	Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8kHz/32kHz/48kHz	2592×1944 @ 30fpsMax. Resolution
Video Bit Rate 32k-16Mbps	INTELLIGENT ANALYSIS
SECURITY	Basic Event
Human/Vehicle Classification,	Tripwire, Double Tripwire, Perimeter
Object Abandon, Object Lost,	Heatmap, Loitering, Running,
Parking, People Counting, Crowd,	Safety Helmet Detection,
On Duty Detection, Video Abnormal,	Audio Abnormal
Detect 32 faces, Capture up to 16	faces at the same scene
Supports human & vehicle	classification, Face Capture for
Smart Alerts	AES 256-bit Encryption,
Configuration encryption,	trusted execution, Digest,
security logs,account lockout,	syslog, video encryption,
IP/MAC filtering, HTTPS, trusted	upgrade,trusted boot
Face Recognize	Smart Detection
Cyber Security	CORE FEATURES
INTERFACE	1 RJ45 10M/ 100M self adaptive Ethernet portNetwork Interface
1channel in, 1channel outAudio	Built-in Micro SD card slot, up to 512 GB
RS-485	2channel in, 3mA, 3.3VDC, 1channel out, 1A, 24VDC
Built-in Mic	Alarm
Reset Button	On-Board Storage
Additional Interfaces	GENERAL
NETWORK	ANR Yes
System Compatibility	Remote Connection
Client	ONVIF Profile S/T/G/M, SDK, CGI, Milestone, RTMP
HF Prime VMS	Operating Temperature
Operating Humidity	Storage Temperature
40℃~65℃(-40℉~149℉)	≤95%RH
Storage Humidity 10%~95%RH(non-condensing)	Power Supply DC12V±25%, MAX 8W; POE 802.3at, MAX 9W
Ingress Protection Surge protection 4000V, ESD6000V, IP66, IK10	Vandal Resistance IP66 rated metal housing; IK10 vandal resistance
Boundary Dimensions 143(L)143(W)124(H)mm	Certification MTBF Certificate from STQC, EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance
report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252	Package Dimensions 250(L)180(W)175(H)mm
Gross Weight 1.16kg	Protocols HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, DHCP, DNS, DDNS, Easy DDNS, NTP, SMTP, SSL,
802.1X, QoS, IPv4, IPv6, PPPOE, Unicast, Multicast, RTCP, ARP, RTP, SRTP, RTSP, FTP, SFTP, NAS	Dimensions
123mm	128mm
4.5mm	143mm

Feature availability and performance limits are specific to this exact model. Manufacturer specifications can be revised without notice.

Buying and installation guidance

Confirm the required field of view, mounting height, night-light behaviour, audio requirement, cable route and recorder compatibility. Use quality cable and connectors, protect exposed joints from water, and test identification detail at the actual mounting distance before final handover.

Compatibility checklist

Match the complete SKU and suffix, not only the channel count or megapixel label.
Confirm camera, recorder, codec, resolution, bandwidth and power compatibility.
Plan storage from camera count, bitrate, frame rate, recording schedule and retention days.
Use surveillance-grade storage and installation materials suited to the environment.
Keep the purchase invoice and device serial number for warranty or service support.

Frequently asked questions

Is this the exact Hi Focus HC-IPC-DI3215DVZK-N5-O model?

Yes. The model number and product media were matched with HiFocus official catalogue sources before publication.

Does the displayed selling price include GST?

For priced items, the website selling price is GST-inclusive. The dealer price list supplied the SPP before GST, and the selling price was calculated using the approved GST and margin rule.

Are HDD, cable, power supply or installation included?

Only items explicitly shown in the order description are included. Storage drives, cabling, power accessories, mounting materials and installation are normally separate.

Can this model be mixed with another brand?

Cross-brand compatibility depends on the video standard, ONVIF profile, codec, resolution and supported functions. Confirm critical integrations before ordering.

What warranty applies?

This HiFocus product includes a 2 Years Warranty. Keep the original purchase invoice and device serial number for warranty service.

Technical references: official product page · official datasheet. Verify critical tender or project specifications against the latest manufacturer document before installation.

Additional information

Brand	Hi Focus
Model Number	HC-IPC-DI3215DVZK-N5-O
Product Type	IP Camera
Series	Prime
Resolution	5MP
Warranty	Manufacturer warranty as applicable

Hi Focus 5MP VANDAL DOME MVF NETWORK CAMERA | HC-IPC-DI3215DVZK-N5-O | 2 Years Warranty
